Overview

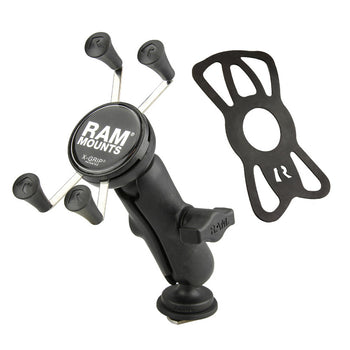

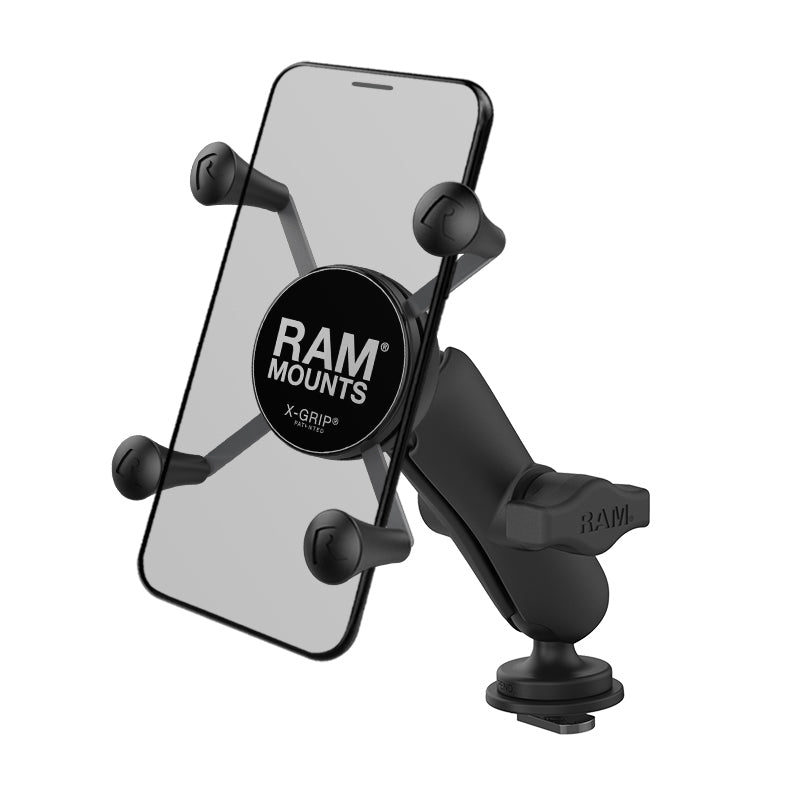

The RAP-HOL-UN7B-354-TRA1 consists of a Track Ball™ base, composite double socket arm and universal spring-loaded X-Grip® cradle for cell phones. This design features a 1" diameter rubber ball and socket system with adjustment points at both ends of the socket arm. The spring-loaded X-Grip® cradle expands and contracts, allowing for a seamless fit with your phone. The kit is the perfect complement to the modern and sleek interiors of today's vehicles, and is compatible with virtually any track system including the RAM Tough-Track™. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
holder dimensions:
Width Range: 1.875" - 3.25"
Depth Range: .875" max
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.5 lb
