Patented

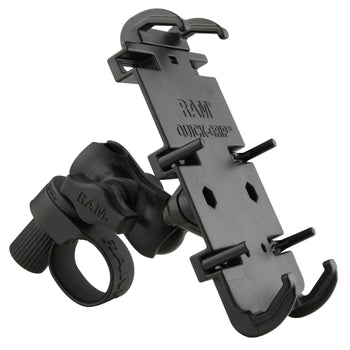

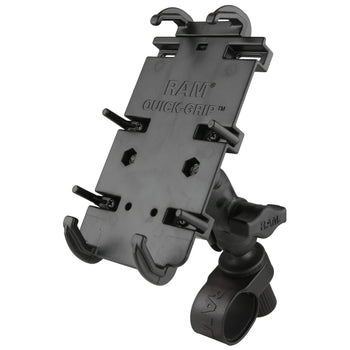

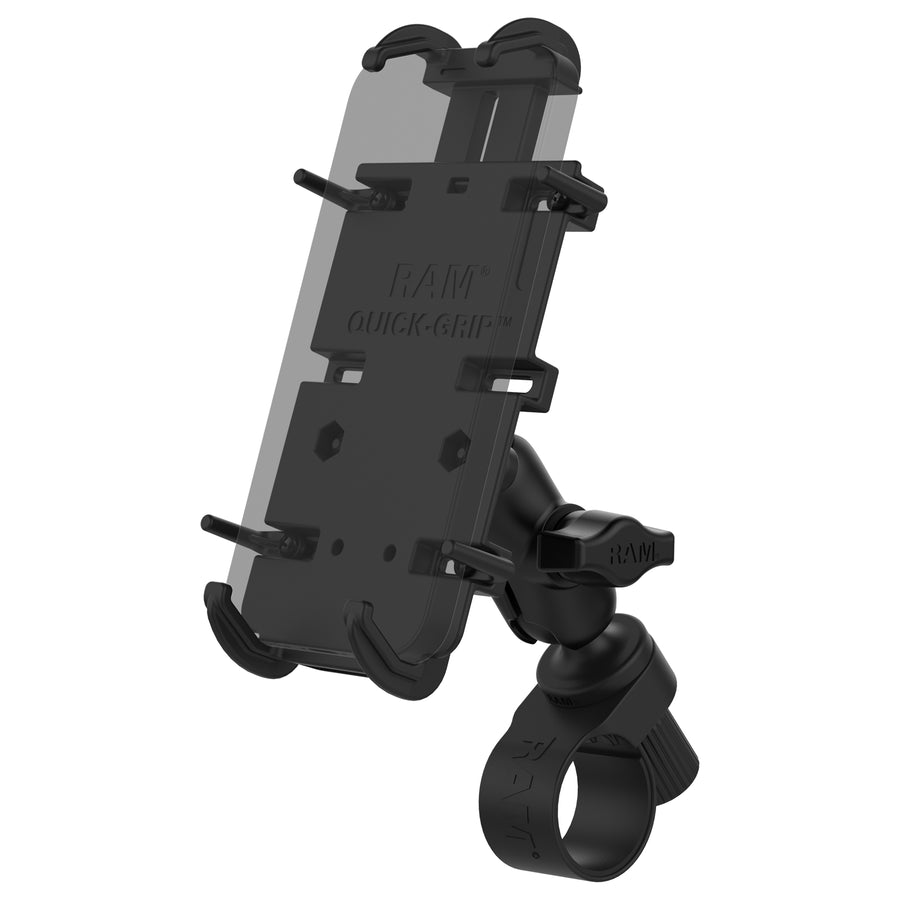

RAM® Quick-Grip™ XL Phone Mount with RAM® Tough-Strap™ Handlebar Base
Part#: RAP-B-460-A-PD4U
UPC: 793442027062
Ball Icon B Size
Arm Icon Short Arm
$64.49

Overview

The RAM® Tough-Strap™ is lowest profile rugged mounting solution for any bike or motorcycle handlebars. With two different size straps, easily install the RAM® Tough-Strap™ on any mountain bike, road bike or e-bike with a simple twist of a knob. This RAM® Tough-Strap™ Handlebar Mounting kit includes a short length RAM® B size socket arm and a RAM® Quick-Grip™ XL phone holder for large cellphones. The long strap is used for bar diameters ranging from 1.25"-1.38" while the short strap is used for diameters ranging from 0.875"-1". Utilize the extra rubber strip to cut down to the diameter range of 1"-1.125" for a more custom fit. Take the RAM® Tough-Strap™ on your next adventure on and off the road.

Features

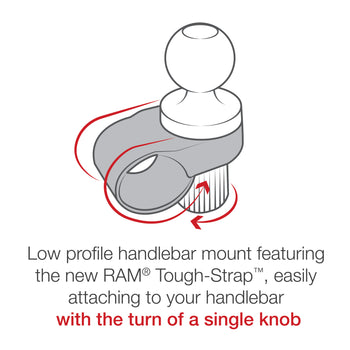

  • Low profile handlebar mount for large size phones includes the new RAM® Tough-Strap™ and RAM® Quick-Grip™ XL, easily attaching to your handlebar with the turn of a single knob; includes two different strap sizes for handlebars ranging from 0.875"-1", 1"-1.25" and 1.25"-1.38"
  • Ideal handlebar phone mount for all bike types, including mountain bikes, road bikes and e-bikes

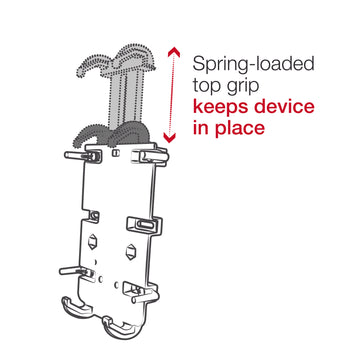

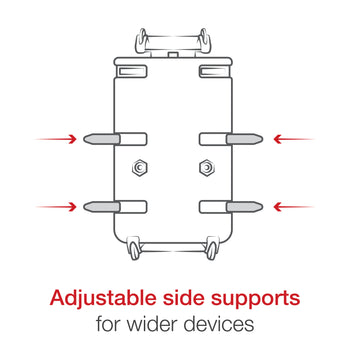

  • Kit includes a short length RAM® B size socket arm, B size ball base, and spring-loaded RAM® Quick-Grip™ XL phone holder featuring adjustable side supports that provide a secure fit for a variety of large size phones and other devices with and without a case; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware
(1) #10-24 x 2.5" Hex Bolt
(1) Long Strap
(1) Short Strap
(1) Long Rubber Strip
(1) Short Rubber Strip
(1) Tightening Knob

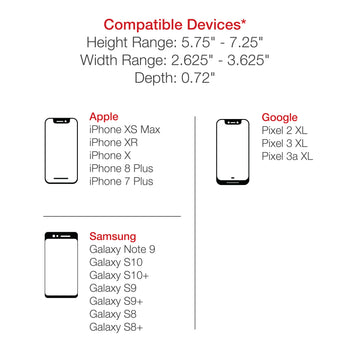

holder dimensions:

Height Range: 5.75" - 7.25"
Width Range: 2.625" - 3.625"
Max Depth: .72"

clamp range:

0.875" - 1.38"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.7 lb

Additional Information:

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

Print

Instructions

RAM® Tough-Strap™ Assembly Guide

Documents

Bicycle Catalog
Off Road Catalog

Questions & Answers

Have a Question?

Ask a Question

  • Does this mount Part#: RAP-B-460-A-PD4U BLOCK my camera lenses if I wanted to video while riding my bike ?? iPhone 13 Pro Max

    The backing of this mount will block the 3rd camera on the iPhone 13 pro max.

  • Does this mount BLOCK my camera lenses if I want to record ?? IPHONE 13 pro max

    The backing of this mount will block the 3rd camera on the iPhone 13 pro max.
