Patent Pending

RAM® Tough-Claw™ Small Clamp Mount with Composite Diamond Plate

Part#: RAP-B-400-238U
UPC: 793442944871

Kit Components

Previous Slide Next Slide
$58.99

Overview

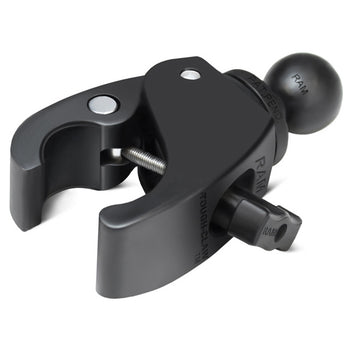

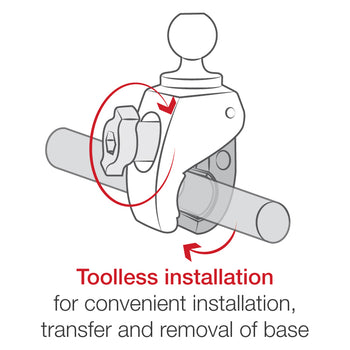

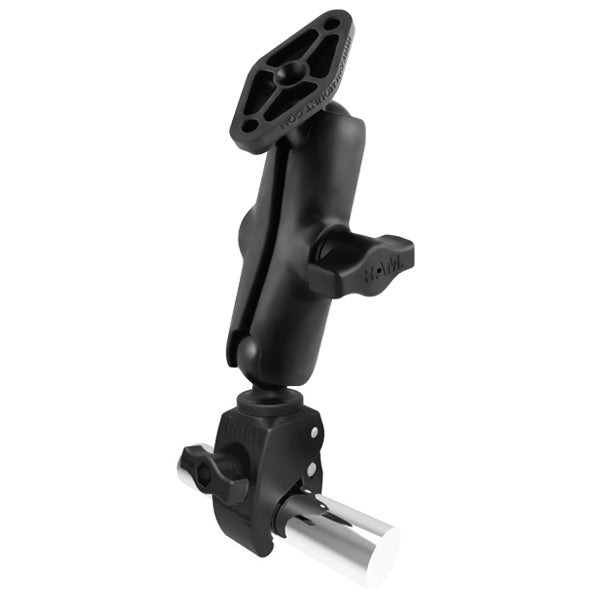

The RAP-B-400-238U consists of the small Tough-Claw™ base, composite double socket arm and diamond base adapter. The RAM® Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.14" outer diameter. The diamond base adapter contains the industry standard universal 2-Hole AMPS hole pattern, which will connect to a large variety of RAM® Mount and third party cradles. The mount is designed with a RAM® 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles.

Features

  • Includes small version of the RAM® Tough-Claw™ and medium length B size RAM® double socket arm with diamond plate features industry-standard AMPS pattern and measures 2.43" x 1.31"
  • Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

clamp range:

.625" - 1.14" diameter

socket to socket length:

3"

hole pattern:

2-Hole AMPS: 1.912"

plate size:

2.43" x 1.31"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.58 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Tough-Claw™ Small Clamp Mount with Composite Diamond Plate
$58.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
