RAM® Tough-Ball™ with 1/4"-20 x .50" Threaded Stud and Lock Washer
Part #: RAP-B-379U-252050-SLW UPC: 793442018282 Features Includes RAM® Tough-Ball™ with 1/4"-20 x .50" threaded stud and split lock washer Compatible with B size RAM® double socket arms; ball and socket technology allows for near-infinite adjustability Backed by a lifetime warranty

Product Information

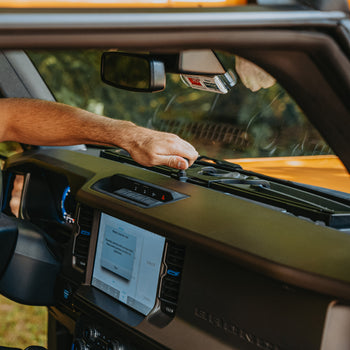

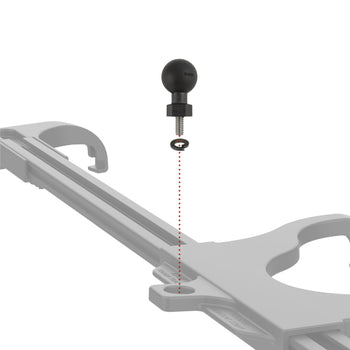

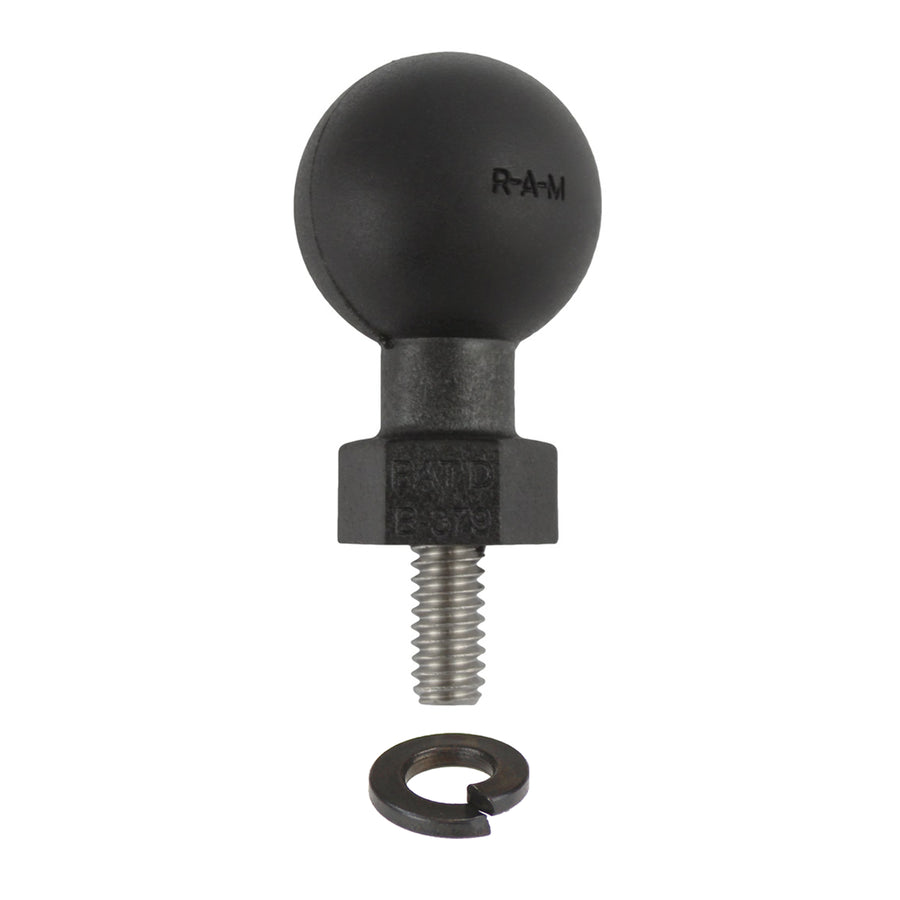

Overview	The RAM® Tough-Ball™ with 1/4"-20 x .50" Threaded Stud and Lock Washer (RAP-B-379U-252050-SLW) is a 1" diameter rubber ball connected to a 1/4"-20 X .50" male threaded post. The included split lock washer ensures a secure connection in rugged environments when the RAM® Tough-Ball™ is used as an anchor point for a mounting system, like the RAM® Tough-Track™ for '21-'23 Ford Bronco.

Specifications
hardware included	(1) 1/4" Split-Lock Washer
thread pitch	1/4"-20 x .5"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite Stainless steel threads
packaging type	Poly Bag
Weight	0.08 lb

RAM® Tough-Ball™ with 1/4"-20 x .50" Threaded Stud and Lock Washer

Questions about our products? Email us for support.

RAM® Tough-Ball™ with 1/4"-20 x .50" Threaded Stud and Lock Washer

Part#: RAP-B-379U-252050-SLW

UPC: 793442018282

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$11.49

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

The RAM® Tough-Ball™ with 1/4"-20 x .50" Threaded Stud and Lock Washer (RAP-B-379U-252050-SLW) is a 1" diameter rubber ball connected to a 1/4"-20 X .50" male threaded post. The included split lock washer ensures a secure connection in rugged environments when the RAM® Tough-Ball™ is used as an anchor point for a mounting system, like the RAM® Tough-Track™ for '21-'23 Ford Bronco.

Features

Includes RAM® Tough-Ball™ with 1/4"-20 x .50" threaded stud and split lock washer
Compatible with B size RAM® double socket arms; ball and socket technology allows for near-infinite adjustability
Backed by a lifetime warranty
