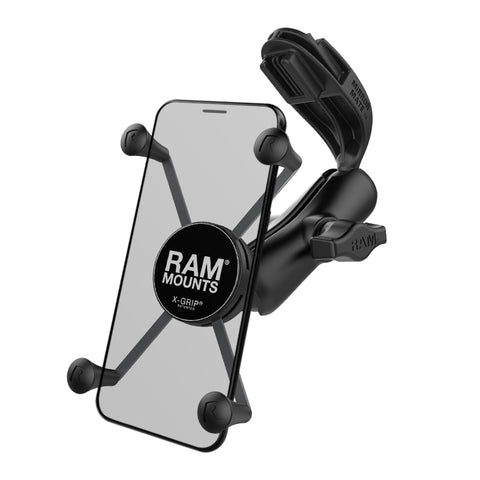

RAM® X-Grip™ Large Phone Mount with RAM® Mirror-Mate™ for GM Vehicles

rammount.com
1-800-497-7479
sales@rammount.com

RAM® X-Grip™ Large Phone Mount with RAM® Mirror-Mate™ for GM Vehicles
Part #: RAP-B-369B-UN10BU UPC: 793442926310 Patented Features Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use Includes RAM® Mirror-Mate™ base ideal for GM vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments Backed by a lifetime warranty

Part #: RAP-B-369B-UN10BU UPC: 793442926310 Patented

Features

Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
Includes RAM® Mirror-Mate™ base ideal for GM vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® X-Grip™ Large Phone Mount with RAM® Mirror-Mate™ for GM Vehicles

Product Information

Specifications

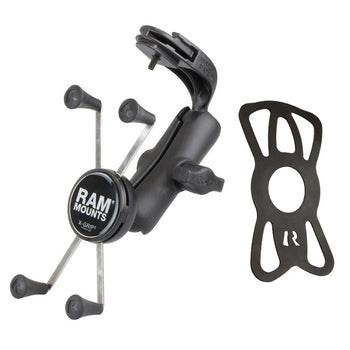

hardware included	(1) Optional Tether (1) Glue Tube for Rubber Caps

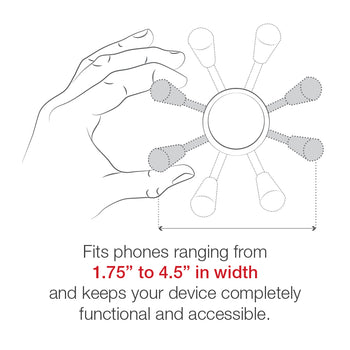

holder dimensions	Width Range: 1.75" - 4.5" Depth Range: .875" max
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite Stainless steel
packaging type	Poly Bag
Weight	0.5 lb

Questions about our products? Email us for support.

Patented

RAM® X-Grip™ Large Phone Mount with RAM® Mirror-Mate™ for GM Vehicles

Part#: RAP-B-369B-UN10BU

UPC: 793442926310

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$74.49

Options

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Features

Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
Includes RAM® Mirror-Mate™ base ideal for GM vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(1) Optional Tether
(1) Glue Tube for Rubber Caps

holder dimensions:

Width Range: 1.75" - 4.5"
Depth Range: .875" max

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite
Stainless steel

packaging type:

Poly Bag

Weight:

0.5 lb

Print

Instructions

RAM® X-Grip® Assembly Guide

Add-on & Accessories

RAM® X-Grip® Caps

RAP-UN-CAP-4U:RAP-UN-CAP-4U_1:RAM X-Grip Rubber Cap 4-Pack Replacement

RAM® X-Grip® Rubber Cap 4-Pack Replacement RAP-UN-CAP-4U $7.49

RAP-UN-CAP-4-REDU:RAP-UN-CAP-4-REDU_1:RAM X-Grip Red Rubber Cap 4-Pack

RAM® X-Grip® Red Rubber Cap 4-Pack RAP-UN-CAP-4-REDU $7.99

RAP-UN-CAP-4-BLUEU:RAP-UN-CAP-4-BLUEU_1:RAM X-Grip Blue Rubber Cap 4-Pack

RAM® X-Grip® Blue Rubber Cap 4-Pack RAP-UN-CAP-4-BLUEU $7.99
