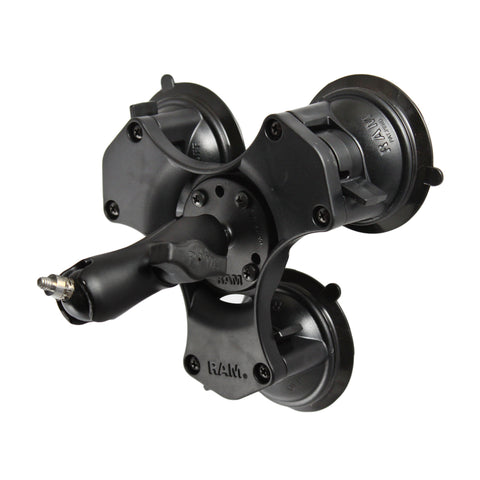

RAM® Twist-Lock™ Triple Suction Mount with 1/4"-20 Stud
Part #: RAP-B-365-224-237U UPC: 793442927522 Patented

Product Information
Overview	The RAP-B-365-224-237U consists of a triple suction cup base, standard length double socket arm and 1" Ball with 1/4"-20 male threaded post. The triple suction cup base is designed to have an extra strong hold on any smooth, non-porous surface. For best results mount the suction cup on glass or non-porous plastic surface. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

Product Information

Overview

The RAP-B-365-224-237U consists of a triple suction cup base, standard length double socket arm and 1" Ball with 1/4"-20 male threaded post. The triple suction cup base is designed to have an extra strong hold on any smooth, non-porous surface. For best results mount the suction cup on glass or non-porous plastic surface. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

Specifications
hardware included	Assembly Hardware
suction size	(3) 3.3" Diameter Bases, Total Width 7.95"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.18 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

RAM® Twist-Lock™ Triple Suction Mount with 1/4"-20 Stud

Questions about our products? Email us for support.

Patented

RAM® Twist-Lock™ Triple Suction Mount with 1/4"-20 Stud

Part#: RAP-B-365-224-237U

UPC: 793442927522

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
