Patented & Pats. Pend.

RAM® Twist-Lock™ Low-Profile Suction Mount for Garmin Oregon + More

Part#: RAP-B-166-2-GA31
UPC: 793442931680

Compatibility

Garmin

Approach G5 Oregon 200 Oregon 300 Oregon 400c, 400i, 400t Oregon 450, 450t Oregon 550, 550t Oregon 600, 600t Oregon 650, 650t

Kit Components

Previous Slide Next Slide
$46.49

Overview

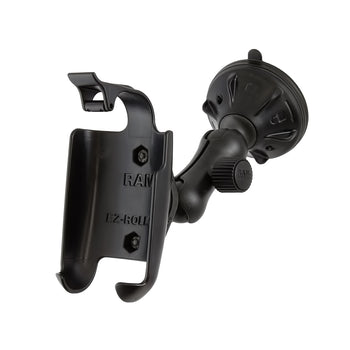

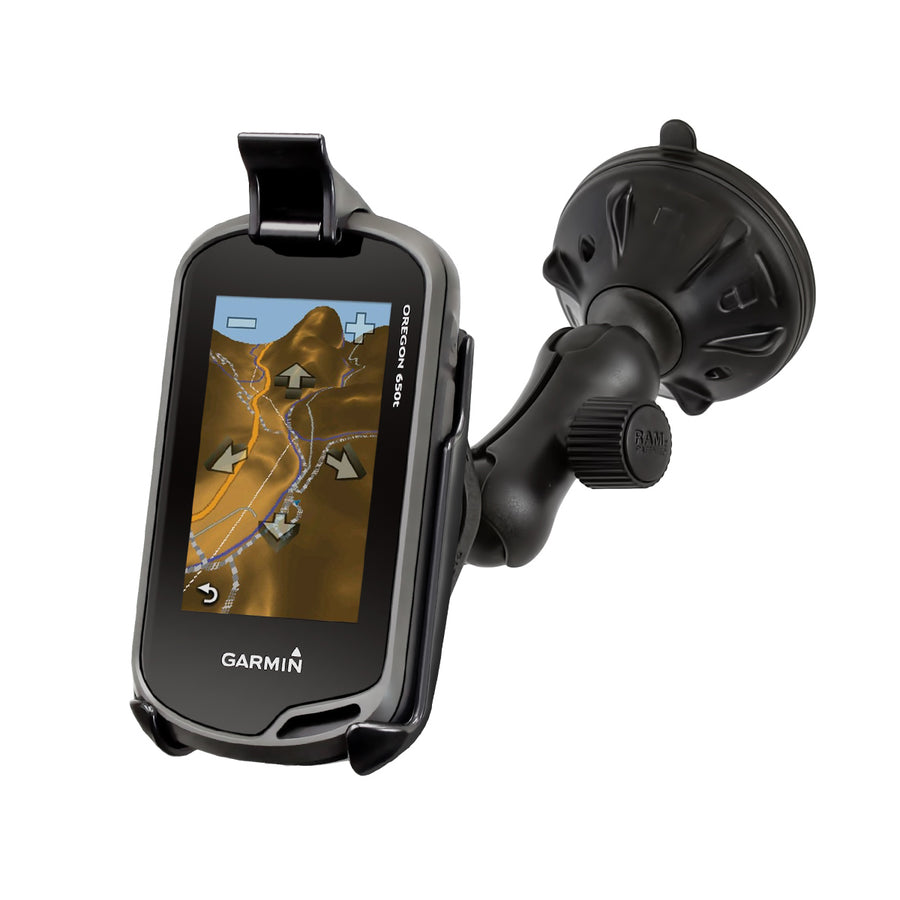

The RAP-B-166-2-GA31 consists of a 2.75" twist lock suction cup base, double socket arm and high strength composite cradle. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the mount to your optimum viewing position.

hardware included:

Assembly Hardware

suction size:

2.75" Diameter

socket to socket length:

2.1"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Retail Bag

Weight:

0.5 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Twist-Lock™ Low-Profile Suction Mount for Garmin Oregon + More
$46.49

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
