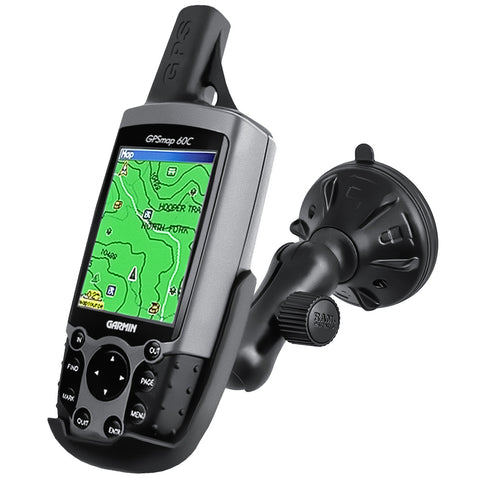

RAM® Twist-Lock™ Low-Profile Suction Mount for Garmin GPS 60 + More
Part #: RAP-B-166-2-GA12U UPC: 793442921513 Patented

Product Information

Overview

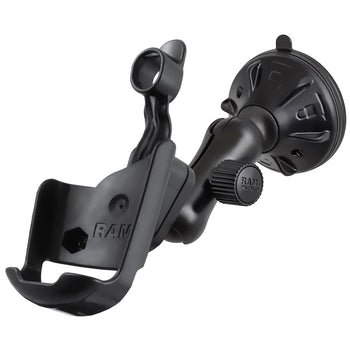

The RAP-B-166-2-GA12U consists of a 2.75" twist lock suction cup base, double socket arm and high strength composite cradle. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the mount to your optimum viewing position.

Specifications
hardware included	Assembly Hardware
suction size	2.75" Diameter
socket to socket length	2.1"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.5 lb
Additional Information	This mount requires the standard belt clip button which is included with the purchase of the GPS unit from Garmin.

Patented

RAM® Twist-Lock™ Low-Profile Suction Mount for Garmin GPS 60 + More

Name: RAM® Twist-Lock™ Low-Profile Suction Mount for Garmin GPS 60 + More
Brand: RAM Mounts
SKU: RAP-B-166-2-GA12U
Price: 39.49 USD
Availability: InStock

Part#: RAP-B-166-2-GA12U

UPC: 793442921513

$39.49

Options

Overview

hardware included:

Assembly Hardware

suction size:

2.75" Diameter

socket to socket length:

2.1"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.5 lb

Additional Information:

This mount requires the standard belt clip button which is included with the purchase of the GPS unit from Garmin.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

RAM® Twist-Lock™ Low-Profile Suction Mount for Garmin GPS 60 + More

$39.49

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size	Ball Diameter	Max Load*	Best For
A	0.56" (14.3 mm)	0.5 lb	Action cameras and other ultra-light devices
B — this product	1" (25.4 mm)	2 lbs	Phones, GPS units, and small tablets — the most common size
C	1.5" (38.1 mm)	4 lbs	Large tablets, fish finders, and rougher rides
D	2.25" (57.2 mm)	6 lbs	Rugged tablets, laptops, and heavy equipment
E	3.38" (85.9 mm)	15 lbs	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
