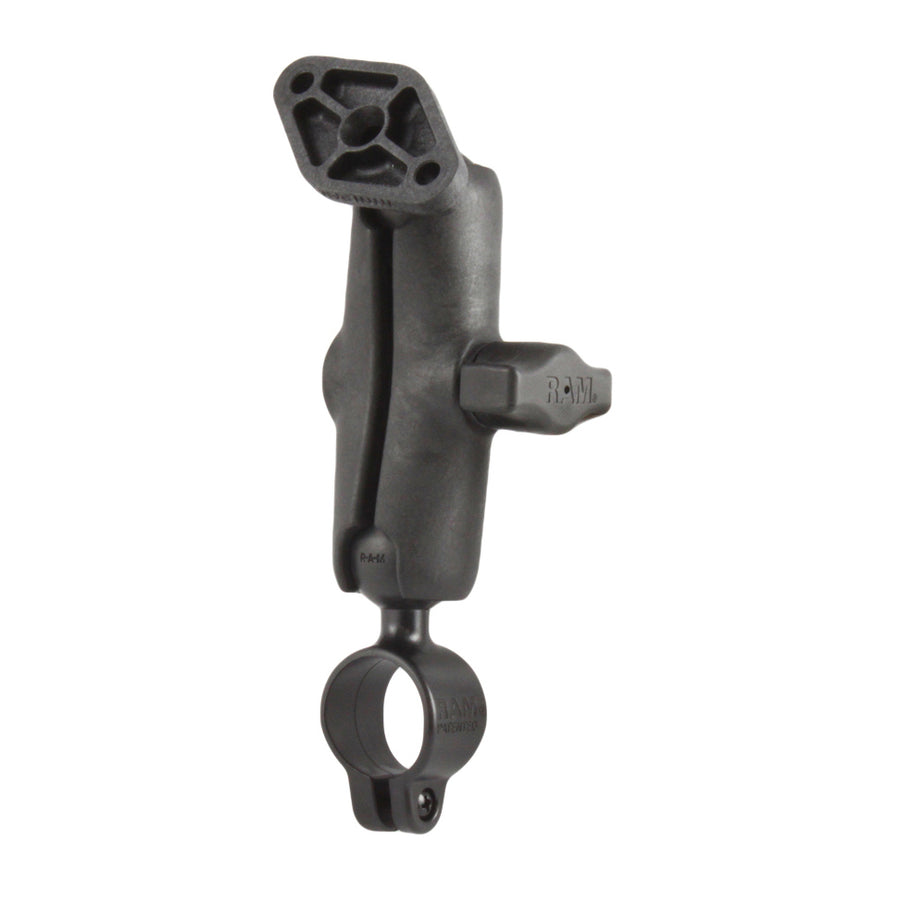

RAM® High-Strength Composite Double Ball 1" Rail Mount
Part #: RAP-B-149U UPC: 793442849008

Product Information
Overview	The RAM high strength composite rail mount consists of the 1" diameter ball and socket system with universal diamond base. The rail base is designed to sit at right angles to the mounting rail and will accommodate rails up to 1" in diameter. Adjustment points at both socket ends allow for almost infinite adjustment and perfect viewing angles. High quality materials insure your device is safe, secure, and within easy reach.

Product Information

Overview

The RAM high strength composite rail mount consists of the 1" diameter ball and socket system with universal diamond base. The rail base is designed to sit at right angles to the mounting rail and will accommodate rails up to 1" in diameter. Adjustment points at both socket ends allow for almost infinite adjustment and perfect viewing angles. High quality materials insure your device is safe, secure, and within easy reach.

Specifications
hardware included	(1) #6-32 x 5/8" Machine Screw (1) #6-32 Nylock Nut
clamp range	1" diameter
socket to socket length	3"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.33 lb

RAM® High-Strength Composite Double Ball 1" Rail Mount

Part#: RAP-B-149U

UPC: 793442849008

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
