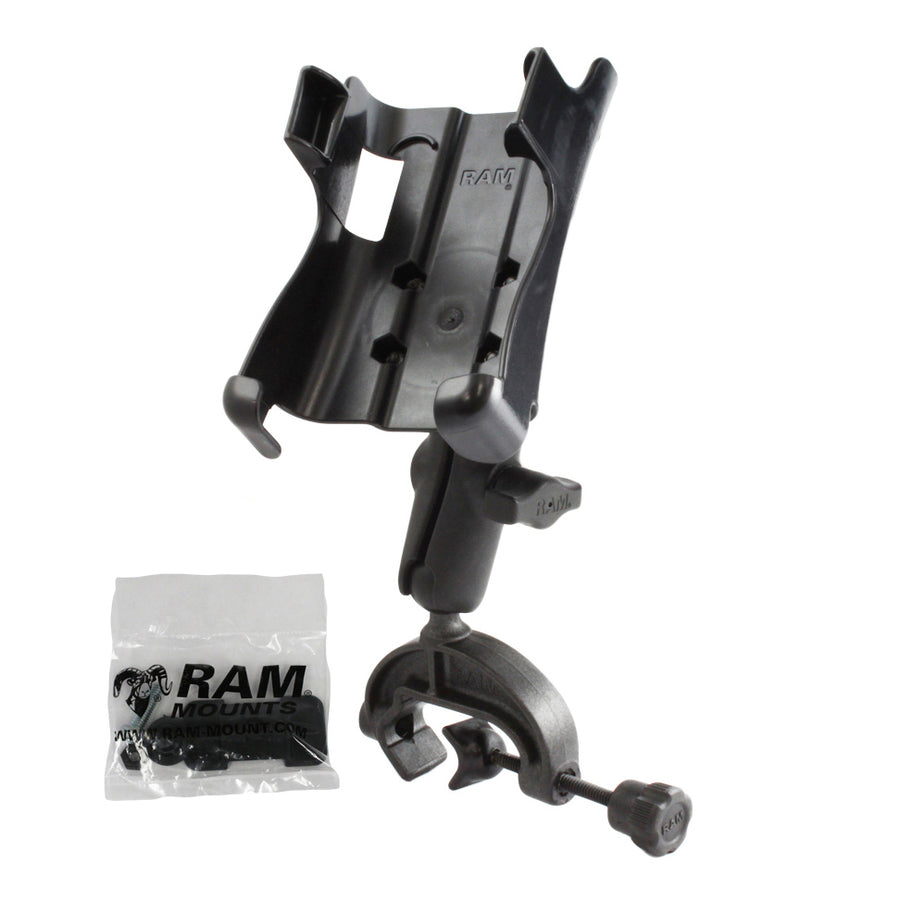

RAM® Composite Yoke Clamp Mount for Trimble TDS Recon
Part #: RAP-B-121-TD1U UPC: 793442923623 Patented

Product Information
Overview	RAM Composite Clamp Mount for the TDS Recon. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality composite materials insure your TDS Recon is safe, secure, and within easy reach. The clamp base fits a rail or edge lip from 0.625" to a maximum of 1.25". The mounting base can also accept a second ball giving you the ultimate double ball base. Extra ball not included with purchase of this mount.

Product Information

Overview

RAM Composite Clamp Mount for the TDS Recon. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality composite materials insure your TDS Recon is safe, secure, and within easy reach. The clamp base fits a rail or edge lip from 0.625" to a maximum of 1.25". The mounting base can also accept a second ball giving you the ultimate double ball base. Extra ball not included with purchase of this mount.

Specifications
hardware included	Assembly Hardware Flat Clamp Hardware Adapter
clamp range	.625" - 1.25"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.88 lb

RAM® Composite Yoke Clamp Mount for Trimble TDS Recon

Questions about our products? Email us for support.

Patented

RAM® Composite Yoke Clamp Mount for Trimble TDS Recon

Part#: RAP-B-121-TD1U

UPC: 793442923623

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$61.49
