RAM® Twist-Lock™ Suction Mount for Garmin eTrex Legend & Vista + More
Part #: RAP-B-104-224-GA16U UPC: 793442908668 Patented

Product Information

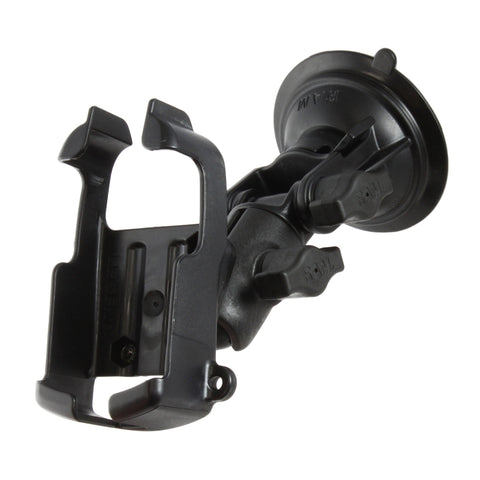

Overview	The RAP-B-104-224-GA16U consists of a patented twist lock suction cup base, swivel ratchet arm and custom high strength composite cradle for the Garmin eTrex. Once the suction base is securely mounted, you can move the cradle to your optimum viewing position with a simple bend of the arm. The suction cup base is designed to have an extra strong hold on any smooth non-porous surface. For best results mount the suction cup to glass or non-porous plastic surfaces.

Product Information

Overview

The RAP-B-104-224-GA16U consists of a patented twist lock suction cup base, swivel ratchet arm and custom high strength composite cradle for the Garmin eTrex. Once the suction base is securely mounted, you can move the cradle to your optimum viewing position with a simple bend of the arm. The suction cup base is designed to have an extra strong hold on any smooth non-porous surface. For best results mount the suction cup to glass or non-porous plastic surfaces.

Specifications
hardware included	Assembly Hardware
suction size	3.3" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.61 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

RAM® Twist-Lock™ Suction Mount for Garmin eTrex Legend & Vista + More

Questions about our products? Email us for support.

Patented

RAM® Twist-Lock™ Suction Mount for Garmin eTrex Legend & Vista + More

Part#: RAP-B-104-224-GA16U

UPC: 793442908668

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$45.49
