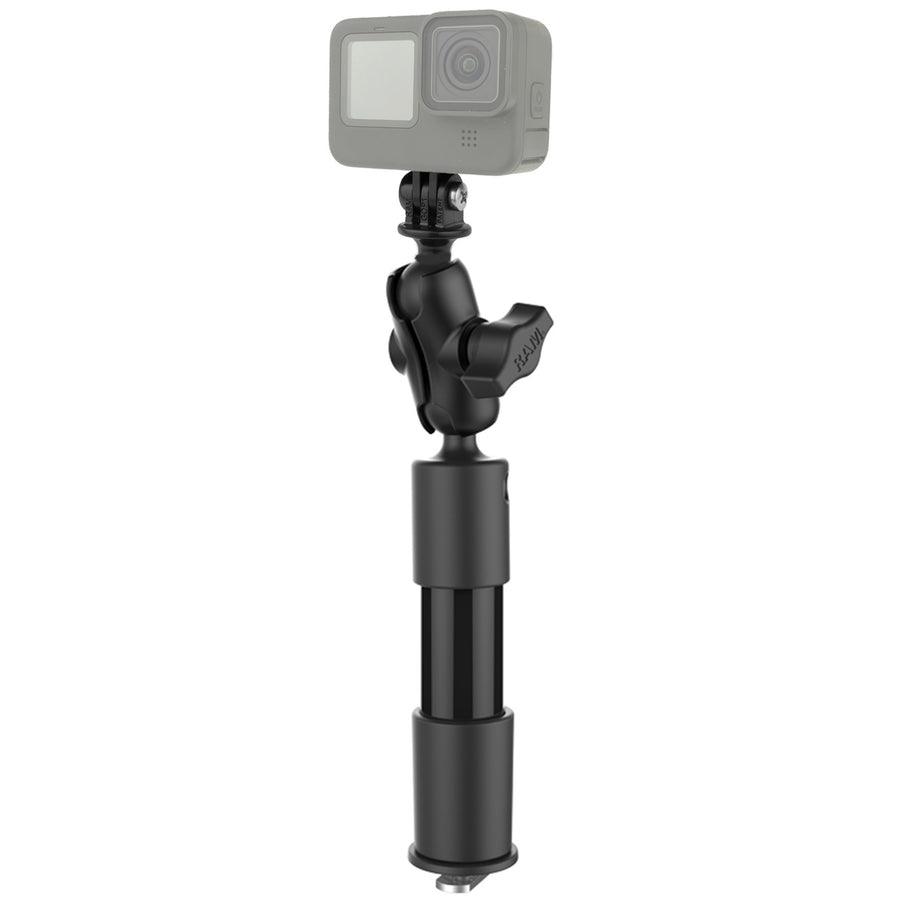

RAM® Tough-Pole™ 9" Action Camera Track Mount
Part #: RAP-425-4-A-GOP1 UPC: 793442955044 Patent Pending

Product Information
Overview	Get the perfect shot from your action camera when you're out on the water with the Tough-Pole™ Track Mount system. The included 4” Extension Pole makes for an ideal low profile mount while properly elevated from your kayak. The double socket arm at the top allows you to articulate your action camera to virtually any angle and direction. Any action camera with a two-pronged attachment – including GoPro – will work with the RAM Action Camera Adapter, and the Track Base is compatible with the RAM Tough-Track™.

Product Information

Overview

Get the perfect shot from your action camera when you're out on the water with the Tough-Pole™ Track Mount system. The included 4” Extension Pole makes for an ideal low profile mount while properly elevated from your kayak. The double socket arm at the top allows you to articulate your action camera to virtually any angle and direction. Any action camera with a two-pronged attachment – including GoPro – will work with the RAM Action Camera Adapter, and the Track Base is compatible with the RAM Tough-Track™.

Specifications
hardware included	Assembly Hardware (2) 1/4"-20 x 7/8" T-Bolts (2) 1/4"-20 Knobs
product dimensions	Overall Height: 9" Pipe Diameter: 1.1" OD
t bolt dimensions	.48" x .95"
socket to socket length	Short Arm: 1.75"
ball size	B Size (1")
weight capacity	.5 lb
materials	High strength composite
packaging type	Retail Bag
Weight	0.47 lb

RAM® Tough-Pole™ 9" Action Camera Track Mount

Questions about our products? Email us for support.

Patent Pending

RAM® Tough-Pole™ 9" Action Camera Track Mount

Part#: RAP-425-4-A-GOP1

UPC: 793442955044

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

GoPro

Hero

Session

Garmin

Virb

SJCAM

SJ4000

SJ5000X Elite 4K

Muvi

veho K-Series K-2 Pro 4K

Xcel

1080C

Vivitar

ACTIVEON

CX Gold

Discovery

Kids Photo & Video Adventure Camera

AEE

ACE S70 Black 16MP 2"

AKASO

EK7000 4K WIFI Sports

AEDILYS

4K WIFI Sports

Lightdow

LD4000 1080P HD

WiMiUS

Q2 Black 1080P Wifi

Vtin

WiFi

$51.99
