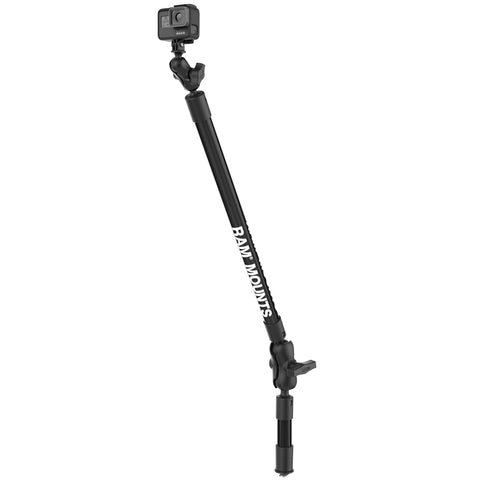

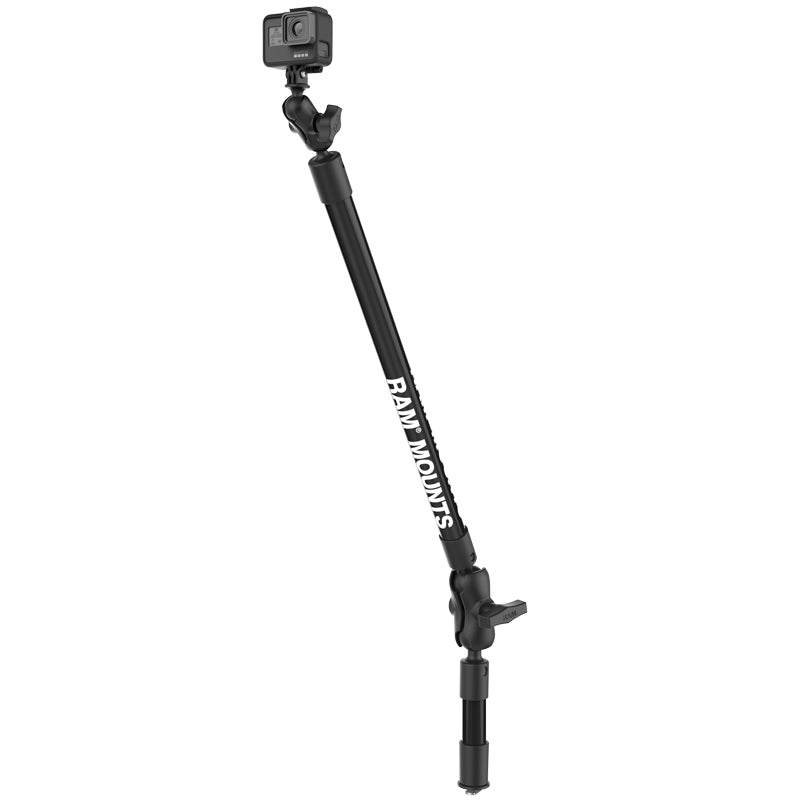

RAM® Tough-Pole™ 33" Action Camera Track Mount | |
---|---|
Part #:
RAP-425-4-18-A-GOP1
UPC:
793442955037
Patent Pending
|
![]() |
Product Information | |
---|---|

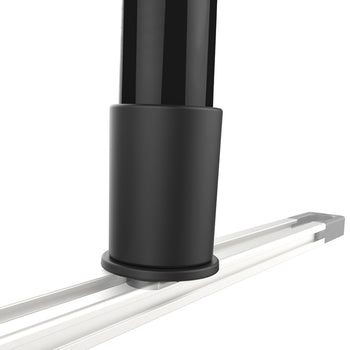

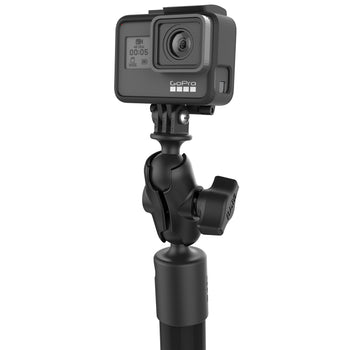

Overview | Get the perfect shot from your action camera when you're out on the water with the Tough-Pole™ Track Mount system. The included 4" and 18” Extension Poles (overall length 33") gives you the ideal elevation and articulation while securely mounted to your kayak. The double socket arm at the top allows you to articulate your action camera to virtually any angle and direction. Any action camera with a two-pronged attachment – including GoPro – will work with the RAM Action Camera Adapter, and the Track Base is compatible with the RAM Tough-Track™. |
Specifications | |
---|---|
hardware included | Assembly Hardware (2) 1/4"-20 x 7/8" T-Bolts (2) 1/4"-20 Knobs |
product dimensions | Overall Height: 33" |
t bolt dimensions | .48" x .95" |
socket to socket length | Short Arm: 1.75" |
ball size | B Size (1") |
weight capacity | .5 lb |
materials | High strength composite |
packaging type | Retail Bag |
Weight | 1.84 lb |

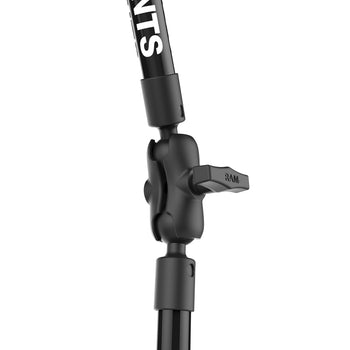

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
GoPro
Hero
Session
Garmin
Virb
SJCAM
SJ4000
SJ5000X Elite 4K
Muvi
veho K-Series K-2 Pro 4K
Xcel
1080C
Vivitar
HD
ACTIVEON
CX Gold
Discovery
Kids Photo & Video Adventure Camera
AEE
ACE S70 Black 16MP 2"
AKASO
EK7000 4K WIFI Sports
AEDILYS
4K WIFI Sports
Lightdow
LD4000 1080P HD
WiMiUS
Q2 Black 1080P Wifi
Vtin
4k
WiFi

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
GoPro
Hero
Session
Garmin
Virb
SJCAM
SJ4000
SJ5000X Elite 4K
Muvi
veho K-Series K-2 Pro 4K
Xcel
1080C
Vivitar
HD
ACTIVEON
CX Gold
Discovery
Kids Photo & Video Adventure Camera
AEE
ACE S70 Black 16MP 2"
AKASO
EK7000 4K WIFI Sports
AEDILYS
4K WIFI Sports
Lightdow
LD4000 1080P HD
WiMiUS
Q2 Black 1080P Wifi
Vtin
4k
WiFi

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAP-425-4-18-A-GOP1!
We'll email you once the item is available.
Overview
Get the perfect shot from your action camera when you're out on the water with the Tough-Pole™ Track Mount system. The included 4" and 18” Extension Poles (overall length 33") gives you the ideal elevation and articulation while securely mounted to your kayak. The double socket arm at the top allows you to articulate your action camera to virtually any angle and direction. Any action camera with a two-pronged attachment – including GoPro – will work with the RAM Action Camera Adapter, and the Track Base is compatible with the RAM Tough-Track™.
hardware included:
Assembly Hardware
(2) 1/4"-20 x 7/8" T-Bolts
(2) 1/4"-20 Knobs
product dimensions:
Overall Height: 33"
t bolt dimensions:
.48" x .95"
socket to socket length:
Short Arm: 1.75"
ball size:
B Size (1")
weight capacity:
.5 lb
materials:
High strength composite
packaging type:
Retail Bag
Weight:
1.84 lb
