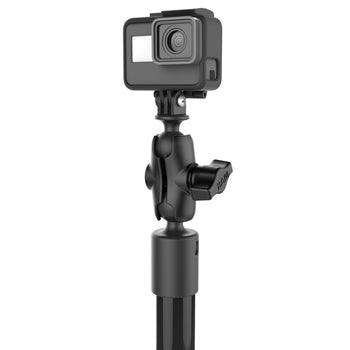

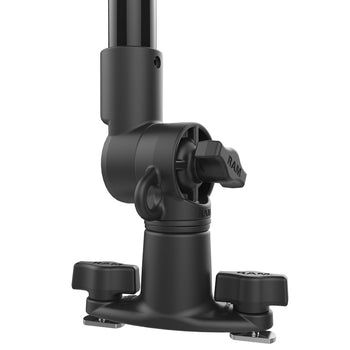

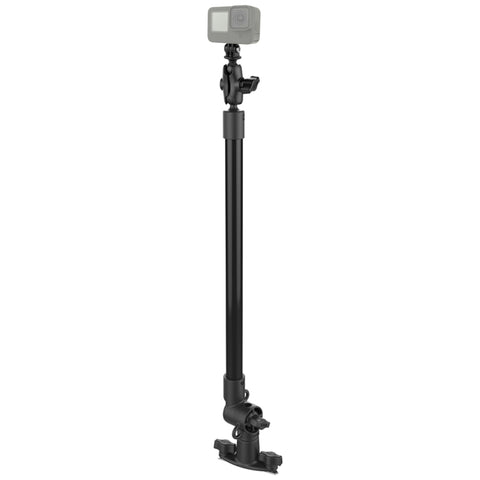

RAM^® Tough-Pole^™ 24" Action Camera Mount with Single Pipe & Track Base
Part #: RAP-422-18-A-GOP1 UPC: 793442953538 Patented & Pats. Pend.

Product Information
Overview	Get the perfect shot from your action camera when you're out on the water with this Adjustable Track Mount kit. The included 18” Extension Pole (overall length 24") makes it an ideal solution for the front of your kayak, while the Ratchet Attachment provides your action camera with various adjustment angles. Without adjusting any knobs, the 360 degree swivel feature allows you to quickly change camera angles as you reel in your catch of the day. Any action camera with a two-pronged attachment – including GoPro – will work with the RAM Action Camera Adapter, and the Track Base is compatible with the RAM Tough-Track^™.

Product Information

Overview

Get the perfect shot from your action camera when you're out on the water with this Adjustable Track Mount kit. The included 18” Extension Pole (overall length 24") makes it an ideal solution for the front of your kayak, while the Ratchet Attachment provides your action camera with various adjustment angles. Without adjusting any knobs, the 360 degree swivel feature allows you to quickly change camera angles as you reel in your catch of the day. Any action camera with a two-pronged attachment – including GoPro – will work with the RAM Action Camera Adapter, and the Track Base is compatible with the RAM Tough-Track^™.

Specifications
hardware included	Assembly Hardware (2) 1/4"-20 x 7/8" T-Bolts (2) 1/4"-20 Knobs
product dimensions	Overall Height: 24"
t bolt dimensions	.48" x .95"
socket to socket length	Short Arm: 1.75"
hole pattern	3.5"
ball size	B Size (1")
weight capacity	.5 lb
materials	High strength composite
packaging type	Retail Bag
Weight	1.43 lb

RAM<sup>®</sup> Tough-Pole<sup>™</sup> 24" Action Camera Mount with Single Pipe & Track Base

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM^® Tough-Pole^™ 24" Action Camera Mount with Single Pipe & Track Base

Part#: RAP-422-18-A-GOP1

UPC: 793442953538

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$78.49

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
