RAM® Tough-Claw™ with Ratchet Extension Arm and Double Ball Mount
Part #: RAP-418-400-PA-202U UPC: 793442953415 Patented & Pats. Pend.

Product Information

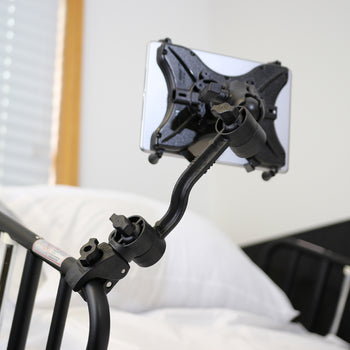

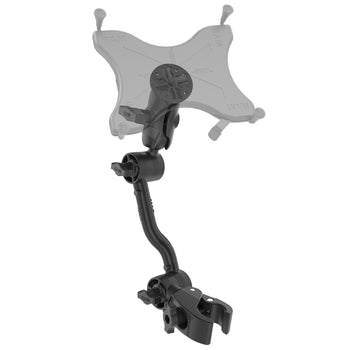

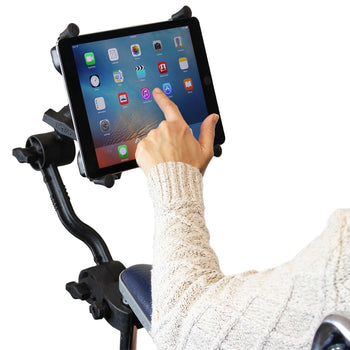

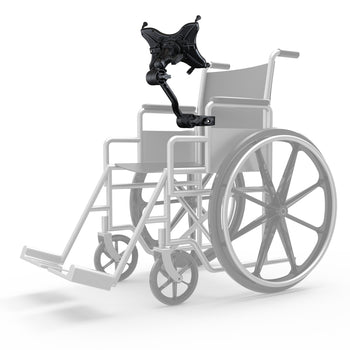

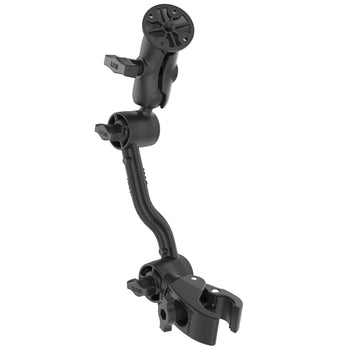

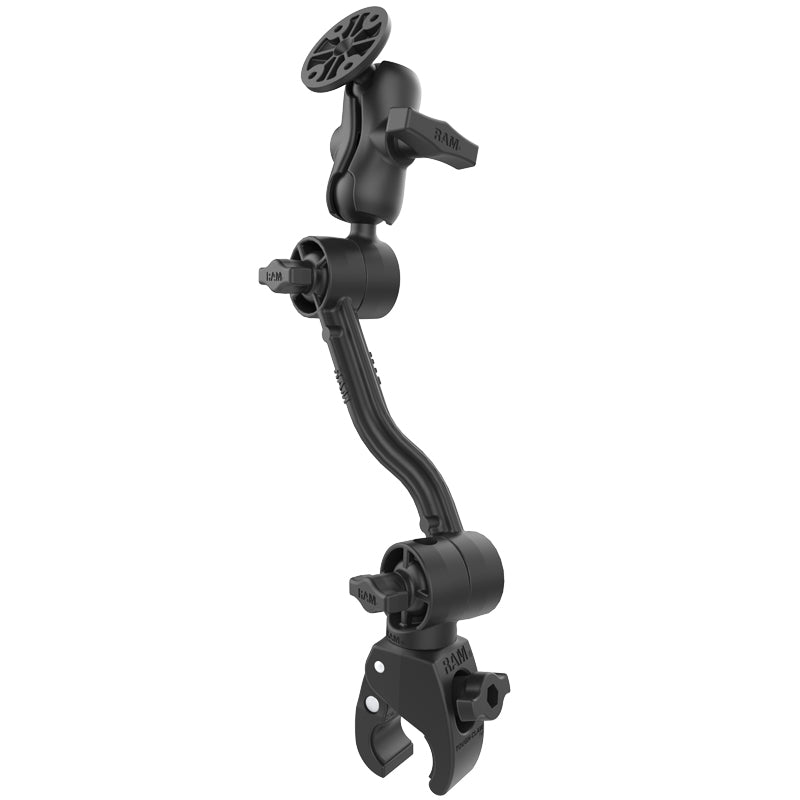

Overview	Get the length and stability needed to mount any tablet to a wheelchair for important use in the healthcare and rehab industries. The included Tough-Claw™ attaches to the wheelchair, securing the 8” Ratchet Extension Arm via the RAM ROD® Ratchet Attachment. With the extension, double socket arm and round base all attached, choose a RAM tablet cradle – the Tab-Tite™, Tab-Lock™, EZ-Roll’r™ or 9”-10” / 11”-12” X-Grip® – to securely mount your device.

Product Information

Overview

Get the length and stability needed to mount any tablet to a wheelchair for important use in the healthcare and rehab industries. The included Tough-Claw™ attaches to the wheelchair, securing the 8” Ratchet Extension Arm via the RAM ROD® Ratchet Attachment. With the extension, double socket arm and round base all attached, choose a RAM tablet cradle – the Tab-Tite™, Tab-Lock™, EZ-Roll’r™ or 9”-10” / 11”-12” X-Grip® – to securely mount your device.

Specifications
hardware included	Assembly Hardware
clamp range	.625" - 1.14" diameter
socket to socket length	Short Arm: 2.5"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
plate size	2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	High strength composite
packaging type	Poly Bag
Weight	1.41 lb

RAM® Tough-Claw™ with Ratchet Extension Arm and Double Ball Mount

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® Tough-Claw™ with Ratchet Extension Arm and Double Ball Mount

Part#: RAP-418-400-PA-202U

UPC: 793442953415

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$98.49
