Patented & Pats. Pend.

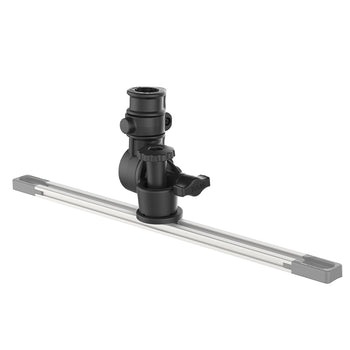

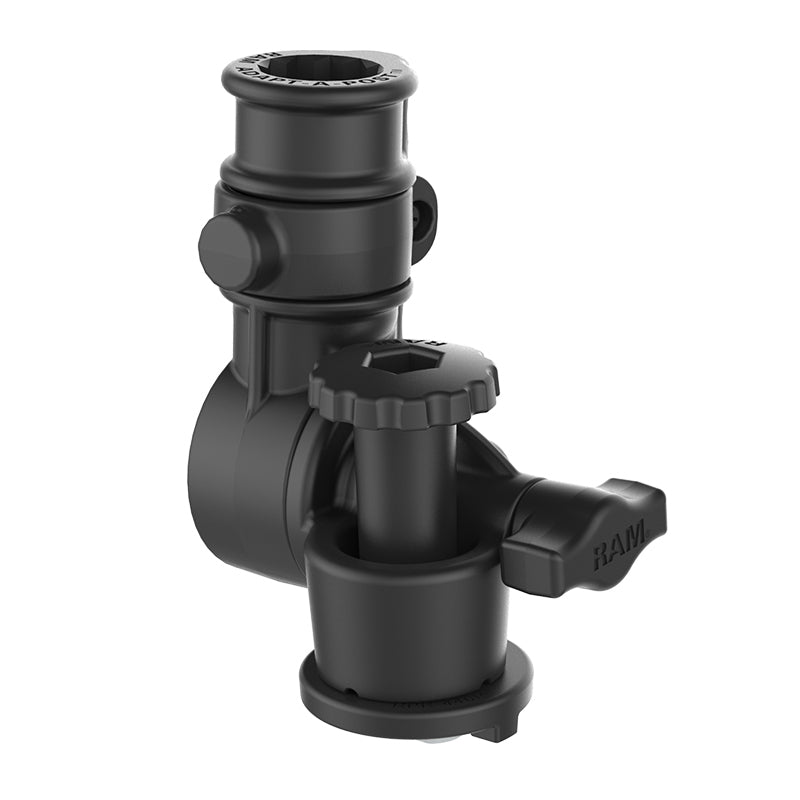

RAM® Track-Node™ Base with RAM® Adapt-A-Post™
Part#: RAP-411-AAPU
UPC: 793442010897
$40.99

Overview

The RAM® Track-Node™ is a ratcheting, highly adjustable track base designed to accommodate both fishing rod holders and the RAM® Tough-Pole™ action camera mount. This version includes the RAM® Adapt-A-Post™ that offers a unique locking mechanism, allowing the user to insert a post from any direction. Simply drop in your post – no alignment necessary – and you're ready. To remove, simply press and hold the side button. With the RAM® Track-Node™, a quick twist of the knob allows you to easily swing your rod holder, action camera, or other device in and out of your vessel. To install, slide the RAM® Track-Node™ base into your track mount system thanks to the connected T-bolt and turn the circular knob to tighten in place. To achieve 360-degree rotation, just loosen the circular knob.

Features

  • RAM® Track-Node™ base easily installs to most track systems via connected T-bolt; allows for 360-degree rotation
  • RAM® Adapt-A-Post™ allows posts to be inserted from any direction; can be tilted to achieve ideal angle
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware
(1) Friction Track Washer
(1) Pin-Lock Track Washer

product dimensions:

Overall Width: 3.8"
Overall Height: 4.7"

t bolt dimensions:

.48" x .95"

plate size:

1.85"

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.55 lb
