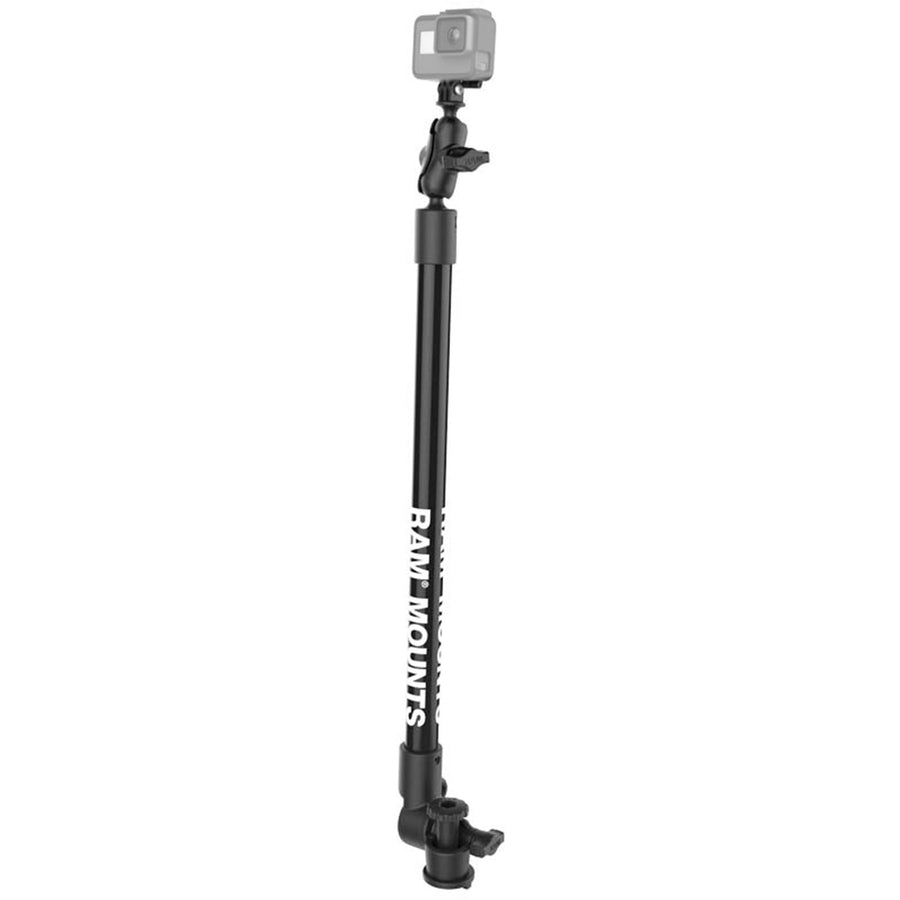

RAM^® Tough-Pole^™ Camera Mount with Single Pipe & RAM^® Track-Node^™ Base
Part #: RAP-411-18-A-GOP1-1 UPC: 793442007415 Patented & Pats. Pend.

Product Information
Overview	The RAM^® Track-Node^™ is a ratcheting, highly adjustable track base designed to accommodate both fishing rod holders and the RAM^® Tough-Pole^™ action camera mount. This kit includes the RAM^® Track-Node^™ base, short double socket arm, 18” RAM^® Tough-Pole^™, and universal action camera adapter. To allow for side-to-side movement on the track, a friction washer is included so the RAM^® Track-Node^™ base can be pivoted with little force. With a quick twist of the knob, easily swing the RAM^® Tough-Pole^™ in and out of your vessel. To install, simply slide the RAM^® Track-Node^™ base into your track mount system thanks to the connected T-Bolt and turn the circular knob to tighten in place. Loosen the circular knob for 360-degree rotation. The RAM^® Track-Node^™ is compatible with all versions of the RAM^® Tough-Track^™ and most third-party track mount systems. Any action camera with a two-pronged attachment – including GoPro – is compatible with the universal action camera adapter.

Product Information

Overview

The RAM^® Track-Node^™ is a ratcheting, highly adjustable track base designed to accommodate both fishing rod holders and the RAM^® Tough-Pole^™ action camera mount. This kit includes the RAM^® Track-Node^™ base, short double socket arm, 18” RAM^® Tough-Pole^™, and universal action camera adapter. To allow for side-to-side movement on the track, a friction washer is included so the RAM^® Track-Node^™ base can be pivoted with little force. With a quick twist of the knob, easily swing the RAM^® Tough-Pole^™ in and out of your vessel. To install, simply slide the RAM^® Track-Node^™ base into your track mount system thanks to the connected T-Bolt and turn the circular knob to tighten in place. Loosen the circular knob for 360-degree rotation. The RAM^® Track-Node^™ is compatible with all versions of the RAM^® Tough-Track^™ and most third-party track mount systems. Any action camera with a two-pronged attachment – including GoPro – is compatible with the universal action camera adapter.

Specifications
hardware included	Assembly Hardware (1) Friction Track Washer (1) Pin-Lock Track Washer
t bolt dimensions	.48" x .95"
socket to socket length	Short Arm: 1.75"
plate size	1.85"
ball size	B Size (1")
weight capacity	.5 lb
materials	High strength composite
packaging type	Retail Bag
Weight	1.22 lb

RAM<sup>®</sup> Tough-Pole<sup>™</sup> Camera Mount with Single Pipe & RAM<sup>®</sup> Track-Node<sup>™</sup> Base

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM^® Tough-Pole^™ Camera Mount with Single Pipe & RAM^® Track-Node^™ Base

Part#: RAP-411-18-A-GOP1-1

UPC: 793442007415

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

GoPro

Hero

Session

Garmin

Virb

SJCAM

SJ4000

SJ5000X Elite 4K

Muvi

veho K-Series K-2 Pro 4K

Xcel

1080C

Vivitar

ACTIVEON

CX Gold

Discovery

Kids Photo & Video Adventure Camera

AEE

ACE S70 Black 16MP 2"

AKASO

EK7000 4K WIFI Sports

AEDILYS

4K WIFI Sports

Lightdow

LD4000 1080P HD

WiMiUS

Q2 Black 1080P Wifi

Vtin

WiFi

$83.99

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
