Overview

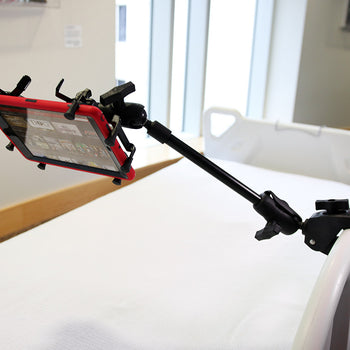

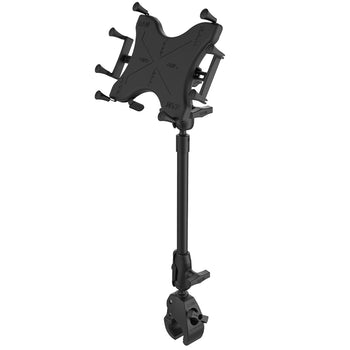

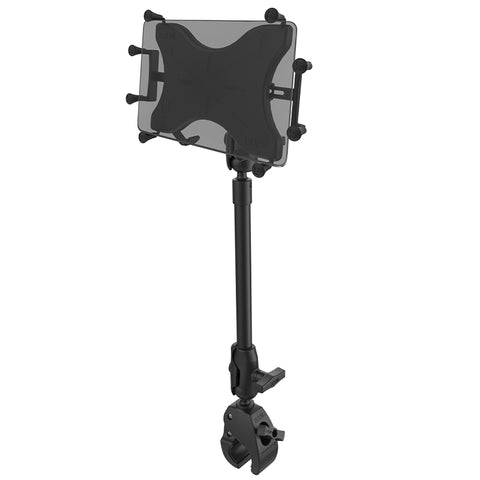

This bedside mounting kit for 9”-10” tablets includes the large RAM® Tough-Claw™ clamping base, 9” extension pole, swiveling double socket arm, and the RAM® X-Grip® universal tablet holder. The RAM® Tough-Claw™ attaches with the twist of a knob to bedside rails and bars that range from 1” to 2.25” in outer diameter. Both a 9” long extension pole and swiveling double socket arm can be easily adjusted to keep the RAM® X-Grip® universal tablet holder in an ideal viewing and operating position. When not in use, the tablet holder and extension pole can simply be rotated away from the bed.
Features

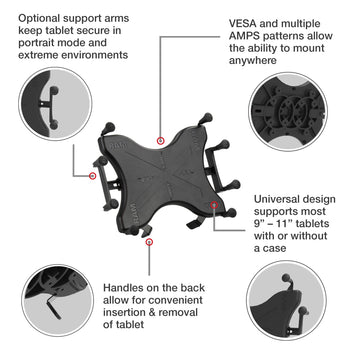

- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-11" tablets and includes optional device safety tether

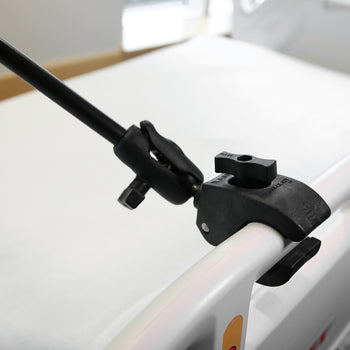

- Large version of the RAM® Tough-Claw™ base is designed to bedside rails and bars ranging from 1" to 2.2" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
- Swiveling double socket arm and extension pole allows for ideal tablet placement
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
product dimensions:
Overall Height: 26"

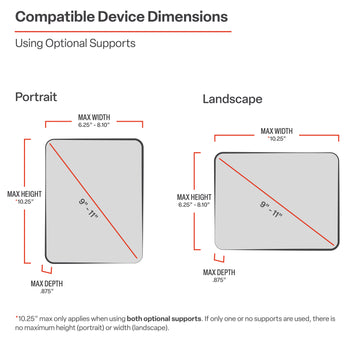

holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
clamp range:
1" - 2.2" diameter
ball size:
Bottom of Arm: C Size (1.5")
Top of Arm: B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
packaging type:
Poly Bag
Weight:
3.6 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
Will this holder not work if the additional side supports do not fit my tablet?

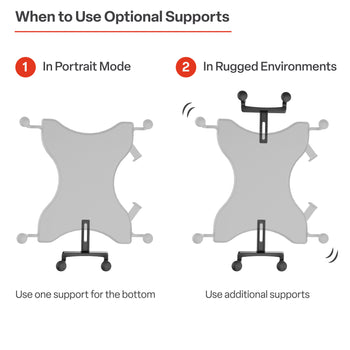

In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
-
How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
-
This part says it has a maximum height of 10.25" (using optional supports). Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets.
