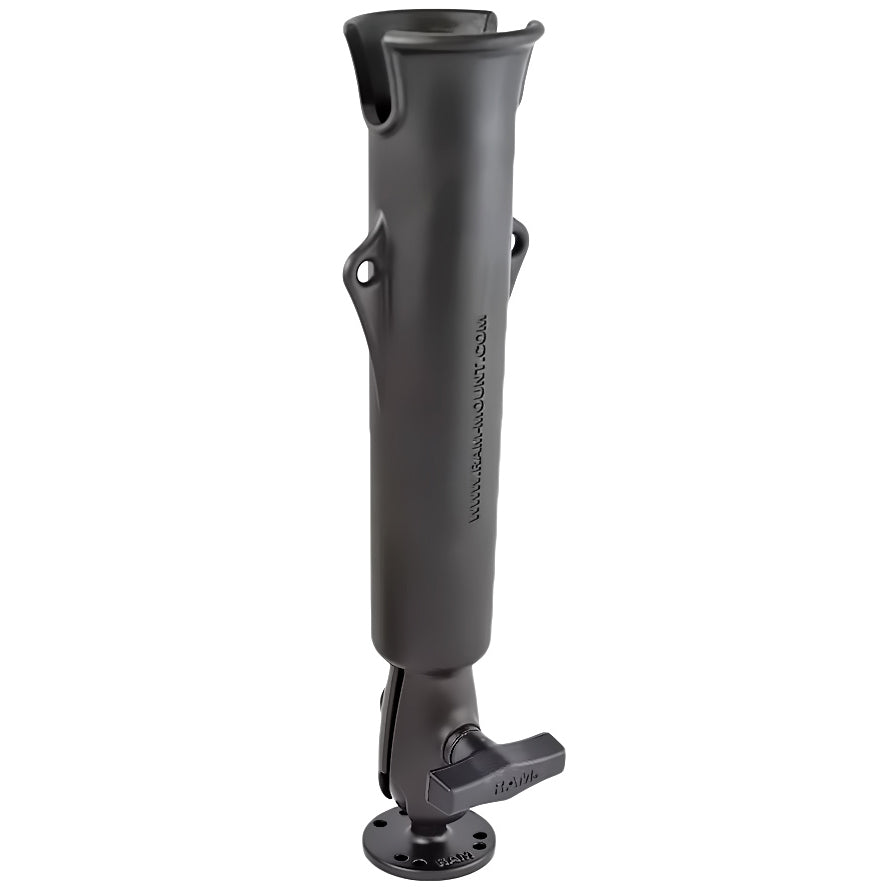

RAM® Tube™ Rod Holder with Round Plate

Part#: RAP-119U
UPC: 793442935480

Kit Components

Previous Slide Next Slide
$35.99

Overview

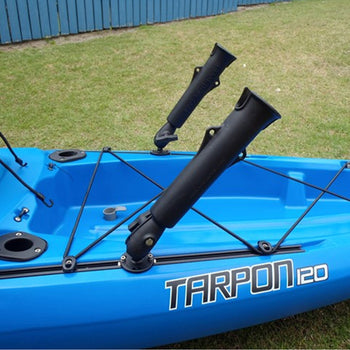

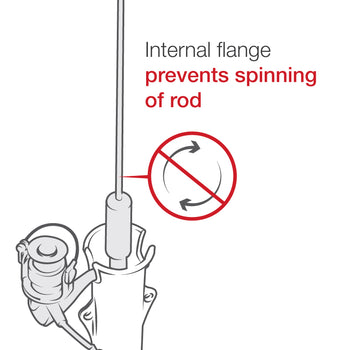

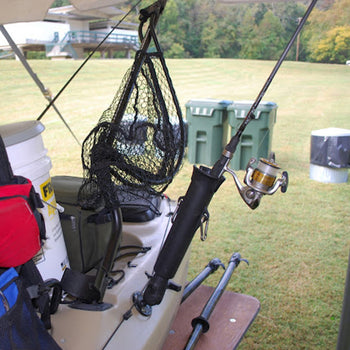

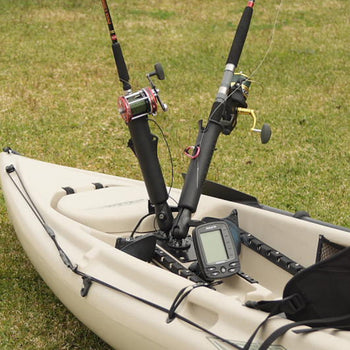

The RAM® Tube™ Rod Holder with Round Plate (RAP-119U) offers an easy, reliable way to store fishing rods or nets when they’re not in use. An internal flange along the lip of the tube prevents rods from spinning, while an integrated arm at the bottom connects to the included C size 2.5" diameter ball base. This allows the holder to be securely drilled down to the vessel’s surface. With the ball-and-socket connection, the Tube™ rotates a full 360 degrees and tilts forward or backward for optimal positioning. Loading your rod is simple—just drop the rod butt directly into the Tube™ for fast stowing and retrieval. Drainage holes at the bottom help keep water from pooling inside. Versatile and user-friendly, this solution is ideal for kayaks, tournament boats, and a wide range of fishing setups.

tube dimensions:

Inside Diameter: 1.9"
Inside Length: 10"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

High strength composite

packaging type:

Poly Bag

Weight:

1.03 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Tube™ Rod Holder with Round Plate
$35.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
