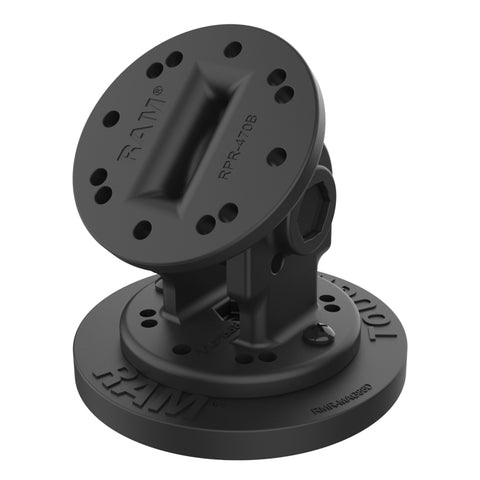

RAM® Single Pivot Magnetic Mount
Part#: RAP-101-PV4-NK-MAG88U
UPC: 793442025457
$80.49

Overview

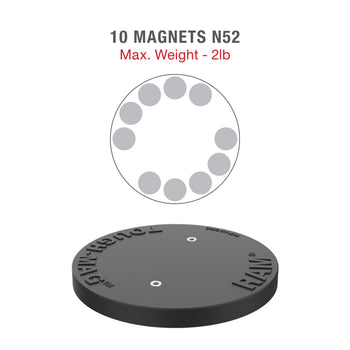

The RAM® Single Pivot Magnetic Mount (RAP-101-PV4-NK-MAG88U) is a low-profile, magnetic mounting solution. One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock while the other end features the RAM® Tough-Mag™ magnetic base. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments. The RAM® Tough-Mag™ base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Features

  • Low-profile, magentic mounting solution for heavy-duty environments

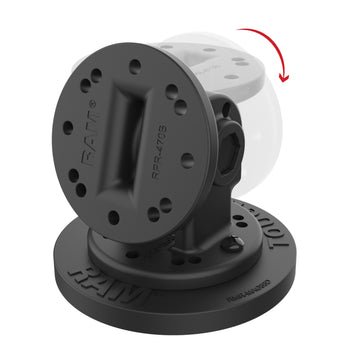

  • Single articulation joint pivots up to 180-degrees; barrel nut provide tamper resistance
  • One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88mm base
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

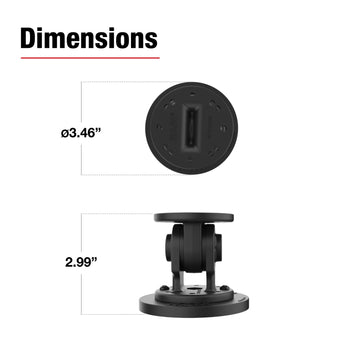

product dimensions:

Overall Height: 2.99"

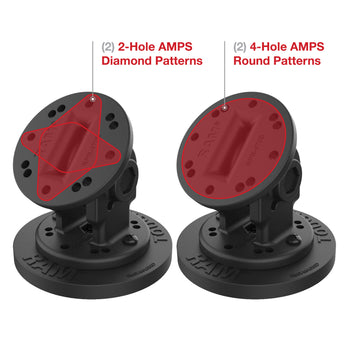

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"

plate size:

Top Plate: 2.5" Diameter
Magnetic Base: 3.46" Diameter

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.71 lb
