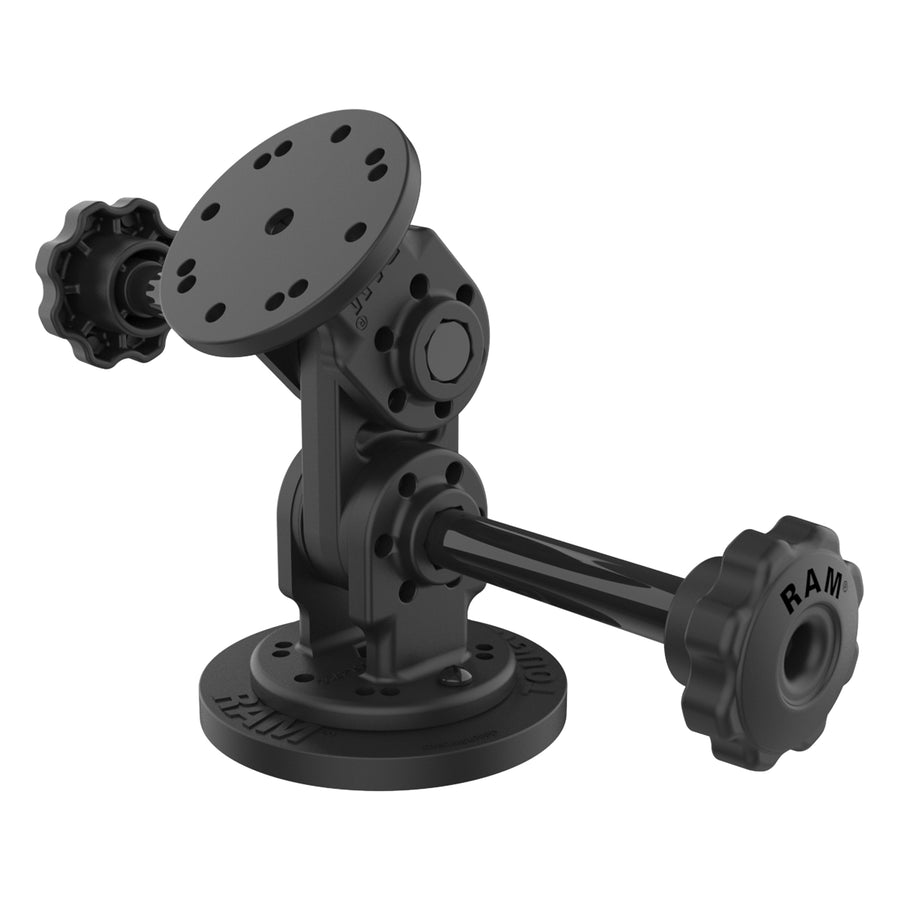

RAM® Dual Straight Pivot Magnetic Mount with Knob
Part#: RAP-101-PV4-2S-MAG88U
UPC: 793442025471
$105.99

Overview

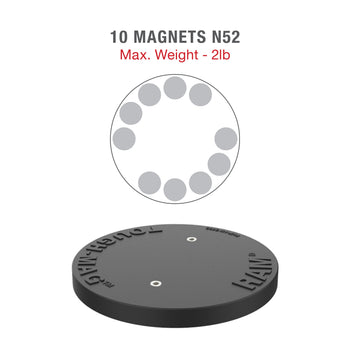

The RAM® Dual Straight Pivot Magnetic Mount with Knob (RAP-101-PV4-2S-MAG88U) is a dual articulating, magnetic mounting solution. One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock while the other end features the RAM® Tough-Mag™ magnetic base. This solution uses tooth-lock washers and extended knobs at each joint to allow users to adjust their device up to 180-degrees on each joint to achieve the ideal viewing angle. The RAM® Tough-Mag™ base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Features

  • Low-profile, magentic mounting solution for heavy-duty environments

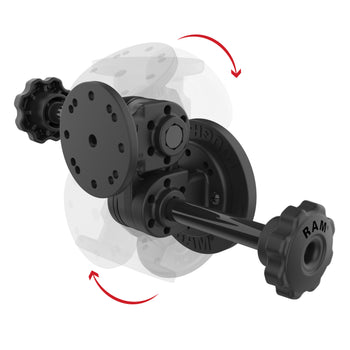

  • Dual articulation joints pivot up to 180-degrees on each joint; extended knobs for easy adjustments

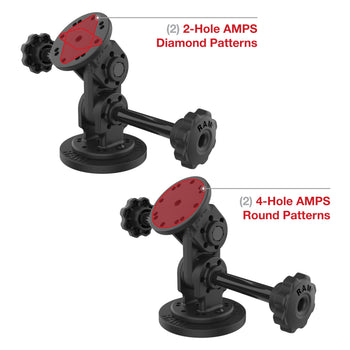

  • One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88mm base
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

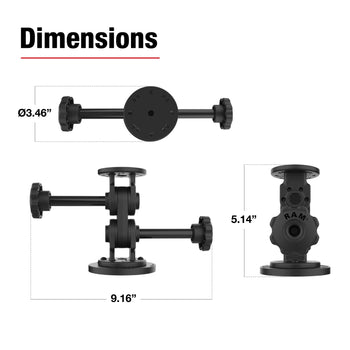

product dimensions:

Overall Height: 5.14"
Overall Width with Knobs: 9.16"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"

plate size:

Top Plate: 2.5" Diameter
Magnetic Base: 3.46" Diameter

materials:

High strength composite

packaging type:

Poly Bag

Weight:

1.11 lb
