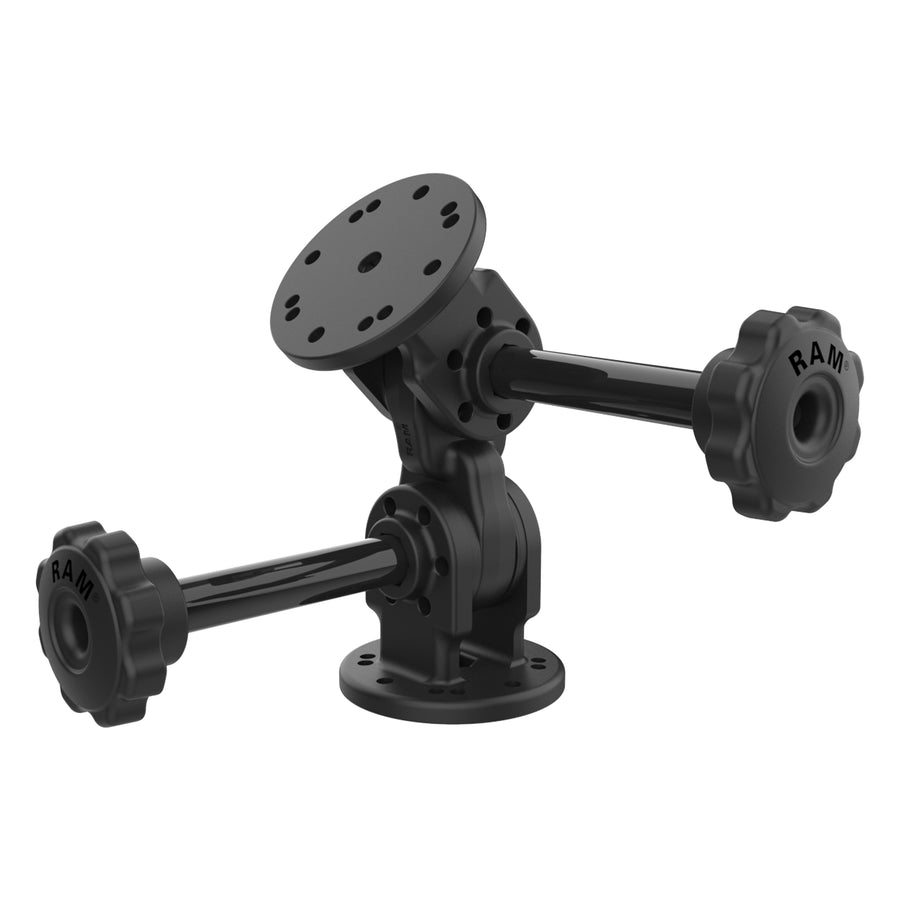

RAM® Dual 90-Degree Pivot Mount with Knob
Part#: RAP-101-PV4-2PU
UPC: 793442025501
$48.99

Overview

The RAM® Dual 90-Degree Pivot Mount with Knob (RAP-101-PV4-2PU) is a low-profile, drill-down mounting solution with two articulation hinges in opposing directions so users can easily pivot their device up to 180-degrees in each direction. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock and secure the mount to any surface. This solution uses tooth-lock washers and extended knobs at each joint to allow users to adjust their device to achieve the ideal viewing angle.

Features

  • Low-profile, drill-down mounting solution for heavy-duty environments

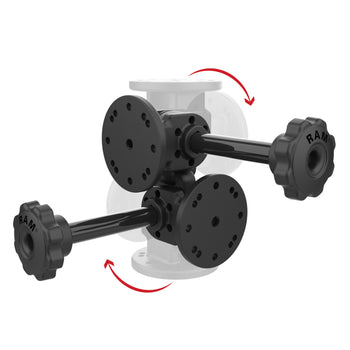

  • Dual articulation joints pivot up to 180-degrees in each direction; extended knobs for easy adjustments

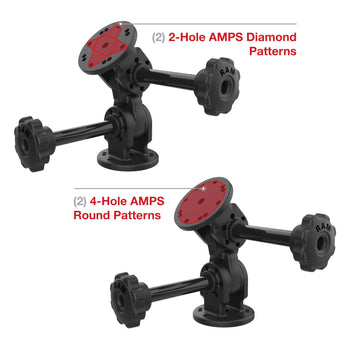

  • Each end features two 2-hole AMPS and two 4-hole AMPS patterns; secure your device to one end and the other to your preferred surface
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

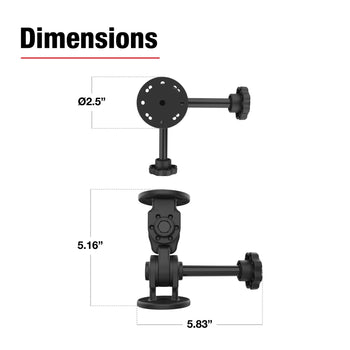

product dimensions:

Overall Height: 5.16"
Overall Width with Knobs: 5.83"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"

plate size:

2.5" Diameter

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.72 lb
