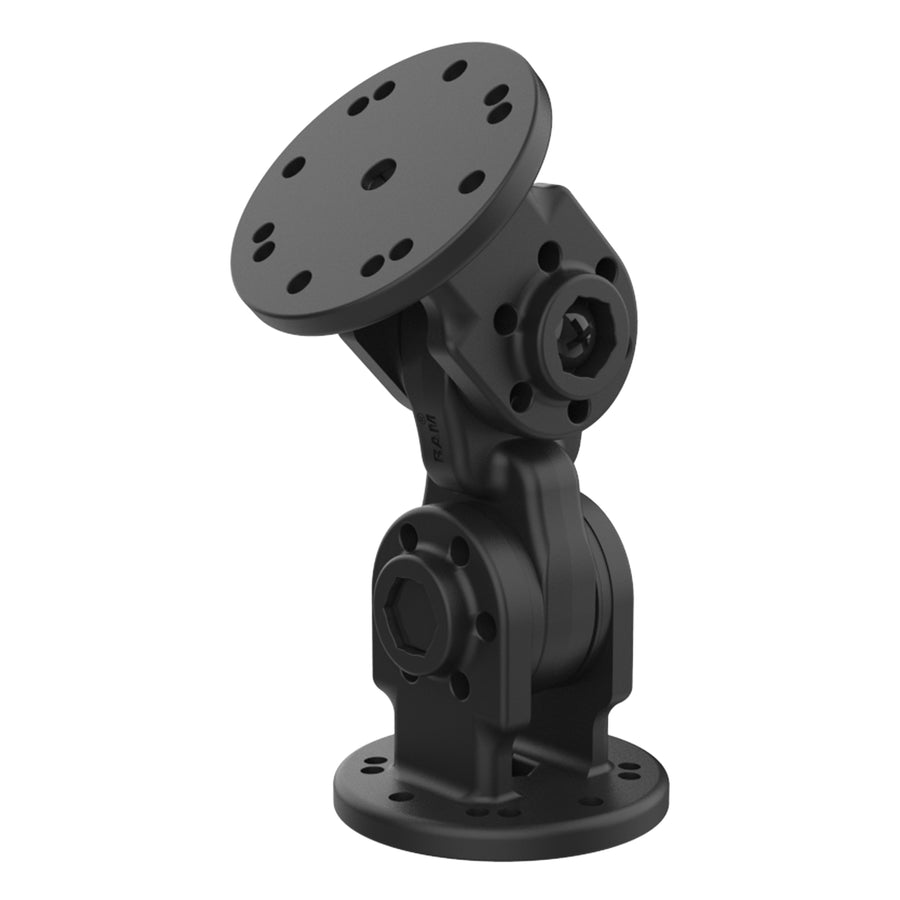

RAM® Dual 90-Degree Pivot Mount
Overview
The RAM® Dual 90-Degree Pivot Mount (RAP-101-PV4-2P-NKU) is a low-profile, drill-down mounting solution with two articulation hinges in opposing directions so users can easily pivot their device up to 180-degrees in each direction. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock and secure the mount to any surface. This solution uses tooth-lock washers to allow users to pivot their device up to 270-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments.
Features
- Low-profile, drill-down mounting solution for heavy-duty environments

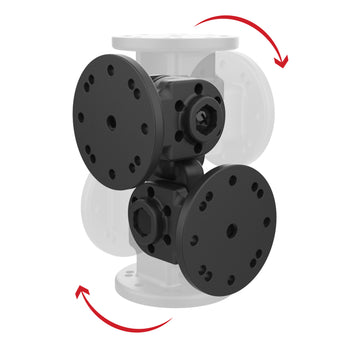

- Dual articulation joints pivot up to 180-degrees in each direction; barrel nut provide tamper resistance

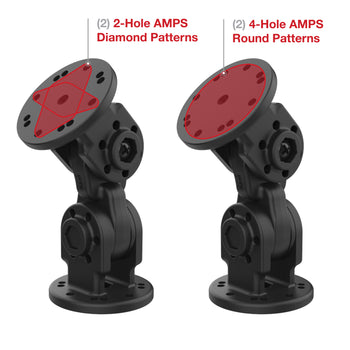

- Each end features two 2-hole AMPS and two 4-hole AMPS patterns; secure your device to one end and the other to your preferred surface
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
product dimensions:
Overall Height: 5.16"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"
plate size:
2.5" Diameter
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.43 lb
