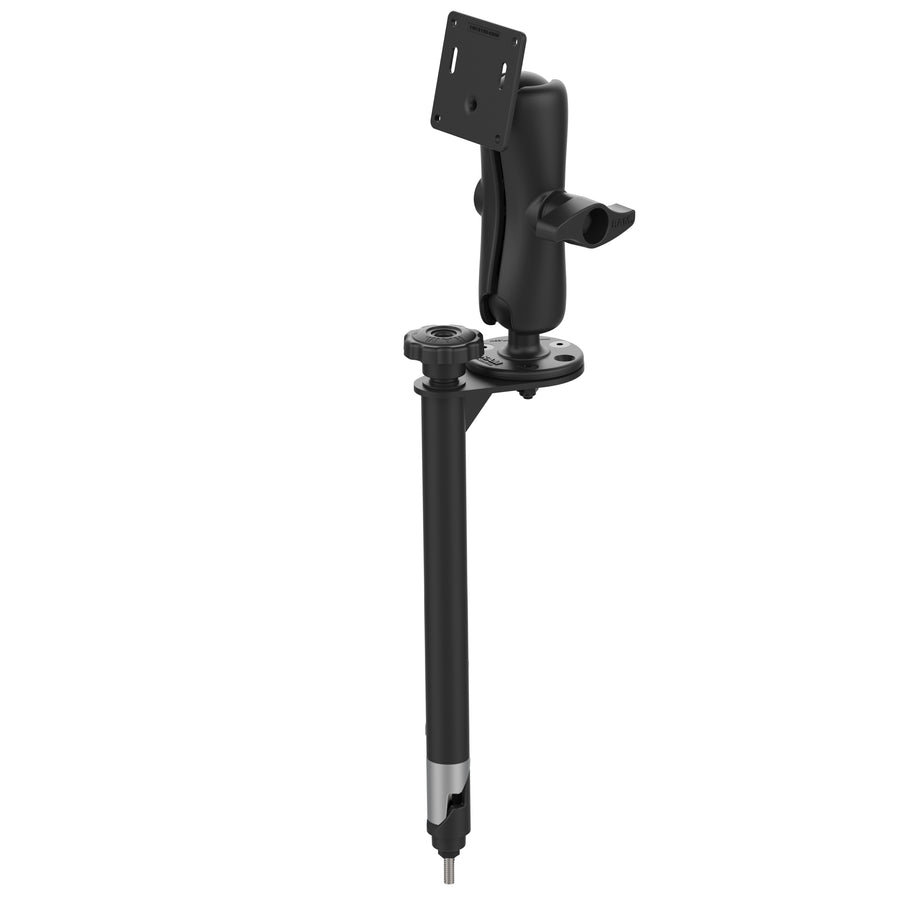

RAM^® 12" Upper Flange Pole with D Size 75x75mm VESA Mount
Part #: RAM-VP-TTMF12-D-101-2461U UPC: 793442828775 Patented Features Pair this 12" upper pole with any RAM^® lower pole and vehicle base that is compatible with your specific vehicle Consists of D size mounting components, including a 75x75mm VESA Mount for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability Backed by a lifetime warranty

Product Information
Overview	This 12" Upper Flange Pole consists of an 12" upper pole, D size ball base and medium length double socket arm, and a D size 75x75mm VESA Mount to connect with your device holder. Pair this upper pole with a RAM^® vehicle base that is compatible with your specific vehicle, enabling a rugged mobile office setup.

Specifications
hardware included	Assembly Hardware
socket to socket length	6.88"
hole pattern	75 x 75mm VESA
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Powder coated steel Marine-grade aluminum
packaging type	Poly Bag
Weight	7.49 lb

RAM<sup>®</sup> 12" Upper Flange Pole with D Size 75x75mm VESA Mount

Questions about our products? Email us for support.

Patented

RAM^® 12" Upper Flange Pole with D Size 75x75mm VESA Mount

Part#: RAM-VP-TTMF12-D-101-2461U

UPC: 793442828775

D Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$193.49

Options

D Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

This 12" Upper Flange Pole consists of an 12" upper pole, D size ball base and medium length double socket arm, and a D size 75x75mm VESA Mount to connect with your device holder. Pair this upper pole with a RAM^® vehicle base that is compatible with your specific vehicle, enabling a rugged mobile office setup.

Features

Pair this 12" upper pole with any RAM^® lower pole and vehicle base that is compatible with your specific vehicle
Consists of D size mounting components, including a 75x75mm VESA Mount for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Backed by a lifetime warranty
