RAM^® 12" Upper Flange Pole with Double Ball Mount
Part #: RAM-VP-TTMF12-101U-D UPC: 793442022302 Patented Features 12" pole installs onto any RAM^® vehicle base with a welded female Tele-Pole^™ Ball and socket mounting system offers shock and vibration damping Compatible with any RAM^® holders or GDS^® docks with a 4 hole AMPS pattern Backed by a lifetime warranty

Product Information

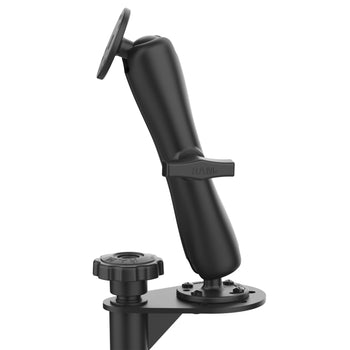

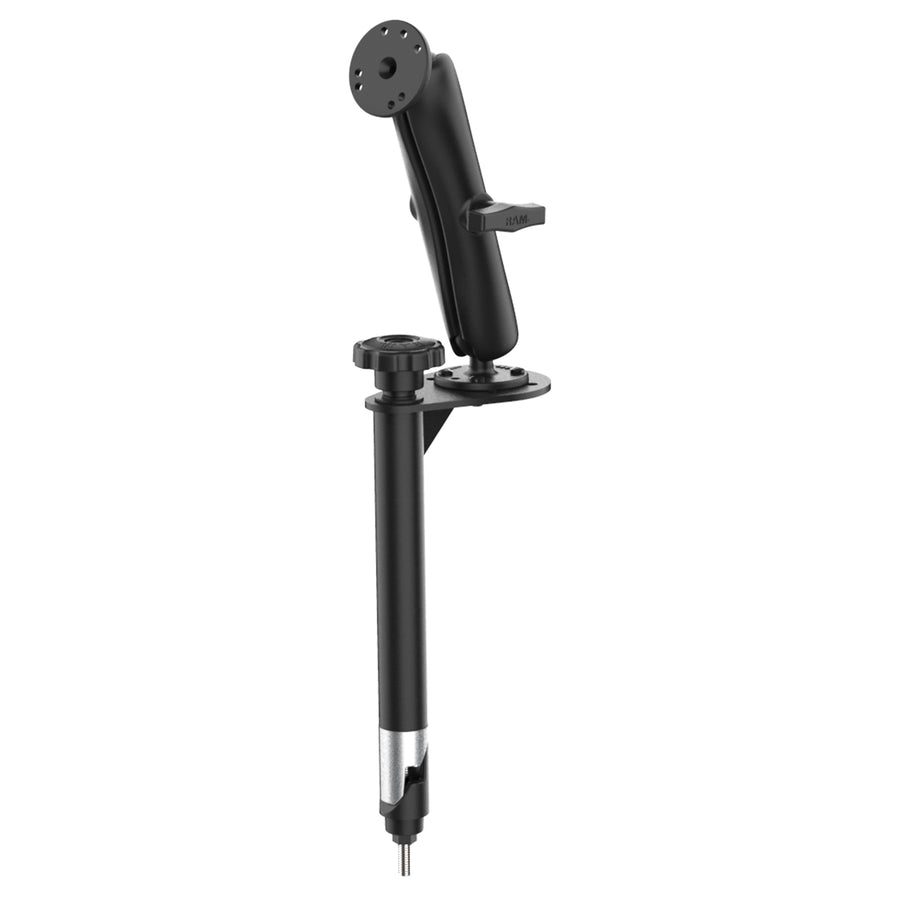

Overview	The RAM^® 12" Upper Flange Pole with Double Ball Mount (RAM-VP-TTMF12-101U-D) consists of a 12" upper male Tele-Pole^™ with a connection point for the 3-part ball and socket system. The 2.5" round ball features the universal 4-hole AMPS hole pattern to connect any RAM^® device holder or GDS^® Dock^™. The Tele-Pole^™ can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole^™ becomes a rigid support for connecting devices or cradles. The Tele-Pole^™ will connect to any RAM^® vehicle base with a welded female Tele-Pole^™.

Product Information

Overview

The RAM^® 12" Upper Flange Pole with Double Ball Mount (RAM-VP-TTMF12-101U-D) consists of a 12" upper male Tele-Pole^™ with a connection point for the 3-part ball and socket system. The 2.5" round ball features the universal 4-hole AMPS hole pattern to connect any RAM^® device holder or GDS^® Dock^™. The Tele-Pole^™ can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole^™ becomes a rigid support for connecting devices or cradles. The Tele-Pole^™ will connect to any RAM^® vehicle base with a welded female Tele-Pole^™.

Specifications
hardware included	Assembly Hardware
product dimensions	Overall Height: 26.85"
socket to socket length	8"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine-grade aluminum
packaging type	Poly Bag
Weight	5.27 lb

RAM<sup>®</sup> 12" Upper Flange Pole with Double Ball Mount

Questions about our products? Email us for support.

Patented

RAM^® 12" Upper Flange Pole with Double Ball Mount

Part#: RAM-VP-TTMF12-101U-D

UPC: 793442022302

C Size

Long Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
