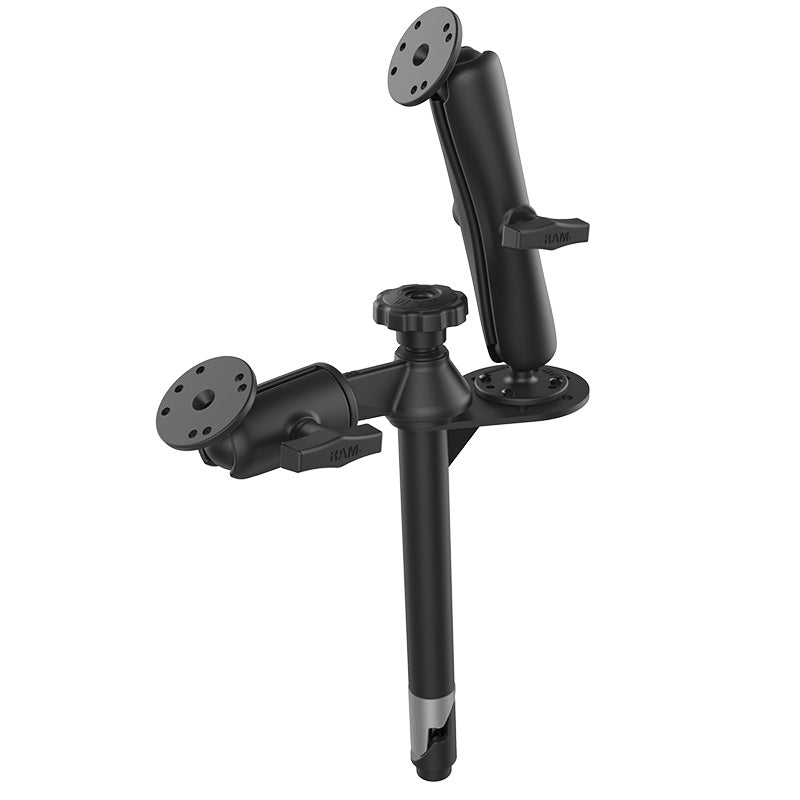

RAM^® 8” Upper Pole and Double Ball Mount
Part #: RAM-VP-SW2F-8 UPC: 793442012167 Patented Features Articulating swing arm allows for full 360-degree rotation for ideal GDS^® Keyboard^™ placement; compatible with RAM^® lower pole bases Compatible with a variety of RAM^® tablet and other device holders Made of powder-coated steel and marine-grade aluminum Backed by a lifetime warranty

Product Information
Overview	This swing arm mount features a RAM^® Tele-Pole^™ 8” upper pole with flange, 6” swing arm, and a long C size double socket arm. Easily connect any RAM^® lower pole, RAM^® tablet mount or holder to the flange double ball mount and connect our GDS^® Keyboard^™ to the swing arm system to complete the ultimate mobile workstation. With the ability to swing the keyboard out of the way when not in use as well as position the monitor at nearly any angle, ensure your mobile workstation is backed by RAM^® Mounts for strength, durability, and versatility.

Product Information

Overview

This swing arm mount features a RAM^® Tele-Pole^™ 8” upper pole with flange, 6” swing arm, and a long C size double socket arm. Easily connect any RAM^® lower pole, RAM^® tablet mount or holder to the flange double ball mount and connect our GDS^® Keyboard^™ to the swing arm system to complete the ultimate mobile workstation. With the ability to swing the keyboard out of the way when not in use as well as position the monitor at nearly any angle, ensure your mobile workstation is backed by RAM^® Mounts for strength, durability, and versatility.

Specifications
hardware included	Assembly Hardware
hole pattern	Tele-Pole: 2.625" x 2.625" Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
materials	Powder coated steel Marine-grade aluminum
packaging type	Box
Weight	8.22 lb

RAM<sup>®</sup> 8” Upper Pole and Double Ball Mount

Questions about our products? Email us for support.

Patented

RAM^® 8” Upper Pole and Double Ball Mount

Part#: RAM-VP-SW2F-8

UPC: 793442012167

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$188.49
