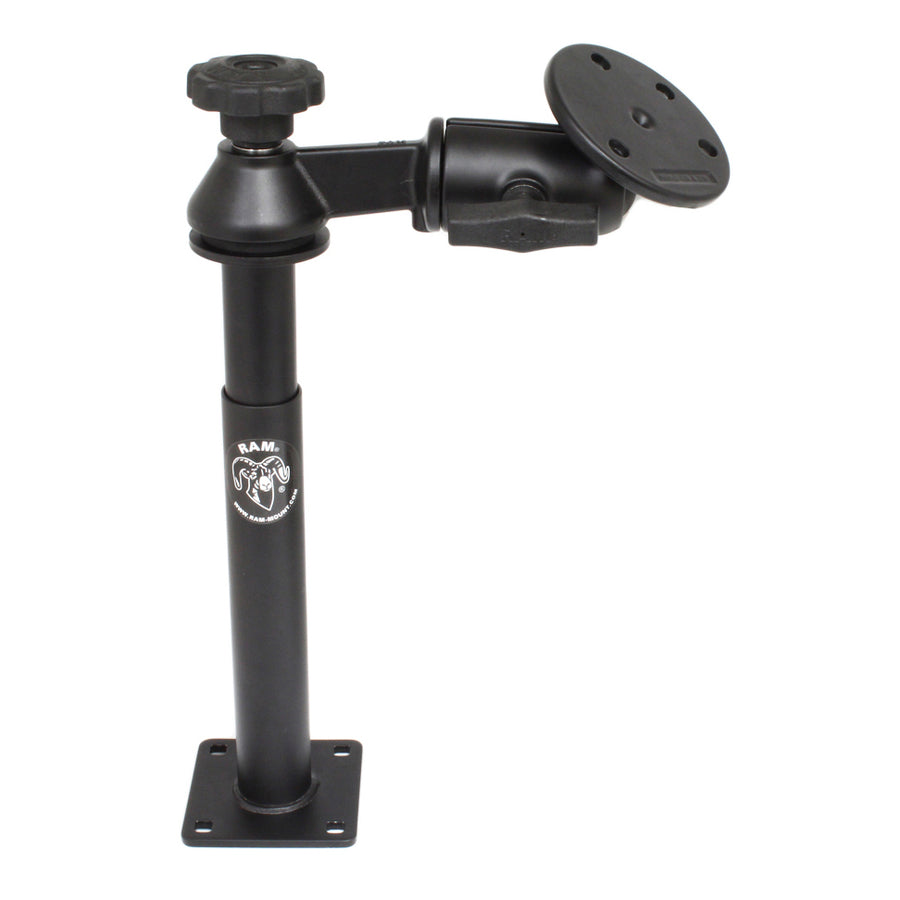

RAM® Tele-Pole™ with 8" & 9" Poles, Single Swing Arm & Large Round Plate
$147.99
8" Upper Pole, 9" Lower Pole
The RAM-VP-SW2-89-240 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, single swing arm and 3.68" round base. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The length of the double swing arm is 6". The 3.68" round base contains pre-drilled holes that connects to RAM Tough-Dock™ Powered Docking Stations.
RAM® Tele-Pole™ with 8" & 9" Poles, Single Swing Arm & Large Round Plate
Overview
The RAM-VP-SW2-89-240 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, single swing arm and 3.68" round base. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The length of the double swing arm is 6". The 3.68" round base contains pre-drilled holes that connects to RAM Tough-Dock™ Powered Docking Stations.
hardware included
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps
product dimensions
Minimum Height: 16.3"
Maximum Height: 21.3"
hole pattern
Tele-Pole: 2.625" x 2.625"
Round Plate: See Drawing
ball size
C Size (1.5")
materials
Powder coated steel
Marine-grade aluminum
packaging type
Box
Weight
6.5 lb
