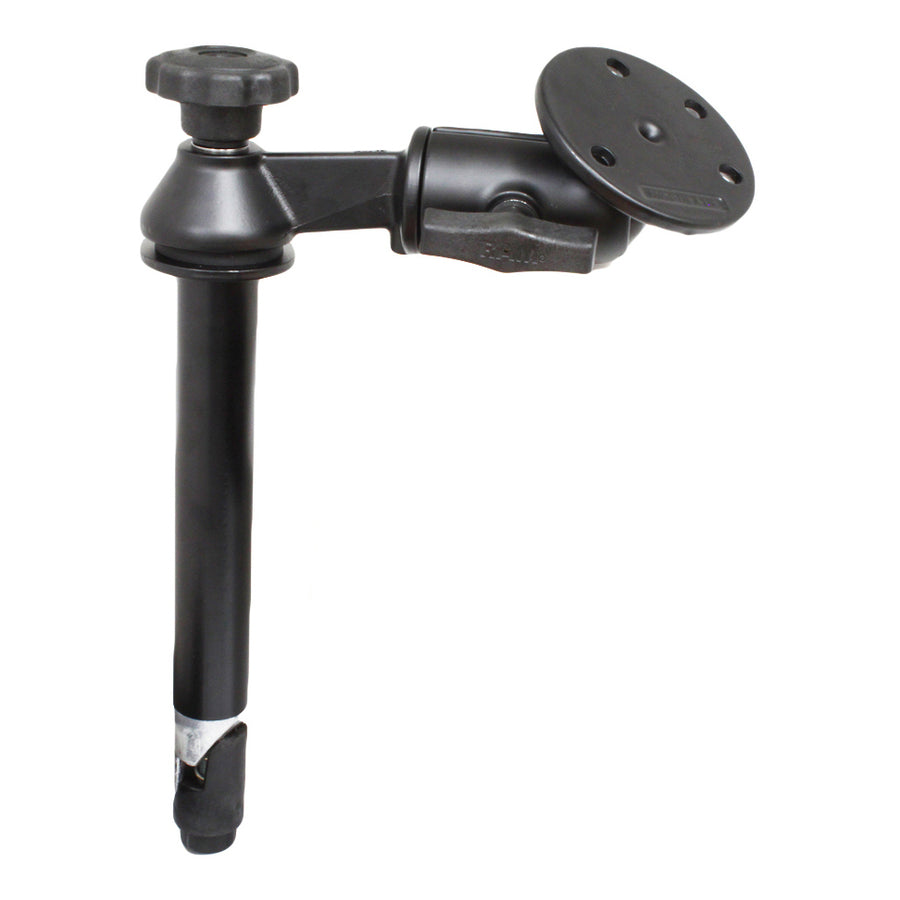

RAM^® 8" Upper Pole with Single Swing Arm & Large Round Plate
Part #: RAM-VP-SW2-8-240 UPC: 793442924613 Patented

Product Information
Overview	The RAM-VP-SW2-8-240 consists of a 8" upper male Tele-Pole^™, single swing arm and 3.68" round base. The Tele-Pole^™ can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole^™ becomes a rigid support for connecting devices or cradles. The Tele-Pole^™ will connect to any RAM vehicle base with a welded female Tele-Pole^™. The length of the double swing arm is 6". The 3.68" round base contains pre-drilled holes that connects to RAM Tough-Dock^™ Powered Docking Stations.

Product Information

Overview

The RAM-VP-SW2-8-240 consists of a 8" upper male Tele-Pole^™, single swing arm and 3.68" round base. The Tele-Pole^™ can be easily adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole^™ becomes a rigid support for connecting devices or cradles. The Tele-Pole^™ will connect to any RAM vehicle base with a welded female Tele-Pole^™. The length of the double swing arm is 6". The 3.68" round base contains pre-drilled holes that connects to RAM Tough-Dock^™ Powered Docking Stations.

Specifications
hardware included	Assembly Hardware
hole pattern	See Drawing
ball size	C Size (1.5")
materials	Powder coated steel Marine-grade aluminum
packaging type	Box
Weight	6.5 lb

RAM<sup>®</sup> 8" Upper Pole with Single Swing Arm & Large Round Plate

Questions about our products? Email us for support.

Patented

RAM^® 8" Upper Pole with Single Swing Arm & Large Round Plate

Part#: RAM-VP-SW2-8-240

UPC: 793442924613

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$122.99
