Overview

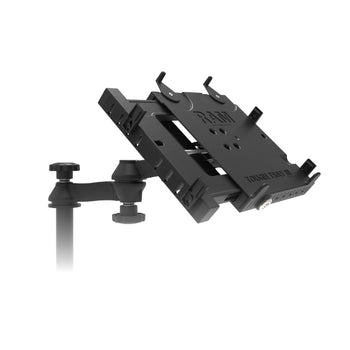

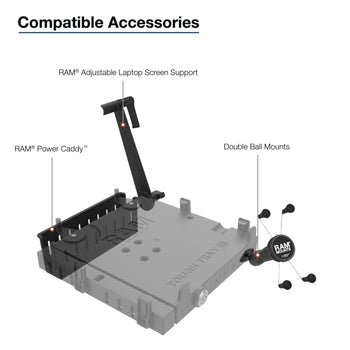

The RAM® Universal Drill-Down Vertical Laptop Mount (RAM-VBD-128-SW3) installs quickly and easily into most vehicles by using self-tapping screws or by drilling and then bolting down the mount base to the vehicle*. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. The patented rubber ball-and-socket joint provides additional adjustment, as well as shock and vibration isolation. The RAM Tough-Tray™ is spring-loaded to accommodate 10" to 17" (measured diagonally). The arms adjust vertically and horizontally to provide a custom fit for laptops of varying thicknesses while keeping ports and drives accessible. Compatible accessories, including a screen support and USB light, are also available to further customize your mounting setup.
Features
- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments
- Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(2) Backing Plates
(4) 5/16"-18 x 7/8" Hex Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Fender Washers
(4) 5/16" Split Lock Washers

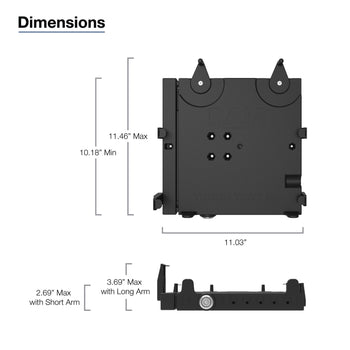

tray dimensions:
Width Range: 10" - 15.25"
Side Arm Clamp Height: 0" - 1.875"
Depth Range: 7.625" - 10.625"
Tray Thickness: 1.26"
hole pattern:
Base: See Drawing
ball size:
C Size (1.5")
materials:
Powder coated steel
Marine grade-aluminum
High strength composite
packaging type:
Box
Weight:
12.79 lb
