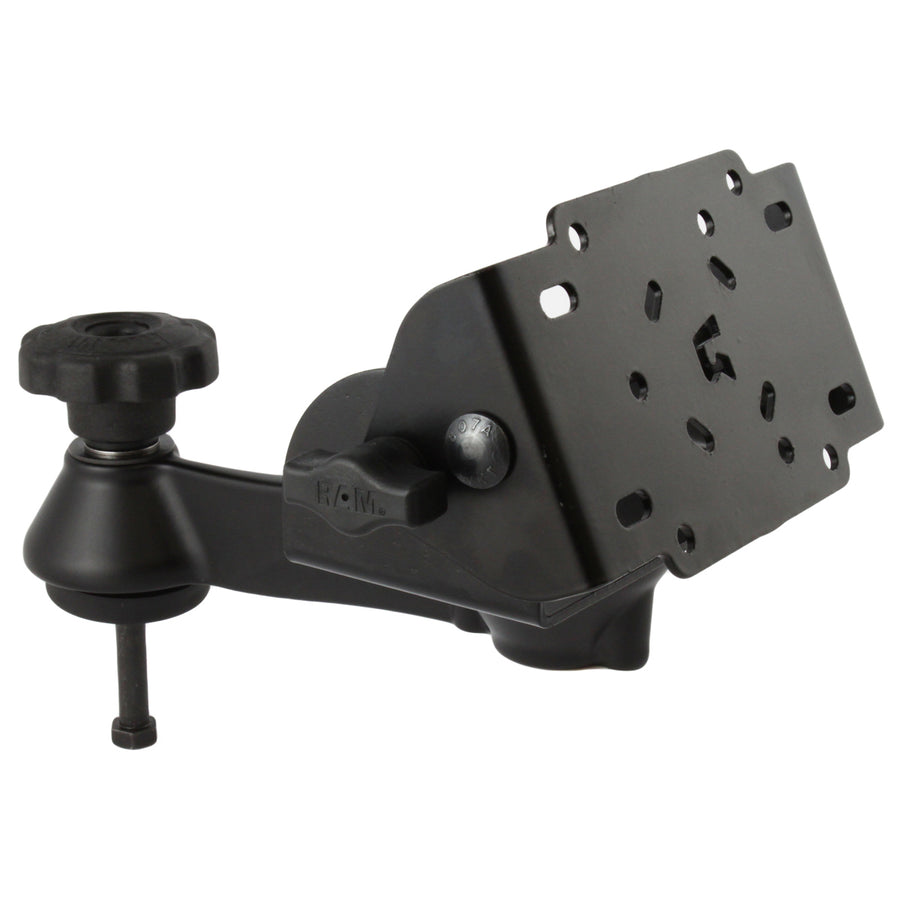

RAM® Tilt-N-Turn™ 90-Degree Bracket with Single Swing Arm
Part#: RAM-VB-TNT90-1
UPC: 793442914720
$84.49

Overview

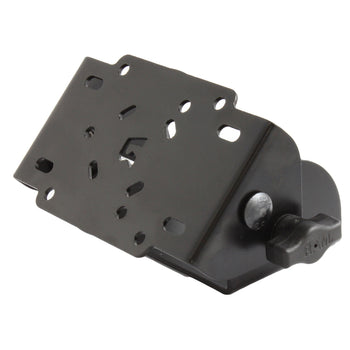

The RAM-VB-TNT90-1, Tilt-N-Turn™ 90 degree motion attachment swing arm, consists of a steel plate on a single swing arm that has a tilt range of 90 degrees forward and back from the vertical position. The small range of tilt is designed to angle a connected RAM laptop cradle forward giving you a comfortable typing and viewing angle. The Tilt-N-Turn™ plate can spin in 360 degrees around on the swing arm end, and with a twist of the side lock knob, the attachment will tilt forward and back. Knowing that this product has countless applications, numerous hole patterns are built right in making the Tilt-N-Turn™ exceptionally versatile. The AMPS, 90 degree AMPS, 75 x 75MM VESA, 2” x 4”, and RAM’s own three hole at 120 degrees take the guess work out of whether this product will work for you. Whether you have and existing RAM system and want to integrate this product, or simply need the best mounting system available, consider RAM and yet another ergonomic product; this time with the Tilt-and-Turn™ feature.

hardware included:

Assembly Hardware
(1) 3/8"-16 x 1.5" Carriage Bolt
(1) 3/8"-18 Lock Nut
(1) 2" Rubber Washer
(2) 5/16" Flat Washer

materials:

Powder coated steel
Marine grade-aluminum

packaging type:

Poly Bag

Weight:

3.24 lb

Print

Instructions

TILT-N-TURN & Swing Arm Assembly Guide

Questions & Answers

Have a Question?

Ask a Question

  • This looks like it tilts and turns but does not lock in position, is this correct? Is there a way to lock it in position as well?

    The RAM-VB-TNT90 that's included a part of the RAM Tilt-N-Turn 90-Degree Bracket with Swing Arm is fastened in place by way of a carriage bolt and nylock nut.  The horizontal adjustment is provided by loosening the tightening knob and moving the swing arm into position as shown in the assembly instructions here.
