Overview

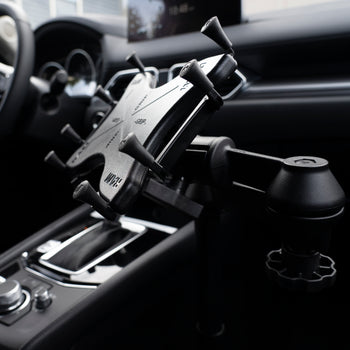

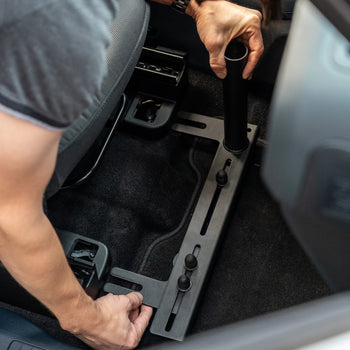

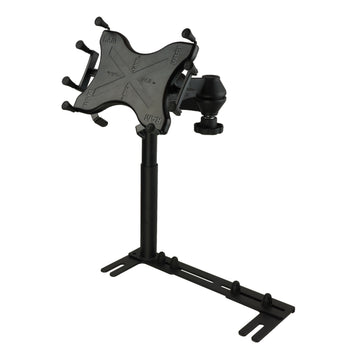

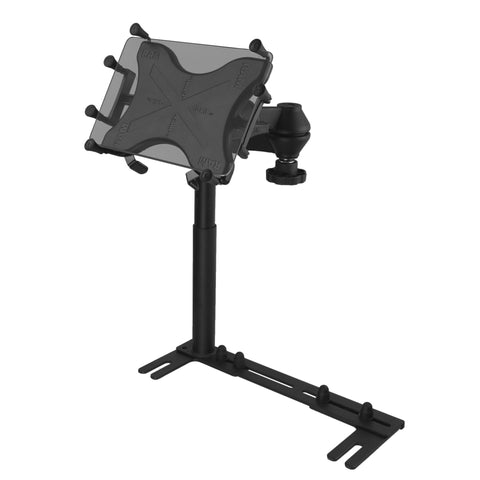

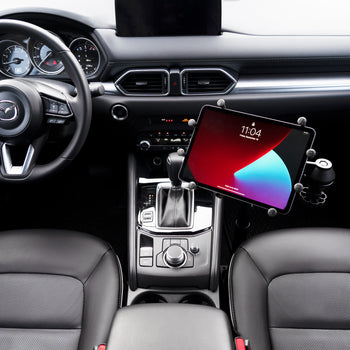

This vehicle bundle consists of the RAM® No-Drill™ mounting system and the RAM® X-Grip® universal holder for 9"-11" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.
Features

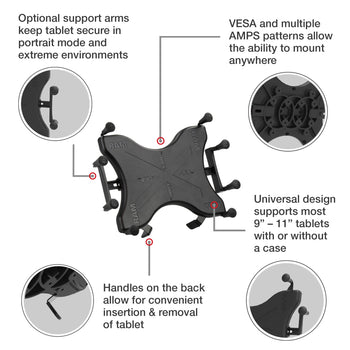

- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 9"-11" tablets
- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

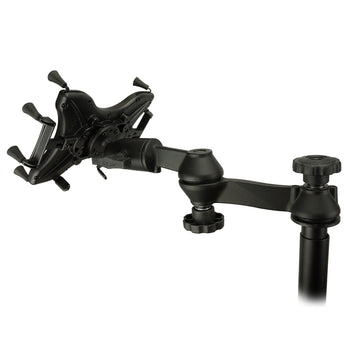

- Dual articulating swing arm allows for ideal device placement
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
Stabilizer Foot

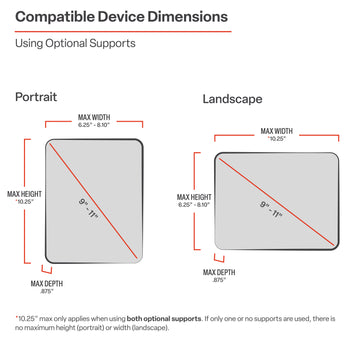

holder dimensions:
Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 9"-18.875" center to center
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Powder coated steel
Marine grade-aluminum
High strength composite
packaging type:
Box
Weight:
12.18 lb
Additional Information:
Vehicles in this compatibility list have been tested and confirmed with this base. For all other vehicles, to determine fitment please review the steps in this document:
Universal Vehicle Laptop Mount Compatibility Guide
Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
Instructions
Documents
Questions & Answers
Have a Question?
-
Will this holder not work if the additional side supports do not fit my tablet?

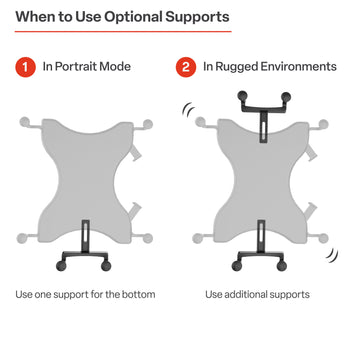

In most cases this should not be an issue. The additional side supports are optional to keep your tablet secure in extreme, high vibration environments; or if you are supporting the tablet in portrait mode, it is recommended to install one of the supports to hold the bottom of the tablet.
-
How is it that this holder fits 9" - 10" tablets, yet it can also hold the iPad Pro 11"?
The 11 in iPad Pro 11 refers to the diagonal dimension of the screen display. Overall dimensions of this tablet are 9.74" x 7.02" x .23", which fits the dimension ranges of this holder. For all universal holders including the RAM® X-Grip®, it is a matter of cross referencing overall dimensions (L x W x D) when determining compatibility. Case dimensions will need to be taken into account if your tablet is in a case.
-
How can I be sure the universal mount is compatible with my vehicle before placing an order?
There is a compatibility guide available in the “Resources” section of this product page. The compatibility guide will show you how to measure your passenger seat bolts and surrounding area to make sure the mount can be installed in your vehicle.
-
This part says it has a maximum height of 10.25". Is it possible to use this cradle with a tablet that is taller than that?
Yes, the maximum height that is listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets
