Patented

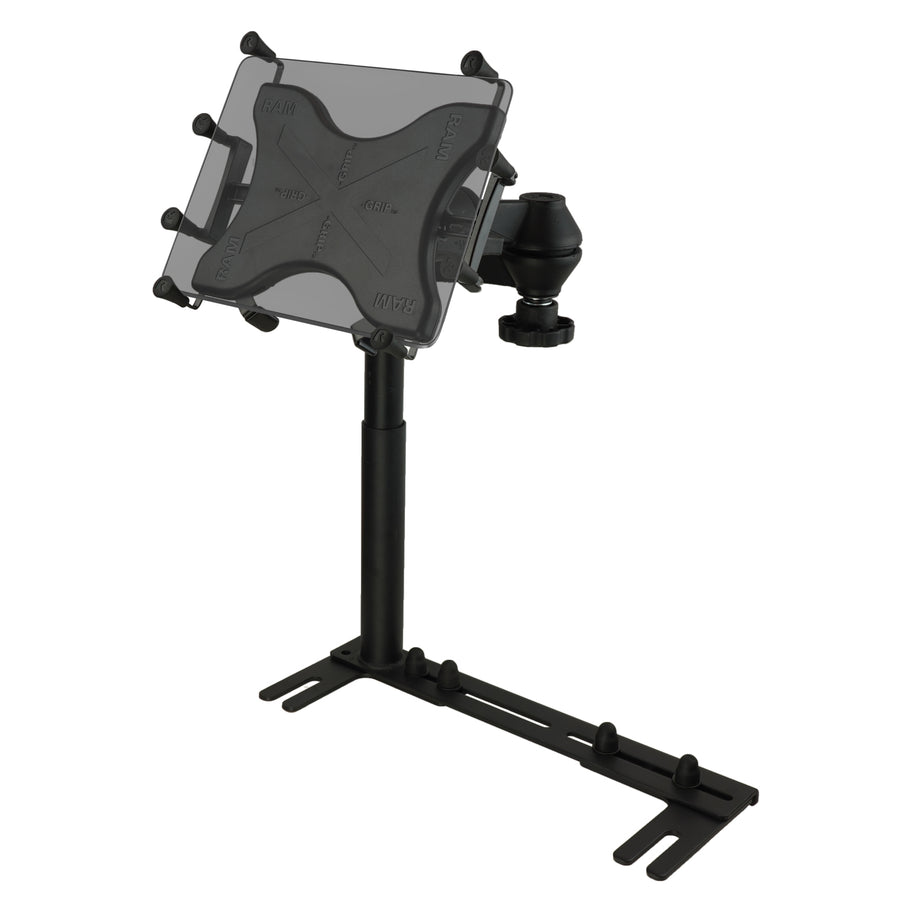

RAM® X-Grip® 12"-13" Tablet Mount with No-Drill™ Universal Base
Part#: RAM-VB-196-UN11
UPC: 793442922718
Ball Icon C Size
$380.49

Overview

This vehicle bundle consists of the RAM® No-Drill™ mounting system and the RAM® X-Grip® universal holder for 12" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.

Features

  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" - 13" tablets
  • RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments
  • Dual articulating swing arm allows for ideal device placement
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware
Stabilizer Foot

holder dimensions:

Max Height: 10.25" (using optional supports)
Width Range: 7.25" - 8.75"
Max Depth: .875"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 9"-18.875" center to center

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

12.18 lb

Additional Information:

Vehicles in this compatibility list have been tested and confirmed with this base. For all other vehicles, to determine fitment please review the steps in this document:

Universal Vehicle Laptop Mount Compatibility Guide


Depending on your vehicle, some installations may limit the adjustability of the passenger seat.

Print

Instructions

RAM-VB-196
Large RAM® X-Grip® Assembly Guide
Upper Tele-Pole Assembly Guide

Documents

How to Find the Right Holder for Your Tablet

Questions & Answers

Have a Question?

Ask a Question

  • How can I be sure the universal mount is compatible with my vehicle before placing an order?

    There is a compatibility guide available in the “Resources” section of this product page. The compatibility guide will show you how to measure your passenger seat bolts and surrounding area to make sure the mount can be installed in your vehicle.

  • This part says it has a maximum height of 10.25" (using optional supports). Is it possible to use this cradle with a tablet that is taller than that?

    Yes, the maximum height listed only applies if you are using the optional side support arms. If you leave at least one of those arms off of the mount it will be able to support taller tablets.
