Patented

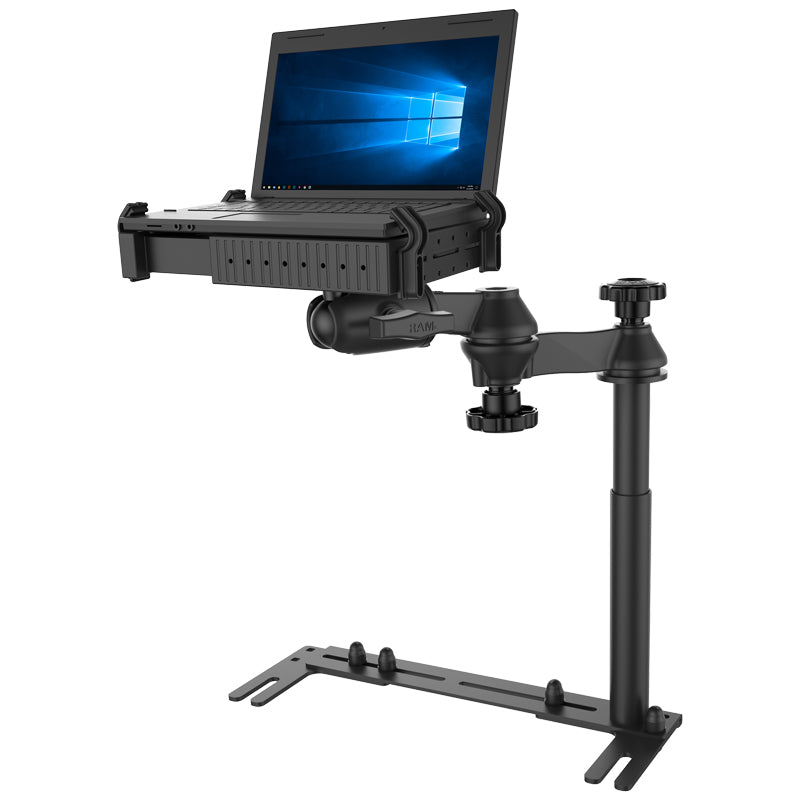

RAM® No-Drill™ Universal Laptop Mount with Reverse Configuration
Part#: RAM-VB-196-1-SW1
UPC: 793442947797
Ball Icon C Size
$310.49

Overview

The RAM® Reverse Configuration Universal No-Drill™ Laptop features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle. The included RAM Tough-Tray™ is spring loaded to accommodate 10" to 17" laptops. The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support phones or other electronics.

Features

  • Custom, RAM® No-Drill™ mounting base offers lowest profile in the industry
  • Universal adjustable base accommodates a wide range of vehicles (see Additional Information)
  • Patented ball and socket mounting system offers shock and vibration damping
  • Dual articulating swing arm offers the simplest and most comfortable adjustment points in the industry
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware
Stabilizer Foot

product dimensions:

Height Range: 18.25" - 24"

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern:

Seat Bolt Distance: 9"-18.875" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

14.0 lb

Additional Information:

Will this mount install in your vehicle? Learn more by following the steps in this document:

Universal Vehicle Laptop Mount Compatibility Guide


Depending on your vehicle, some installations may limit the adjustability of the passenger seat.

Print

Instructions

Tough-Tray Assembly Guide
Upper Tele-Pole Assembly Guide
RAM-VB-196

Documents

Vehicle Compatibility Guide

Questions & Answers

Have a Question?

Ask a Question

  • What are the components that make up this mount?

    Components are the following

    RAM® No-Drill™ Universal Vehicle Base with Reverse Configuration – RAM Mounts

    RAM® 8" Upper Pole – RAM Mounts

    RAM® 12" Double Swing Arm with Round Plate - C Size – RAM Mounts

    RAM® Tough-Tray™ Spring Loaded Laptop Tray – RAM Mounts



  • Whats is the suggested confirmation for Right Hand Drive and Left Hand Drive Cars ?

    Yes, this is the correct universal no-drill laptop mount for right-hand-drive cars.  For left-hand drive cars it's RAM-VB-196-SW1.

  • Will this fit a 2022 Toyota Highlander Hybrid LE with a radio side mounted on center console?

    There isn't specific vehicle fitment information for the RAM-VB-196-1-SW1 but as long as the seat bolts or the pedestals that the passenger seat is mounted on falls within the range shown on the installation instructions, the RAM No-Drill Universal Laptop Mount with Reverse Configuration would be a good option.

  • How can I be sure the universal mount is compatible with my vehicle before placing an order?

    There is a compatibility guide available in the “Resources” section of this product page. The compatibility guide will show you how to measure your passenger seat bolts and surrounding area to make sure the mount can be installed in your vehicle.

  • Will this fit on my 2016 Chevy Silverado HD2500?

    No, RAM-VB-193-SW1 is the correct laptop mount for a 2016 Chevy Silverado HD.
