RAM^® Vertical Drill-Down Laptop Mount
Part #: RAM-VB-181-SW1 UPC: 793442920820 Patented Features RAM^® drill down base offers low-profile mounting; telescoping pole allows for height adjustments Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops Made of powder-coated steel and marine-grade aluminum Backed by a lifetime warranty

Product Information

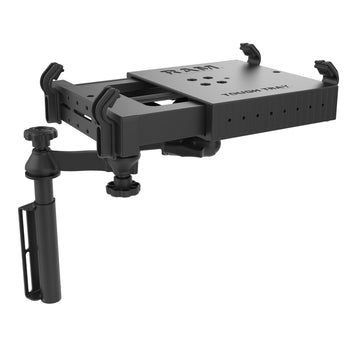

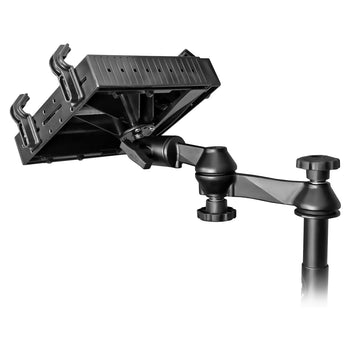

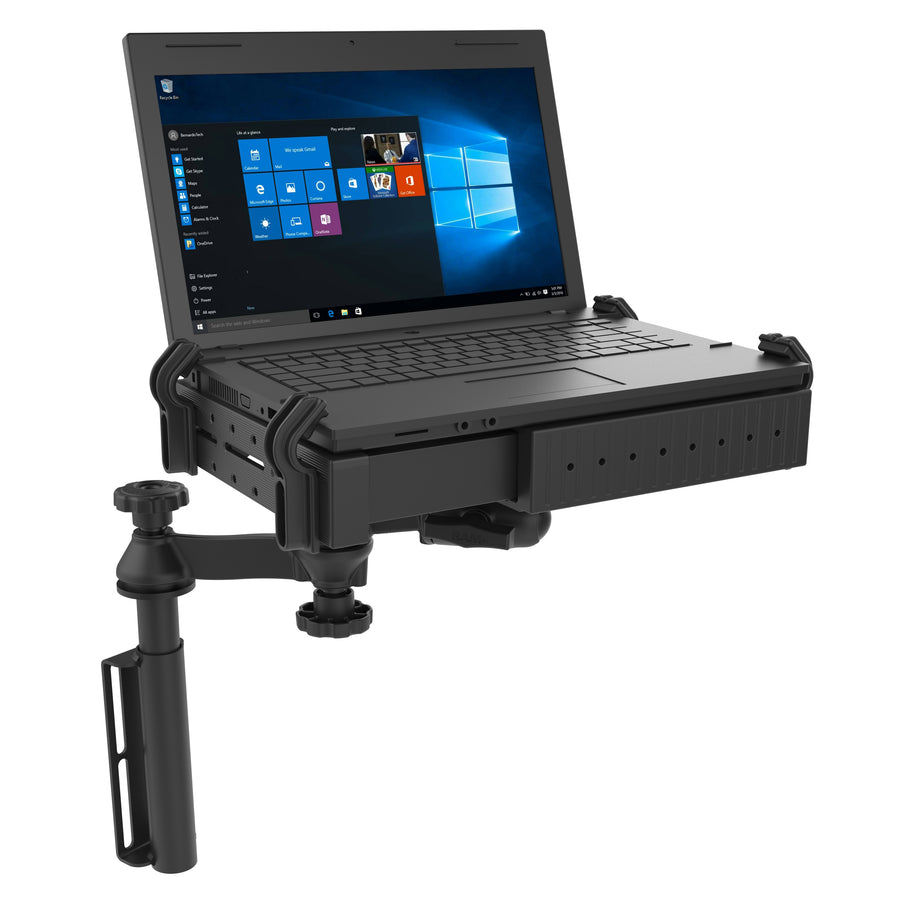

Overview	This drill-down laptop stand system installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM^® Tough-Tray^™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Product Information

Overview

This drill-down laptop stand system installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM^® Tough-Tray^™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

Specifications
hardware included	Assembly Hardware (2) Backing Plates (4) 1/4"-20 x 1" Hex Bolts (4) 1/4"-20 Hex Nuts (8) 1/4" Flat Washers (4) 1/4" Lock Washers (2) #10-24 x 3/4" Machine Screws (2) #10 Fender Washers (1) 1/4"20 x 3/4" Machine Screw
tray dimensions	Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125"
hole pattern	See Drawing
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum High strength composite
packaging type	Box
Weight	10.23 lb

RAM<sup>®</sup> Vertical Drill-Down Laptop Mount

Questions about our products? Email us for support.

Patented

RAM^® Vertical Drill-Down Laptop Mount

Part#: RAM-VB-181-SW1

UPC: 793442920820

$259.99

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Kit Components

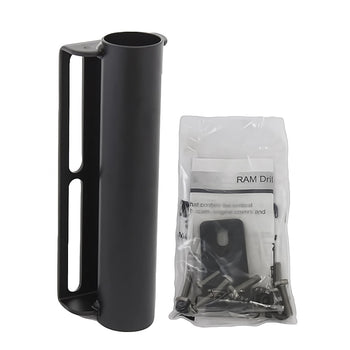

RAM-VB-181:RAM-VB-181_1:RAM Vertical Drill-Down Vehicle Base

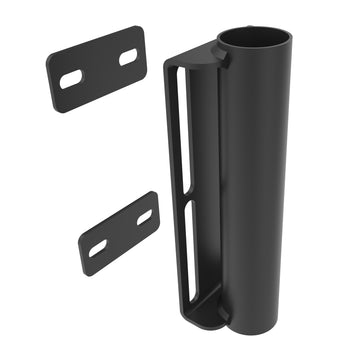

RAM^® Vertical Drill-Down Vehicle Base RAM-VB-181 $47.49

RAM-VP-SW1-8:RAM-VP-SW1-8_1:RAM 8" Upper Pole with Double Swing Arms & Round Plate

RAM^® 8" Upper Pole with Double Swing Arms & Round Plate RAM-VP-SW1-8 $143.49

RAM-234-3:RAM-234-3_1:RAM Tough-Tray<sup>™</sup> Spring Loaded Laptop Holder

RAM^® Tough-Tray^™ Spring Loaded Laptop Tray RAM-234-3 $73.49

Overview

Features

RAM^® drill down base offers low-profile mounting; telescoping pole allows for height adjustments
Dual articulating swing arm allows for ideal placement; universal laptop tray accommodates most laptops
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) Backing Plates
(4) 1/4"-20 x 1" Hex Bolts
(4) 1/4"-20 Hex Nuts
(8) 1/4" Flat Washers
(4) 1/4" Lock Washers
(2) #10-24 x 3/4" Machine Screws
(2) #10 Fender Washers
(1) 1/4"20 x 3/4" Machine Screw

tray dimensions:

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern:

See Drawing

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type:

Box

Weight:

10.23 lb

Print

Instructions

Tough-Tray Assembly Guide

RAM No-Drill Seat Bases Instructions 181 Series

Upper Tele-Pole Assembly Guide

Documents

Drawing File - Vertical Drill-Down Vehicle Base

Questions & Answers

Have a Question?

Ask a Question

Can someone sit in the passenger seat while this mount is installed?

Technically someone can still sit in the passenger seat when this mount is installed but the mount does take up a considerable amount of leg room and it does make the passenger seat much less comfortable. If you want to be able to quickly remove the mount to make room for a passenger you could install our Remove-A-Pole base (RAM-VB-REM1).
