RAM® No-Drill™ Mount for Heavy Duty Trucks with VESA Plate - C Size
Part #: RAM-VB-168-246 UPC: 793442916816 Patented

Product Information

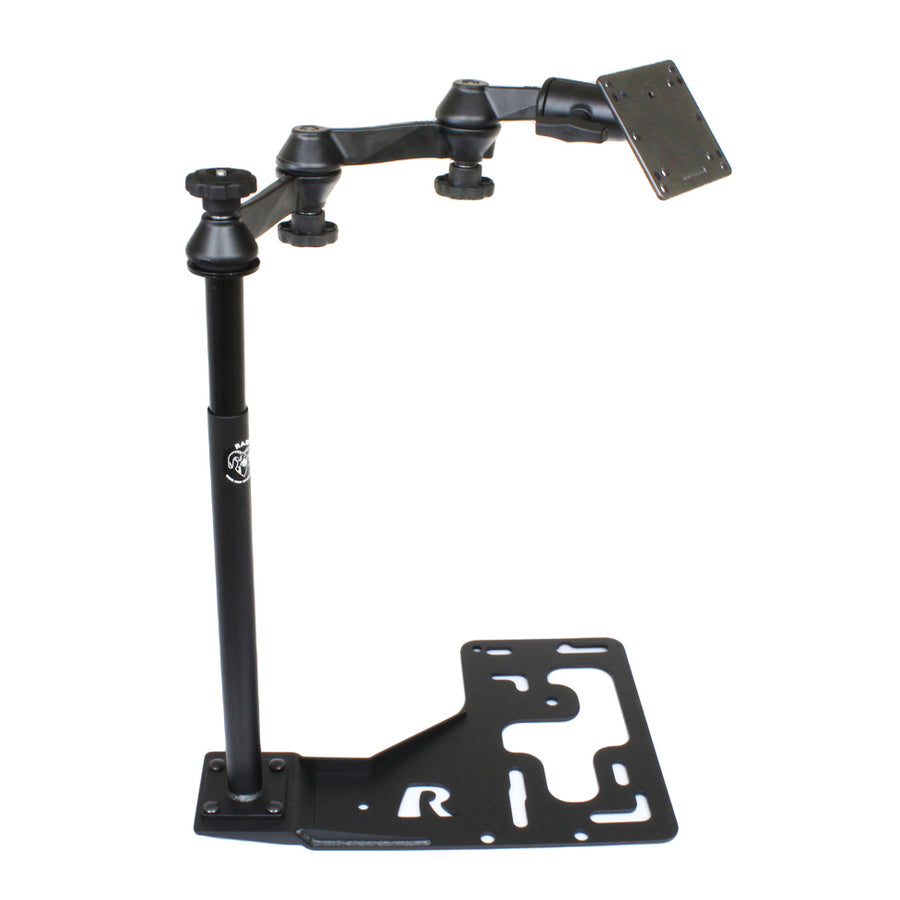

Overview	The RAM® No-Drill™ mounting base features a heavy-duty steel mounting base custom designed to fit these vehicles perfectly. Using the passenger side seat rail bolts as attachment points, existing hardware is used to secure the base in the vehicle. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The triple swing arm provides articulation and 18 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. This vehicle base kit comes with the VESA plate that includes 75mm x 75mm and 100mm x 100mm hole patterns.

Product Information

Overview

The RAM® No-Drill™ mounting base features a heavy-duty steel mounting base custom designed to fit these vehicles perfectly. Using the passenger side seat rail bolts as attachment points, existing hardware is used to secure the base in the vehicle. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The triple swing arm provides articulation and 18 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. This vehicle base kit comes with the VESA plate that includes 75mm x 75mm and 100mm x 100mm hole patterns.

Specifications
hardware included	Assembly Hardware
hole pattern	See Drawing
ball size	C Size (1.5")
materials	Powder coated steel Marine grade-aluminum
packaging type	Box
Weight	20.42 lb

Patented

RAM® No-Drill™ Mount for Heavy Duty Trucks with VESA Plate - C Size

Part#: RAM-VB-168-246

UPC: 793442916816

Ball Size
Arm Sizes
