Patented

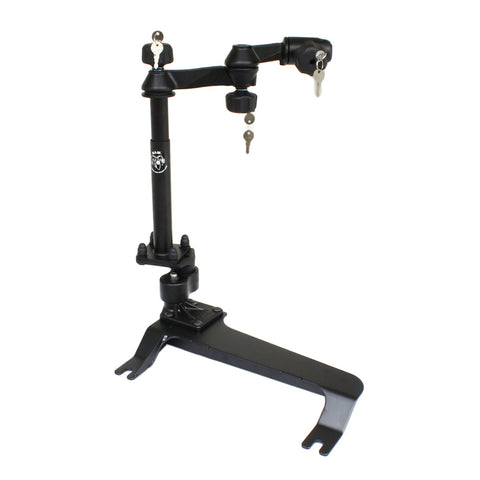

RAM® No-Drill™ Locking Mount for the '00-06 Chevy Avalanche + More

Part#: RAM-VB-131A-DAT1
UPC: 793442924545

Kit Components

Previous Slide Next Slide
$371.99
RAM® Tough-Tray™ III Spring Loaded Laptop Tray

RAM® Tough-Tray™ III Spring Loaded Laptop Tray

$118.49

hardware included:

Assembly Hardware
(6) Keys
Foot Stabilizer

hole pattern:

Seat Bolt Distance: 15" center to center

ball size:

C Size (1.5")

materials:

Powder coated steel
Marine-grade aluminum

packaging type:

Box

Weight:

15.0 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

RAM No-Drill Seat Bases Instructions 131 SeriesA
RAM® Adjust-A-Pole™ Instructions
Upper Tele-Pole Assembly Guide

Documents

On Road Catalog
Transportation Catalog

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® No-Drill™ Locking Mount for the '00-06 Chevy Avalanche + More
$371.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size 1" ball
  • C Size — this product 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C — this product1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
