$70.99

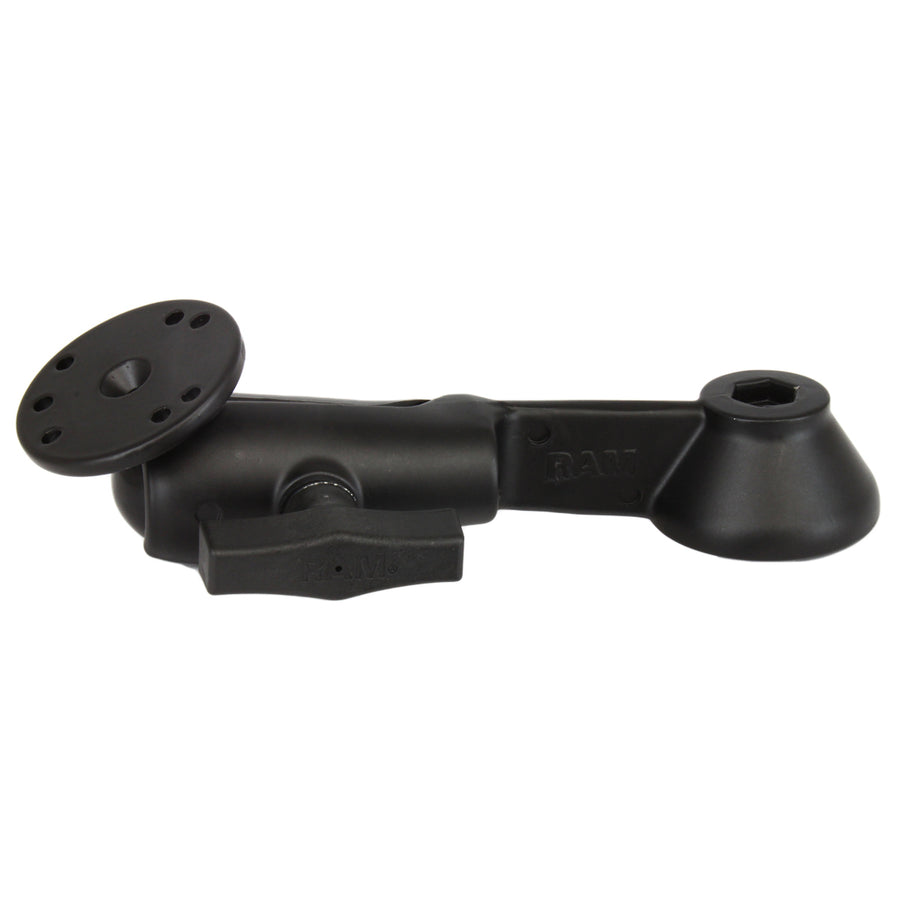

RAM® 6" Single Swing Arm with Socket & Ball
Part#:RAM-VB-109-5U UPC:793442906879
Overview
The RAM-VB-109-5U consists of a 6" long single swing arm and 2.5" round base that contains the universal AMPs hole pattern.

hardware included

(1) 3/8"-16 x 4" Hex Bolt
(1) 2" Rubber Washer
(1) 1.25" Fender Washer
(2) Steel Washers
(1) Thrust 6-Bearing Washer
(1) 3/8"-16 Knob

product dimensions

Swing Arm Length: 6"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

plate size

2.5" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

2.04 lb

Components

RAM® 6" Single Swing Arm with Socket - No Ball RAM-VB-109-2U $55.99
RAM® Round Plate with Ball - C Size RAM-202U $18.49
