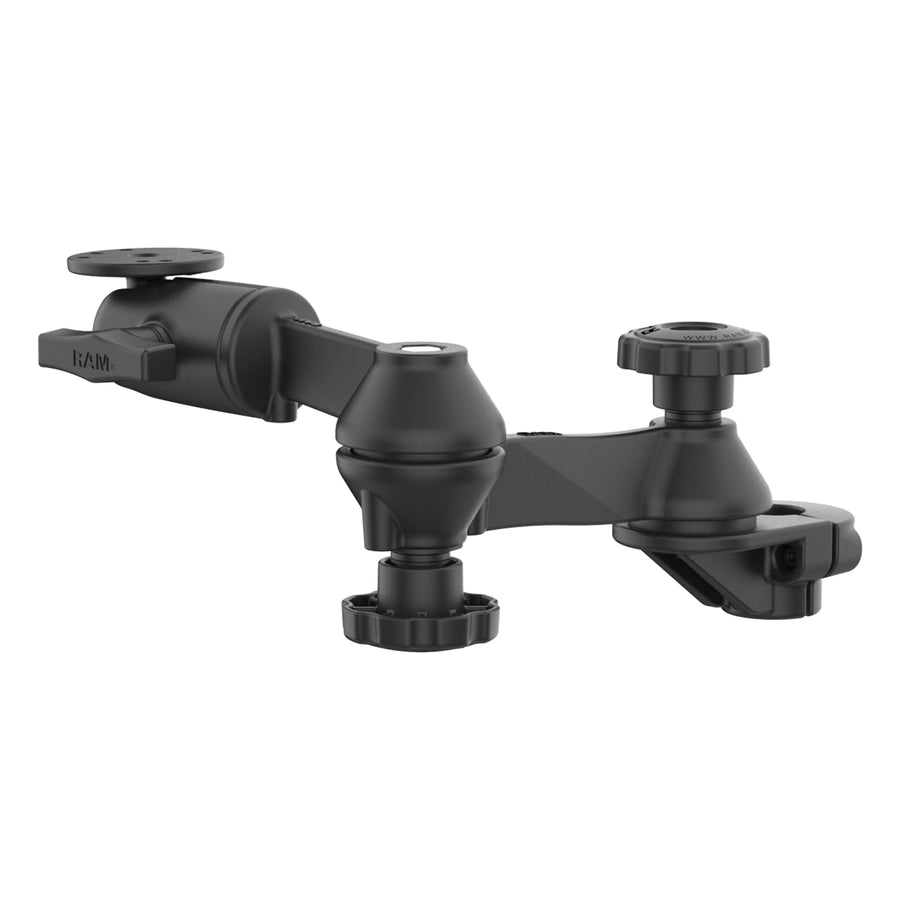

RAM® 90-Degree Dual Swing Arm Mount with Ball for Tough-Bar™

Part #: RAM-TB-471-SW2BU UPC: 793442028120 Patented

Features

Made for laptop mounting, two 6" swing arms provide precise single-axis pivoting and full 360° horizontal rotation
Integrated Collar-Lock™ system prevents over-rotation to protect devices and vehicle interiors during adjustment or impact
Dual articulating swing arms allow for ideal device placement
Made of powder-coated steel and marine-grade aluminum
Backed by a lifetime warranty

RAM® 90-Degree Dual Swing Arm Mount with Ball for Tough-Bar™

Product Information

Overview

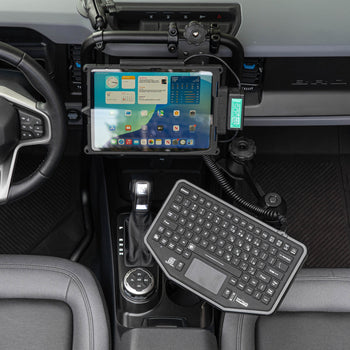

The RAM® 90-Degree Dual Swing Arm Mount with Ball for Tough-Bar™ (RAM-TB-471-SW2BU) is a versatile attachment designed to mount a laptop or keyboard to the RAM® Tough-Bar™ with smooth, controlled adjustability. Each swing arm offers 360° of horizontal rotation at its joint, allowing you to move a laptop aside or bring it closer for comfortable use. The integrated C size RAM® ball and socket connection provides fine tilt adjustments, enabling precise positioning for typing or viewing. Constructed from powder-coated marine-grade aluminum, this mount delivers the strength and stability needed to support heavy, ruggedized laptops while minimizing vibration during use. Ideal for fleet, commercial, and personal vehicles, the RAM® 90-Degree Dual Swing Arm Mount combines durability, smooth articulation, and professional-grade performance for any Tough-Bar™ setup.

Specifications
hardware included	Assembly Hardware
product dimensions	Length: 13.76" (center clamp to center socket)
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	3.15 lb

Patented

RAM® 90-Degree Dual Swing Arm Mount with Ball for Tough-Bar™

Name: RAM® 90-Degree Dual Swing Arm Mount with Ball for Tough-Bar™
Brand: RAM Mounts
SKU: RAM-TB-471-SW2BU
Price: 138.49 USD
Availability: InStock

Part#: RAM-TB-471-SW2BU

UPC: 793442028120

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$138.49

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 3.56"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 3.12"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
