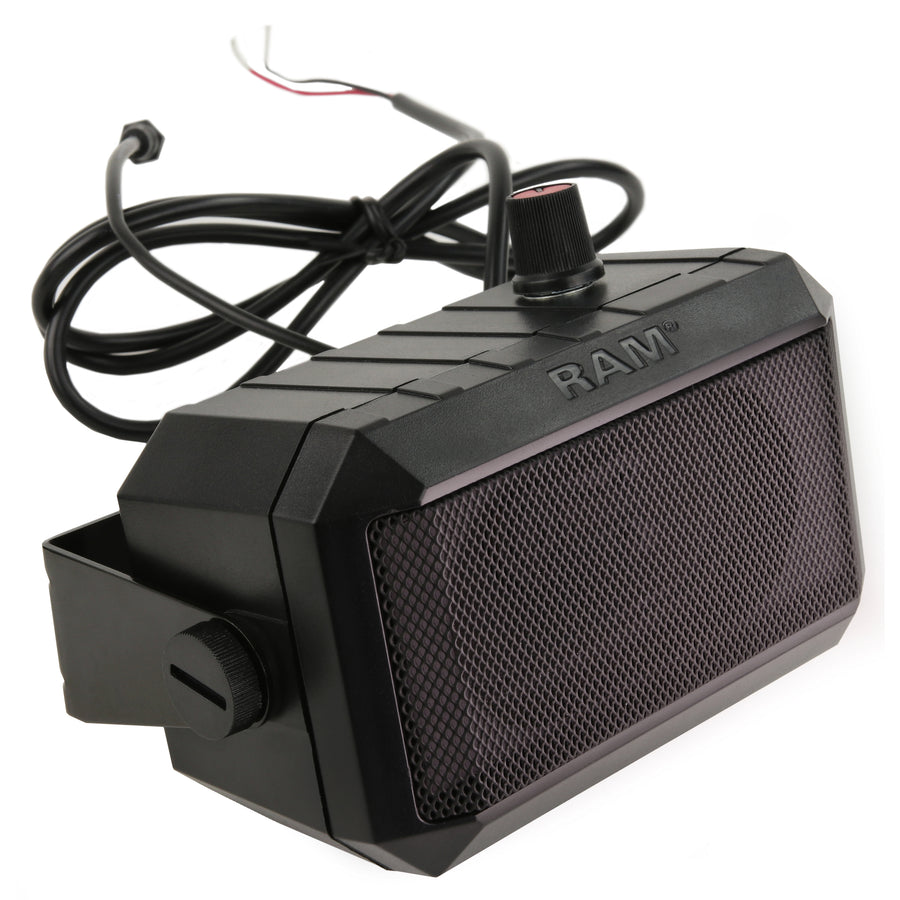

GDS® Audio™ Amplified Speaker
Overview
The GDS® Audio™ Amplified Speaker (RAM-SPEAK-A01) delivers powerful, reliable sound for in-cab communication—no batteries required. The speaker can be hardwired into the cab of your vehicle for power using the connected bare wires, while the included 35mm audio jack plugs directly into your device. An adjustable knob allows for up to 93dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS® Ecosystem™, the speaker can be mounted to any GDS® vehicle dock using the RAM® short bracket adapter or RAM® standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS® vehicle dock.
hardware included:
Mounting Bracket
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
speaker specifications:
Independently adjustable volume knob
Max volume level: 93dB
8Ω / 10W rated speaker
packaging type:
Box
input voltage:
9-26VDC
power output:
Peak Power: 10W
RMS Power: 8W
input cable length:
1.15 Meter red/black power cable
output cable length:
150mm long audio cable with 3.5mm mono plug jack
operating temperature:
-20°C to +80°C
storage temperature:
-40°C to +85°C
regulatory:
Over current protection, short circuit protection and over volatage protection
certifications:
FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
Warranty:
3 year warranty
Weight:
0.84 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
I need a speaker to work with a communications receiver with a 3.5mm speaker jack, will this one work? Or is the wiring somehow different for the "GDS Tech" application?
This speaker is not GDS specific. It can be used with any 3.5mm jack.
