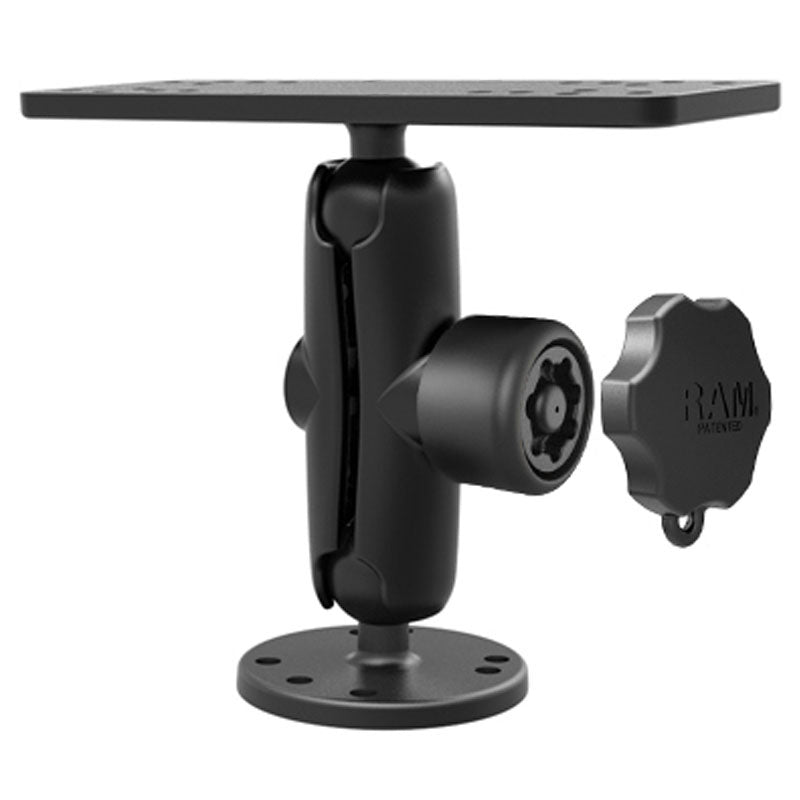

RAM® Pin-Lock™ Marine Electronic Mount - B Size Medium
$50.99
Medium Arm, Marine-Grade Aluminum, Locking Knob
The RAM-S-B-111U consists of a 2.5" diameter round base, SHORT LENGTH double socket arm, 6.25" x 2" rectangle base, RAM mixed combination Pin-Lock™ security nut and key knob. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
RAM® Pin-Lock™ Marine Electronic Mount - B Size Medium
Overview
The RAM-S-B-111U consists of a 2.5" diameter round base, SHORT LENGTH double socket arm, 6.25" x 2" rectangle base, RAM mixed combination Pin-Lock™ security nut and key knob. The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
hardware included
(1) RAM Pin-Lock Security Key
product dimensions
Overall Height: 5"
socket to socket length
3"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size
Top Plate: 6.25" x 2"
Bottom Plate: 2.5"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
0.72 lb
