RAM® Tough-Mag™ 48MM 4-Point Magnetic Mounting Base

Part#: RAM-MAG48-4SU
UPC: 793442031946
$575.49

Overview

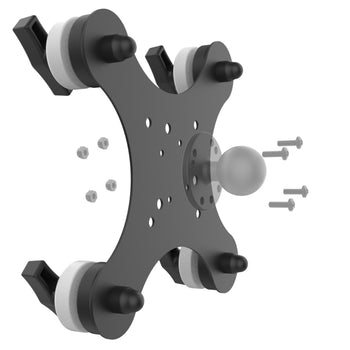

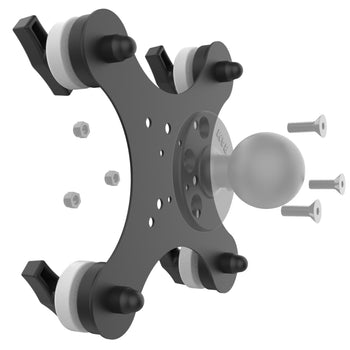

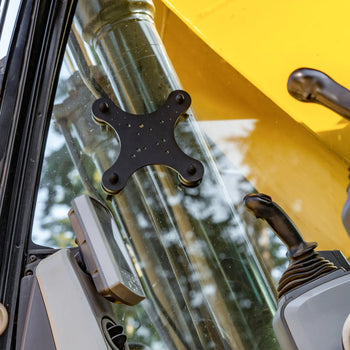

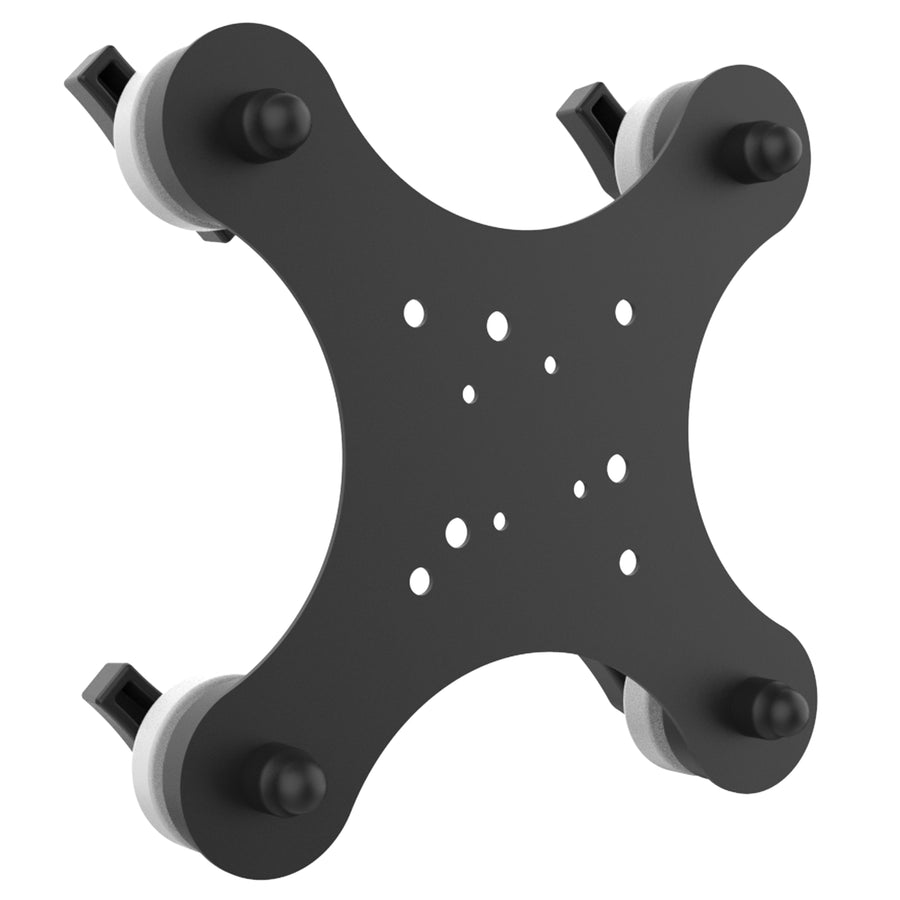

The RAM® Tough-Mag™ 48MM 4-Point Magnetic Mounting Base (RAM-MAG48-4SU) consists of an aluminum plate with four magnetic ends and four 48mm external magnets for mounting any flat glass surface, like windows. The plate contains pre-drilled 4-hole AMPS and VESA patterns for attaching a recommended C, or D size drill-down ball base. The base is designed with rubber coated magnets to prevent scratching the mounting surface and reduce the impact of the jarring magnetic pull. Each external magnet includes a handle in order to easily install the base to a window. Compatible with any sturdy, flat surface up to 6mm in thickness.

Features

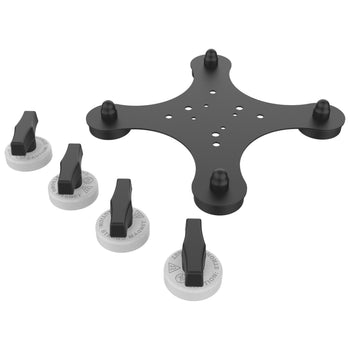

  • Four-point aluminum plate with 2 sets of 4 rubber coated external magnets for attaching to windows up to 6mm in thickness
  • 4-hole AMPS and VESA patterns for attaching C or D size RAM® drill-down ball bases
  • External magnets include handles for ease of install
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(3) 5/16"-18 x 1" Machine Screws
(3) 5/16" Nylock Nuts

product dimensions:

Overall Length: 8.99"
Overall Width: 8.99"
Overall Thickness (inside surface): 1.64"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA

packaging type:

Poly Bag

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

RAM® Tough-Mag™ 4-Point Magnetic Base Instructions
