Overview

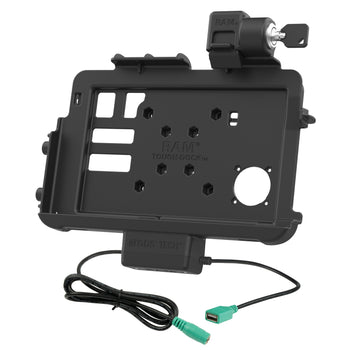

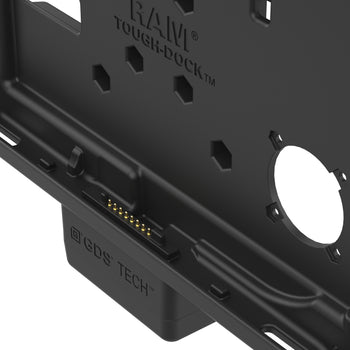

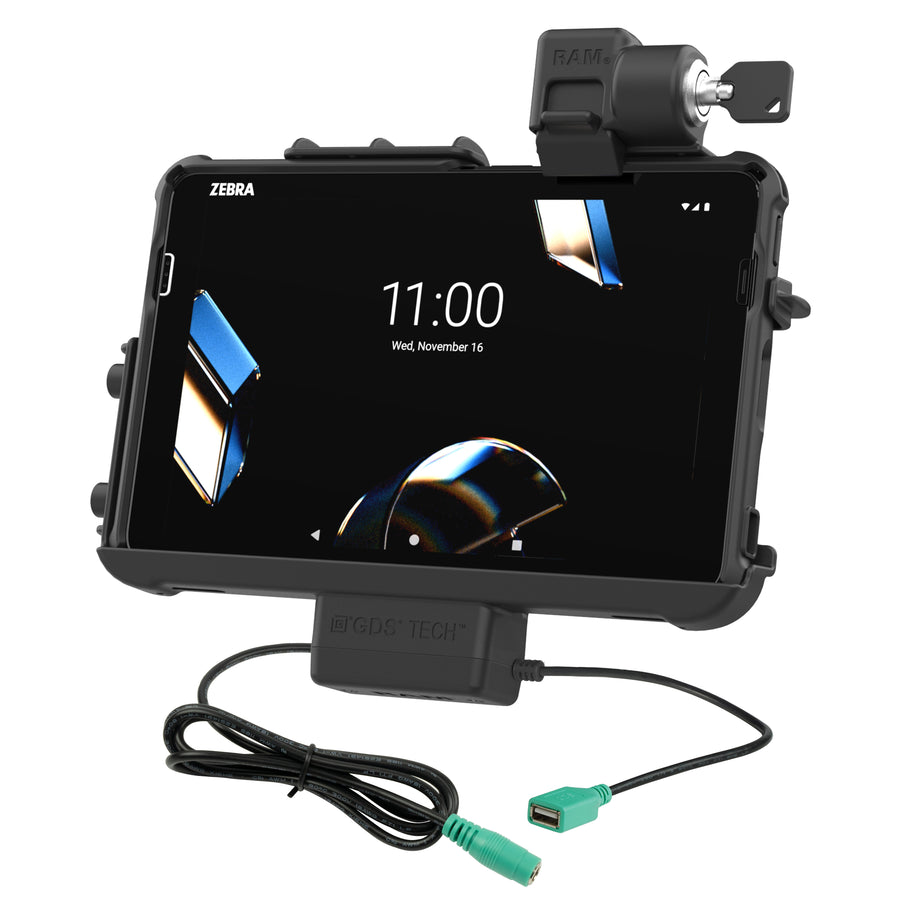

The Locking RAM® Thin-Dock™ + Data for Zebra ET401 10" (RAM-HOL-ZE47PDLU) delivers a low-profile, 2.45"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets, connecting directly to the tablet's integrated pogo pins to ensure a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock™ keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock’s USB Type-C connector. Connect a mouse, keyboard, or printer using the peripheral USB-A connector. The design also maintains access to the tablet’s side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM® C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM® Vent-Temp™, a temperature control accessory, and the RAM® NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM® 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories.
Features
- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45
- Slim-profile design at 2.45" depth with metal reinforcement plate
- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability

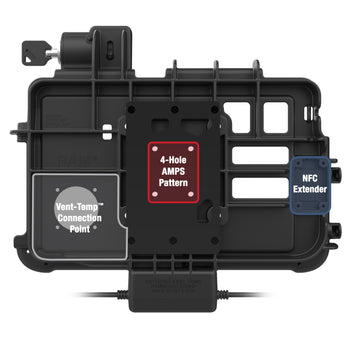

- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
hardware included:
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(2) Cable Clamps
hole pattern:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
12V @ 2A
power output:
24W
input connector:
5.5mm DC Connector
input cable length:
1 Meter
output connector:
USB 2.0 Type A
output cable length:
225mm
peripheral output:
500mA
transfer speed:
12Mbps
certifications:
RoHS
WEEE
CE
FCC
IC
RCM
Warranty:
3 year warranty
Weight:
1.84 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
