Overview

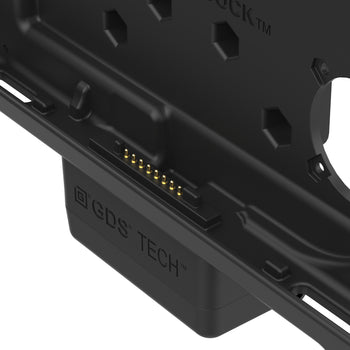

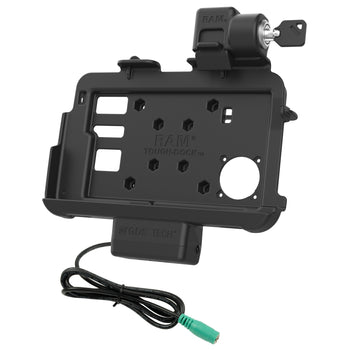

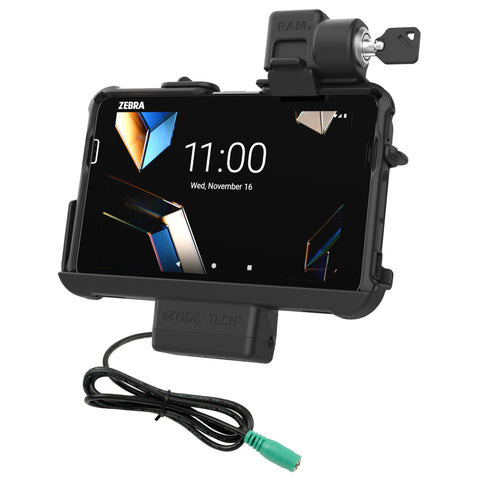

The Locking RAM® Thin-Dock™ for Zebra ET401 & ET4x 8" (RAM-HOL-ZE46PLU) delivers a low-profile, 2.44"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets, connecting directly to the tablet's integrated pogo pins to ensure a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock™ keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock’s USB Type-C connector. The design also maintains access to the tablet’s side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support OEM accessories like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM® C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM® Vent-Temp™, a temperature control accessory, and the RAM® NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM® 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories.
Features
- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45

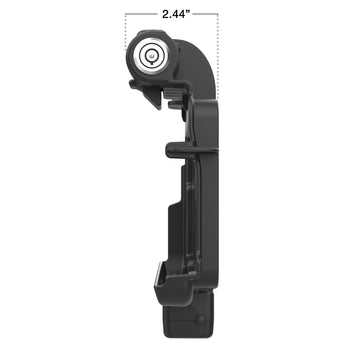

- Slim-profile design at 2.44" depth with metal reinforcement plate

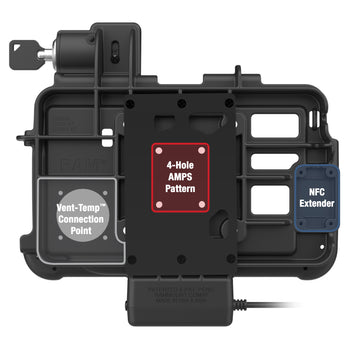

- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
hardware included:
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp
hole pattern:
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials:
High strength composite
packaging type:
Poly Bag
output voltage:
12V @ 2A
power output:
24W
input connector:
5.5mm DC Connector
input cable length:
1 Meter
certifications:
RoHS
WEEE
CE
FCC
IC
RCM
Warranty:
3 year warranty
Weight:
1.57 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
$261.99
