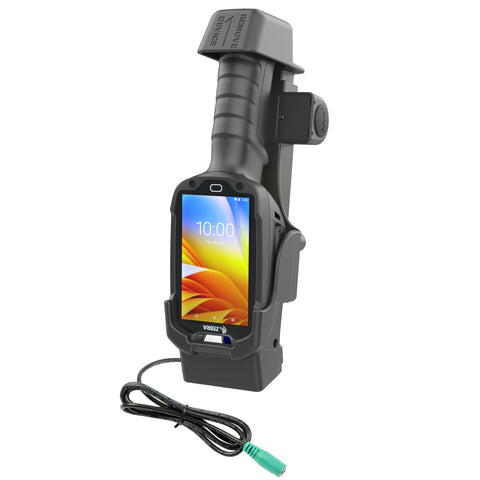

RAM® Powered Dock for Zebra TC8300 | |
---|---|
Part #:
RAM-HOL-ZE26PU
UPC:
793442017223
Patented & Pats. Pend.
Features
|
![]() |
Product Information | |
---|---|
Overview | This Powered Spring-Loaded Dock (RAM-HOL-ZE26PU) features a form-fitting design specifically for the Zebra TC8300. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM® Compatible™ equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect TC8300 solution. |
Specifications | |
---|---|
hardware included | (2) #8-32 x 5/8" Machine Screws (2) #8-32 Nylock Nuts |
product dimensions | Overall Height: 10.36" Overall Width: 3.25" Overall Depth: 4.08" |
hole pattern | 2-Hole AMPS: 1.912" |
materials | High strength composite |
packaging type | Poly Bag |
Warranty | 3 year warranty |
Weight | 0.81 lb |
Compatible Devices
Zebra
TC8300
Compatible Devices
Zebra
TC8300

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-HOL-ZE26PU!
We'll email you once the item is available.
Overview
This Powered Spring-Loaded Dock (RAM-HOL-ZE26PU) features a form-fitting design specifically for the Zebra TC8300. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM® Compatible™ equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect TC8300 solution.
Features
- Form-fit powered dock designed specifically for the Zebra TC8300 Touch Computer; includes a single USB Type-A connector for peripheral support
- Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device
- Compatible with RAM® 2-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
hardware included:
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions:
Overall Height: 10.36"
Overall Width: 3.25"
Overall Depth: 4.08"
hole pattern:
2-Hole AMPS: 1.912"
materials:
High strength composite
packaging type:
Poly Bag
Warranty:
3 year warranty
Weight:
0.81 lb
