RAM® Powered Dock + Single USB-A for Zebra TC8300 - Heated Pins
$243.99
Power + Peripheral, Heated Pins
Features
- Form-fit powered dock designed specifically for the Zebra TC8300 Touch Computer; includes a single USB Type-A connector for peripheral support
- Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device

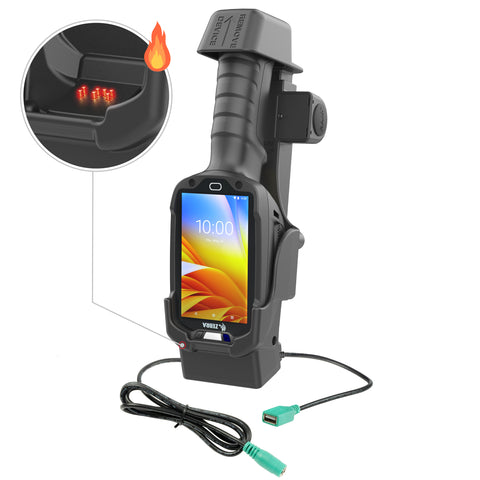

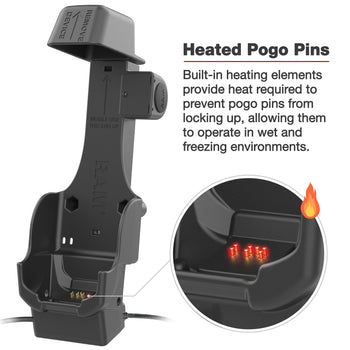

- Heating elements provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments.
- Compatible with RAM® 2-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
This Power + Data Spring-Loaded Dock with Heated Pogo Pins (RAM-HOL-ZE26PDHU) features a form-fitting design specifically for the Zebra TC8300. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single peripheral allows for connection to one (1) input device. Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM® Compatible™ equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect TC8300 solution.
RAM® Powered Dock + Single USB-A for Zebra TC8300 - Heated Pins
Overview
This Power + Data Spring-Loaded Dock with Heated Pogo Pins (RAM-HOL-ZE26PDHU) features a form-fitting design specifically for the Zebra TC8300. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single peripheral allows for connection to one (1) input device. Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM® Compatible™ equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect TC8300 solution.
hardware included
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions
Overall Height: 10.36"
Overall Width: 3.25"
Overall Depth: 4.08"
hole pattern
2-Hole AMPS: 1.912"
materials
High strength composite
packaging type
Poly Bag
peripheral output
500mAh
Warranty
3 year warranty
Weight
0.81 lb
