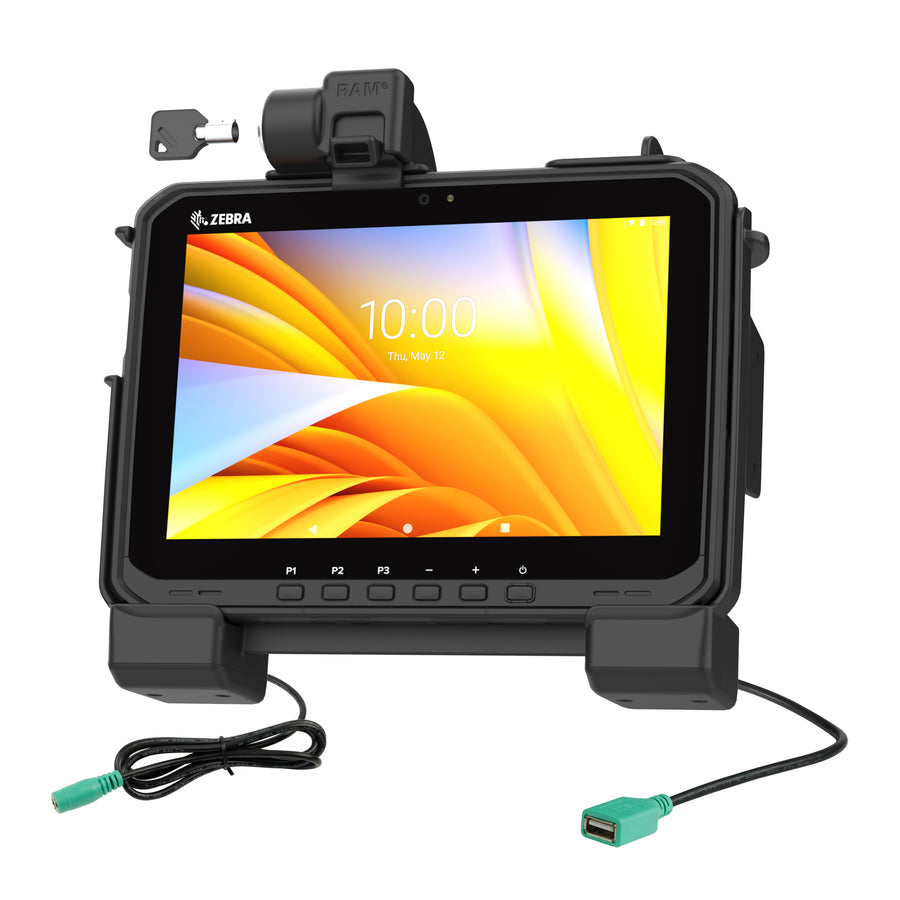

RAM® Power + Data Locking Dock for Zebra ET6x
$370.99
Power + Single Peripheral, Locking
Features

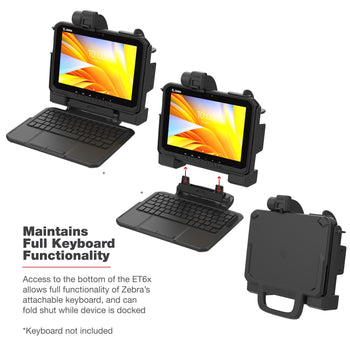

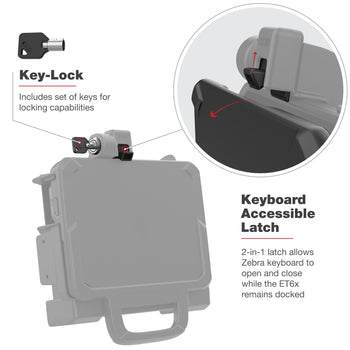

- Key-locking form-fit power + single USB Type-A dock designed specifically for the Zebra ET60 & ET65 tablets; compatible with or without Zebra keyboard featuring unique 2-in-1 latch that secures the ET60/ET65 while allowing the keyboard to open and close freely

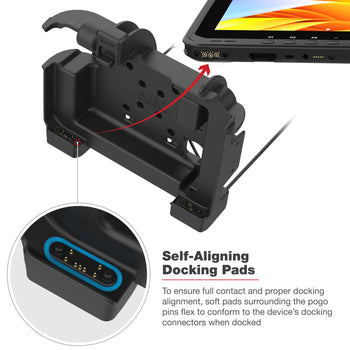

- Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience; pogo pins feature self-aligning docking pads that conform to the seated device; Single USB-A connector for adding a peripheral

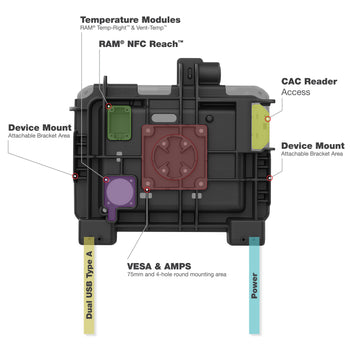

- Add-on accessory compatible including RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock
- Cut out on the side of the dock gives access to the Zebra CAC reader with the ability to open and close the CAC reader door
- Backed by a 3-year warranty
This key-locking power + Single USB Type-A RAM® Dock (RAM-HOL-ZE25PDLU) features a form-fitting design specifically for the Zebra ET60 & ET65 tablets. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single USB Type-A pigtail connector is provided for adding one additional peripheral. Special for this dock are new self-aligning docking pads that surround the pogo pins and conform to the tablet when seated in the dock to provide optimal contact, and prevent damage to the pins. Made for versatility out in the field, this dock supports the device with or without the attachable Zebra keyboard and features a unique 2-in-1 latch that both secures the tablet, and allows the keyboard to open and close independently. Additionally this dock is accessory-ready, compatible with the RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock. The cut out on the left side of the dock allows for easy access to the Zebra CAC reader with the ability to open and close the CAC reader door. Finish the solution by building your mount. These docks are RAM® Compatible™ equipped with 75mm VESA, or 4-hole AMPS patterns for adding a ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect ET60/ET65 solution. These thoughtfully designed features enable mobile workforces widely spread across industries including field/utility service, public safety, construction, and more.
RAM® Power + Data Locking Dock for Zebra ET6x
Overview
This key-locking power + Single USB Type-A RAM® Dock (RAM-HOL-ZE25PDLU) features a form-fitting design specifically for the Zebra ET60 & ET65 tablets. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. A single USB Type-A pigtail connector is provided for adding one additional peripheral. Special for this dock are new self-aligning docking pads that surround the pogo pins and conform to the tablet when seated in the dock to provide optimal contact, and prevent damage to the pins. Made for versatility out in the field, this dock supports the device with or without the attachable Zebra keyboard and features a unique 2-in-1 latch that both secures the tablet, and allows the keyboard to open and close independently. Additionally this dock is accessory-ready, compatible with the RAM® Vent-Temp™, RAM® Temp-Right™, RAM® NFC Extender, as well as two small device mounting areas on both the left and right side of the dock. The cut out on the left side of the dock allows for easy access to the Zebra CAC reader with the ability to open and close the CAC reader door. Finish the solution by building your mount. These docks are RAM® Compatible™ equipped with 75mm VESA, or 4-hole AMPS patterns for adding a ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect ET60/ET65 solution. These thoughtfully designed features enable mobile workforces widely spread across industries including field/utility service, public safety, construction, and more.
hardware included
(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8" Machine Screws
(2) #8-32 x 1/2" Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(8) 4" Zip Ties
(2) 7" Zip Ties
hole pattern
75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials
High strength composite
packaging type
Poly Bag
input connector
5.5mm DC Connector
input cable length
1 Meter
output connector
USB 2.0 Type A
output cable length
216mm
peripheral output
500mAh
transfer speed
12Mbps
certifications
RoHS
WEEE
CE
UKCA
Weight
2.18 lb
