Overview

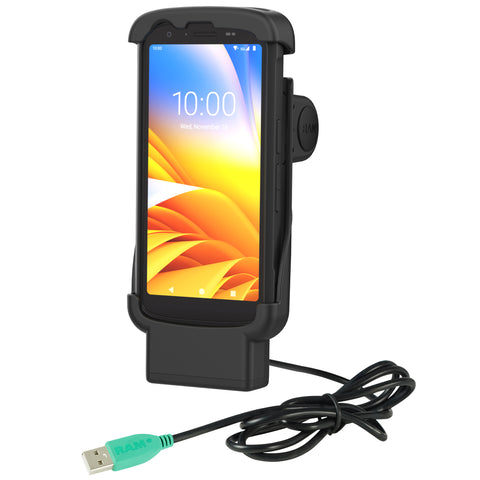

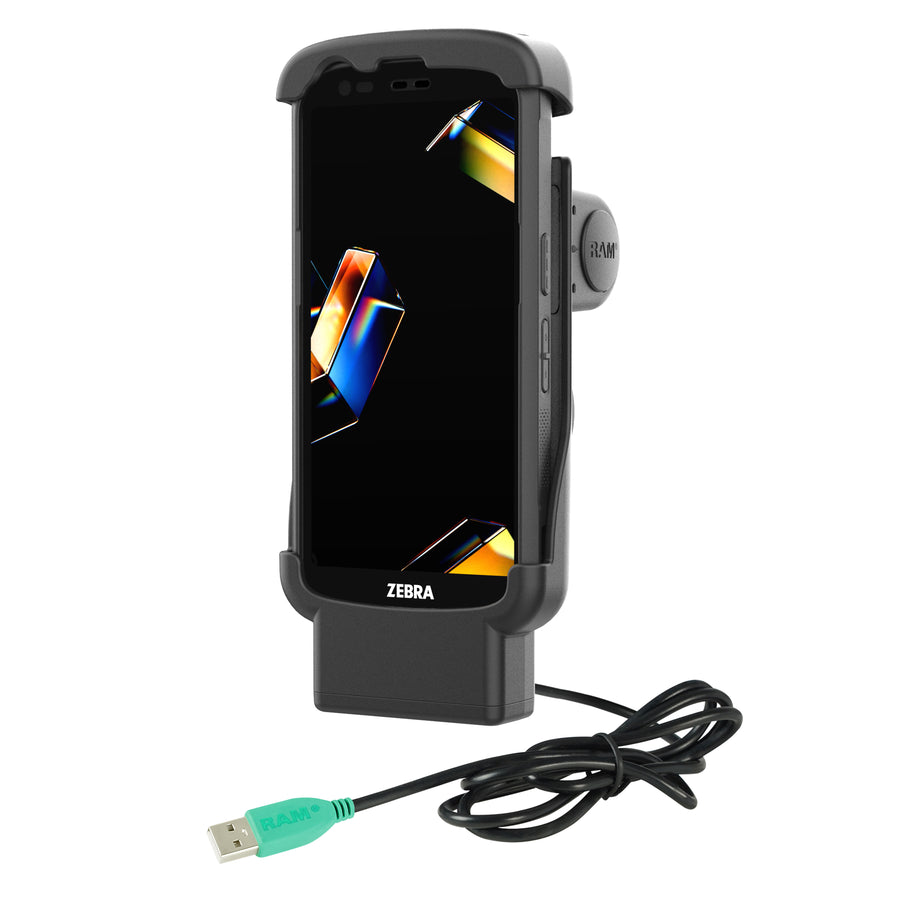

This spring-loaded, form-fit powered dock (RAM-HOL-ZE24PU) allows you to secure the Zebra TC22 and the TC27 handheld computer with the Rugged Boot installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap as well as the extended battery pack. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).
Features
- Spring-loaded form-fit powered dock perfectly secures the Zebra TC22 and TC27 handheld computer with Rugged Boot; provides power through 1.25-meter long USB Type-A connector
- Utilizies pogo pin docking contacts to provide charging capabilities to the device
- Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a 3-year warranty
hardware included:
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions:
Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"
hole pattern:
2-Hole AMPS: 1.912"
materials:
High strength composite
packaging type:
Poly Bag
input connector:
USB Type A
input cable length:
1.25 Meters
certifications:
RoHS
WEEE
CE
UKCA
Warranty:
3 year warranty
Weight:
0.58 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
$128.49
$128.49
