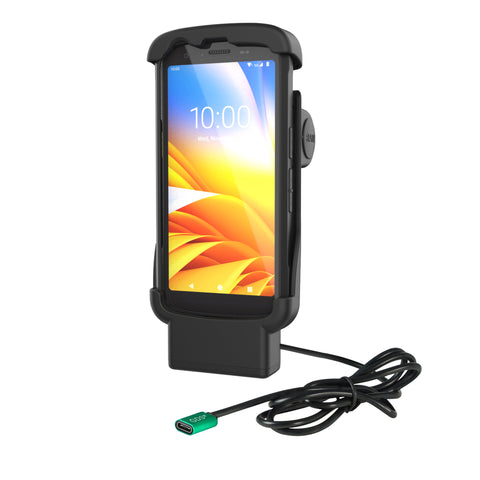

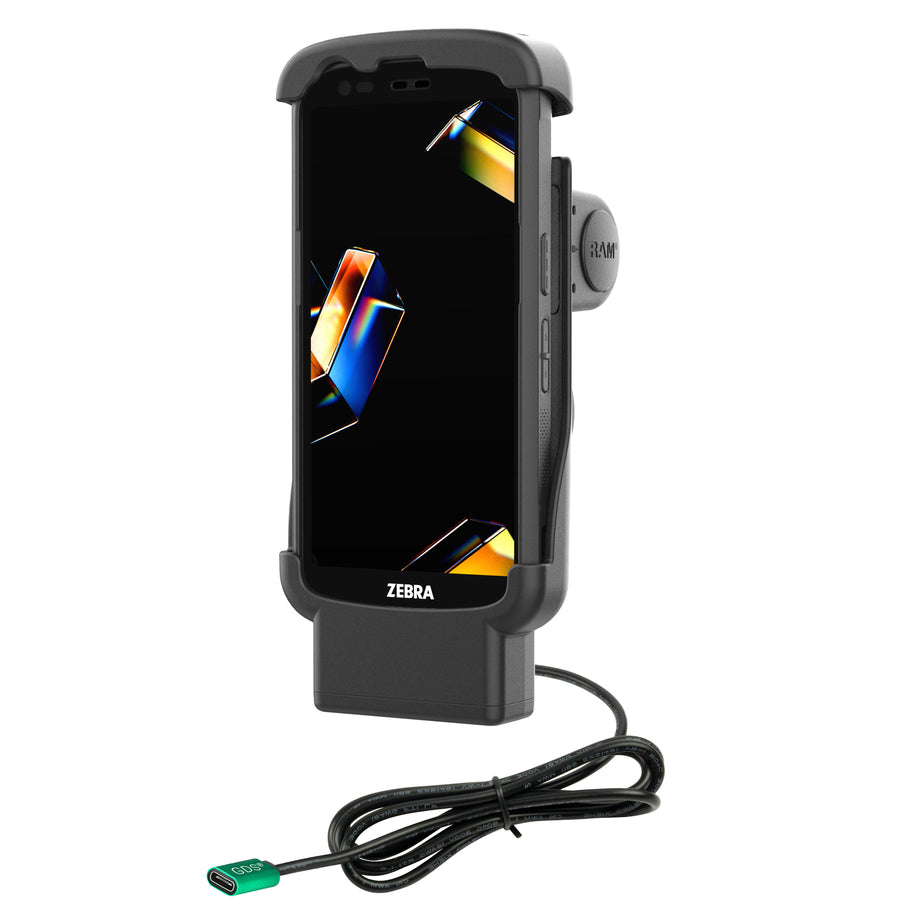

RAM® Form-Fit USB-C Dock for Zebra TC22 & TC27 with Boot
Overview

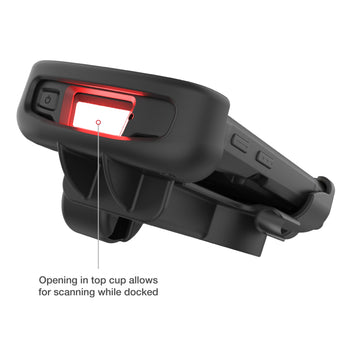

The RAM® Form-Fit USB-C Dock for Zebra TC22 & TC27 with Boot (RAM-HOL-ZE24-CU) is rugged dock that will meet and exceed the demands of modern workflows, featuring a USB-C connection tested for more than 250,000 cycles. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The back cavity of the dock accommodates ergonomic accessories secured to the back of the device. An integrated cutout on the top allows for the ability to access buttons, ports, and scanner without removing the device from the dock. Complete the solution by building your mount—this holder is RAM® Compatible™ featuring a 2-hole AMPS pattern for adding a diamond ball adapter.
Features

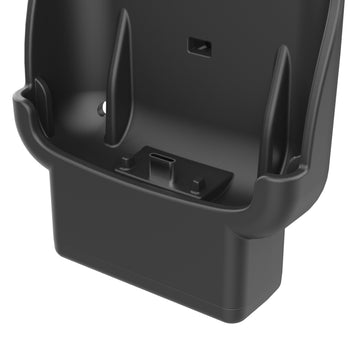

- Spring-loaded powered dock featuring USB-C device connection designed for the Zebra TC22 & TC27 with protective boot
- Back cavity accomodates OEM ergonomic accessories
- Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
hardware included:
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions:
Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"

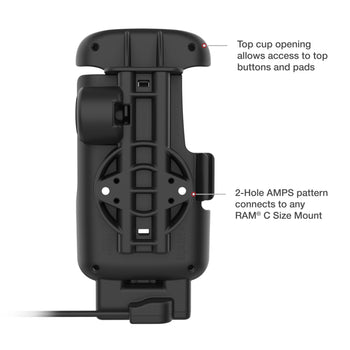

hole pattern:
2-Hole AMPS: 1.912"
materials:
High strength composite
packaging type:
Poly Bag
input connector:
USB Type-C
input cable length:
750mm
certifications:
RoHS
WEEE
CE
Warranty:
3 year warranty
