$89.99
without Boot, Non-Powered

Features

  • Spring-loaded form-fit dock perfectly secures the Zebra TC22 and TC27 handheld computer without Rugged Boot

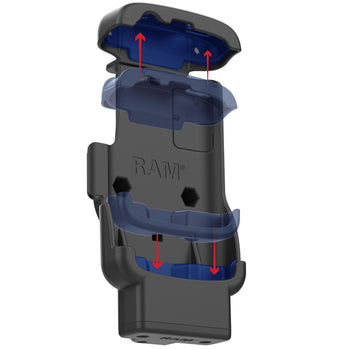

  • Includes top and bottom shim inserts for a form-fit docking experience when using the TC22/TC27 without the Rugged Boot
  • Integrated stylus holder on the side of the dock
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a lifetime warranty

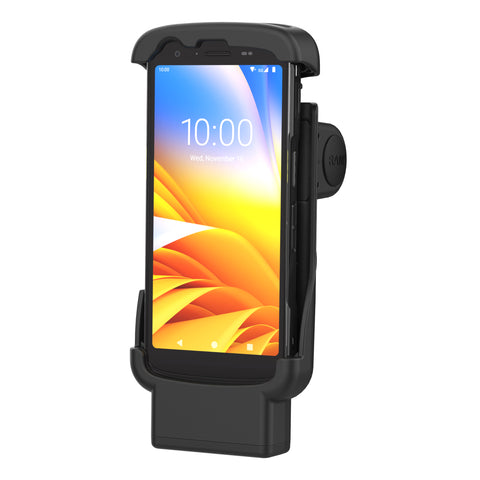

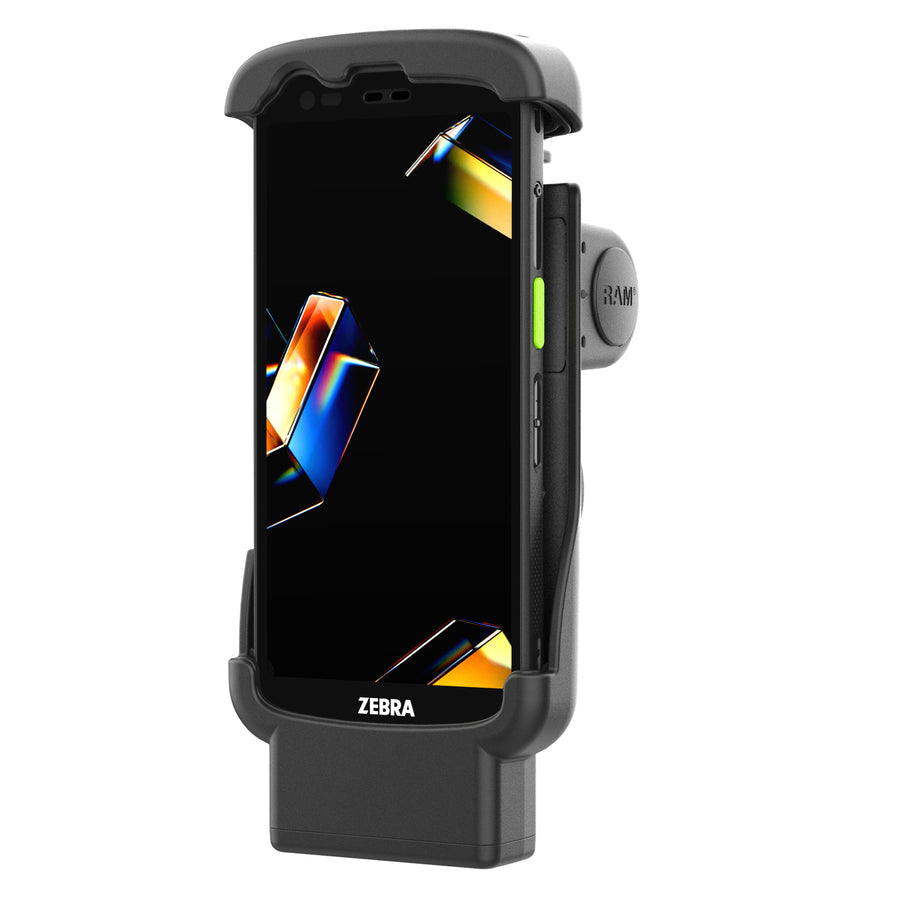

RAM® Form-Fit Holder for Zebra TC22 & TC27 without Boot
Part#:RAM-HOL-ZE24-1U UPC:793442016721 Patented
This spring-loaded, form-fit holder (RAM-HOL-ZE24-1U) allows you to secure the Zebra TC22 and the TC27 handheld computer without the Rugged Boot installed. Included with this dock are top and bottom shims to allow a form-fit when docking the device without the Rugged Frame installed. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts

product dimensions

Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

Warranty

3 year warranty

Weight

0.55 lb
