$365.99
Power + Dual USB-A Peripheral, Locking

Features

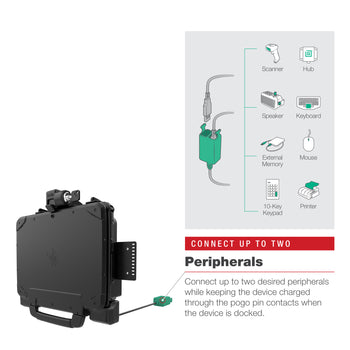

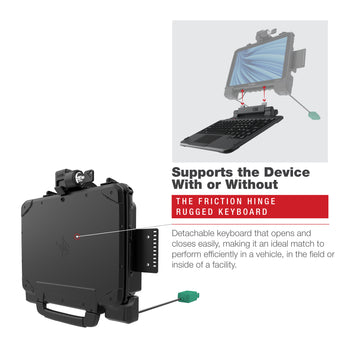

  • Powered, key-locking dock provides charging capabilities for the Zebra ET8x tablets, with or without Rugged Frame and Friction Hinge Rugged Keyboard via DC 5.5mm power jack; Dual USB-A connector for up to 2 peripherals

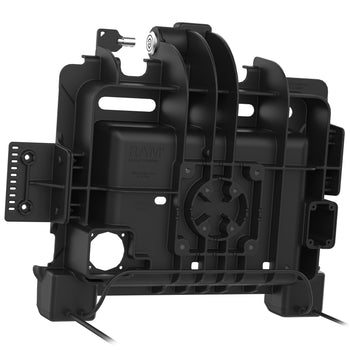

  • Two separate housings on the back of the dock allow for add-on modules such as the NFC Repeater, and temperature modules RAM® Vent-Temp™ and RAM® Temp-Right™

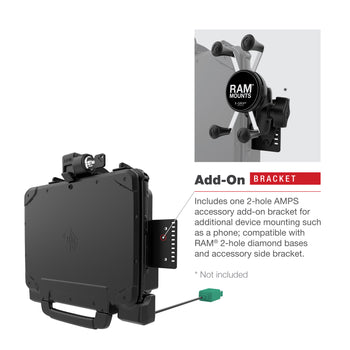

  • Built-in 2-hole accessory mounting plate for additional device mounting such as a phone, scanner, or NFC Repeater
  • Dock accommodates tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ accessories
  • Backed by a 3-year warranty

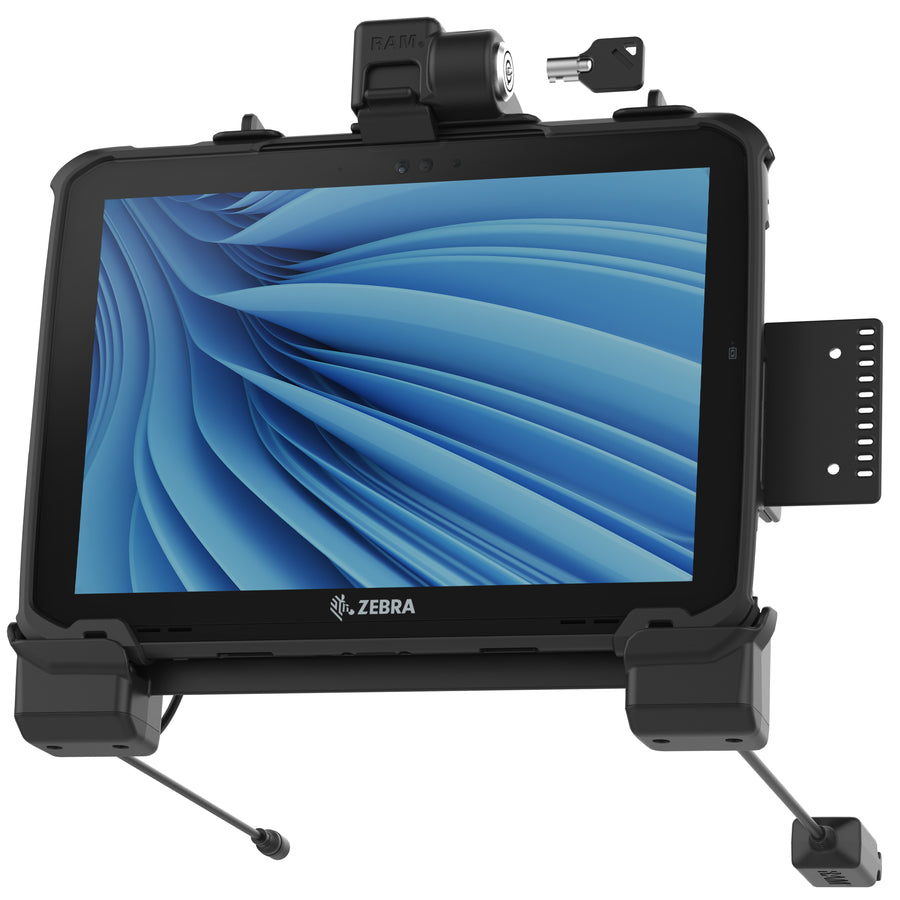

RAM® Power + Dual USB Locking Dock for Zebra ET8x 2-in-1 Tablet
Part#:RAM-HOL-ZE22PD2LU UPC:793442802713 Patented & Pats. Pend.
This key-locking power and dual data RAM® Dock (RAM-HOL-ZE22PD2LU) features a form-fit design specifically for the Zebra ET8x tablets. Made for versatility out in the field, this dock supports the device with or without the Rugged Frame, and accommodates the optional Friction Hinge Rugged Keyboard. Connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type-A cable. Thoughtfully designed, this dock also allows space for tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ ergonomic accessories. Embrace the weather with options to upgrade your dock with temperature modules. The RAM® Temp-Right™ can be added to regulate heat in extremely cold environments while the RAM® Vent-Temp™ utilizes the vehicle's A/C vents to direct hot or cold air to the ET8x. Take the solution a step further by upgrading to an add-on NFC Repeater module that extends the device's internal NFC reader. Pair this with the docks built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for mounting the NFC Repeater, or any other additional device such as a phone, scanner, or printer.

hardware included

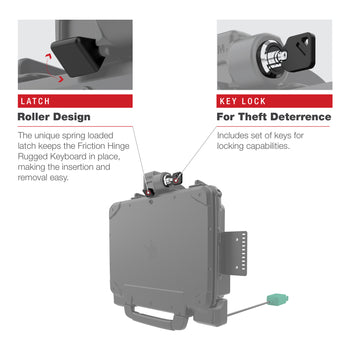

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8" Machine Screws
(2) #8-32 x 1/2" Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(8) 4" Zip Ties
(2) 7" Zip Ties

product dimensions

Overall Height: 11.85"
Overall Width: 12.75"
Overall Depth: 4.36"

hole pattern

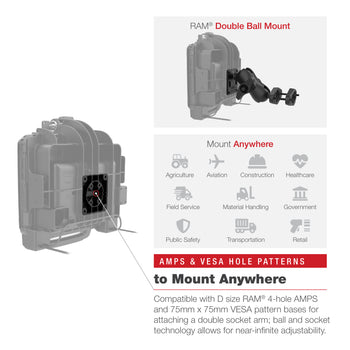

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input connector

5.5mm DC Connector

input cable length

1 Meter

output connector

(2) USB 2.0 Type A

output cable length

218mm

peripheral output

900mAh (per port)

transfer speed

12Mbps

certifications

RoHS
WEEE
FCC
CE
ICES
UKCA

Warranty

3 year warranty

Weight

2.75 lb
